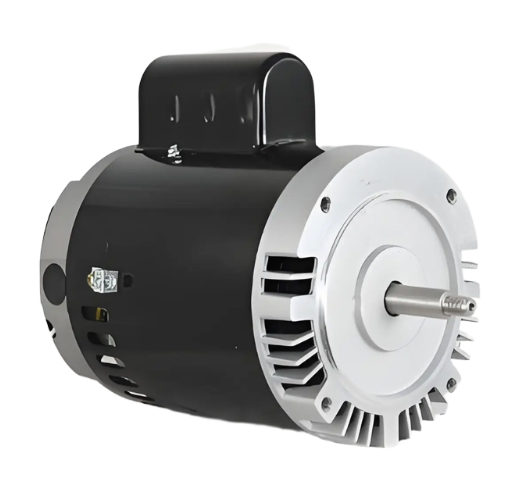

1 HP Pool Pump Electric Motor, 115/230 Volts, Single-Phase, 3,450 RPM #116712
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Description
The DP120156JC is a 1 HP Pool Pump Motor that delivers strong, reliable performance as a direct substitute for the Century B128 pool pump motor.
This high‑performance motor features rugged ball bearings and a corrosion‑resistant stainless steel shaft, providing long‑lasting reliability and smooth, efficient operation season after season.
Specifications
- Model: DP120156JC
- Equivalent To: Century B128
- Power: 1 HP
- Voltage: 115/230 VAC
- Phase: 1
- Frequency: 60 Hz
- Amperage: 13.6/6.8
- SFA: 18.4/9.2
- Speed: 3,450 RPM
- Capacitor Run: Yes
- Rotation: CCW (facing the shaft)
- Service Factor: 1.4
- Thermal Overload Protection: Yes
- Enclosure: ODP
- Insulation Class: F
- Frame: 56J
- Shaft: 5/8" diameter x 2-1/2" length (7/16"-20 threaded)
- Shaft Material: 303 Stainless Steel
- Weight: 26.5 lbs
- Warranty: 1-Year Limited
