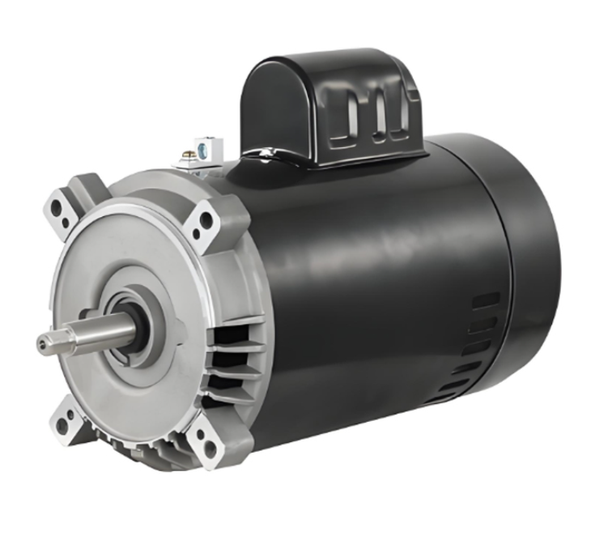

2.5 HP Round Flanged Pool Pump Electric Motor, 230 Volts, Single-Phase, 3,450 RPM #116723
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Description
The DP122556JA is a 2.5 HP Round Flanged Pool Pump Motor that delivers strong, reliable performance as a direct substitute for the Century UST1252 pool pump motors.
This high‑performance motor features rugged ball bearings and a corrosion‑resistant stainless steel shaft, providing long‑lasting reliability and smooth, efficient operation season after season.
Specifications
- Model: DP122556JA
- Equivalent To: Century UST1252
- Power: 2.5 HP
- Voltage: 230 VAC
- Phase: 1
- Frequency: 60 Hz
- Amperage: 11.5
- SFA: 13.0
- Speed: 3,450 RPM
- Capacitor Run: Yes
- Rotation: CCW (facing the shaft)
- Service Factor: 1.1
- Thermal Overload Protection: Yes
- Enclosure: ODP
- Insulation Class: F
- Frame: 56J
- Shaft: Round Flange, 7/16"-20 UNF-2A, RH threaded 11/16" from end
- Shaft Material: 303 Stainless Steel
- Capacitor-Start/Run
- Weight: 33.6 lbs
- Warranty: 1-Year Limited
