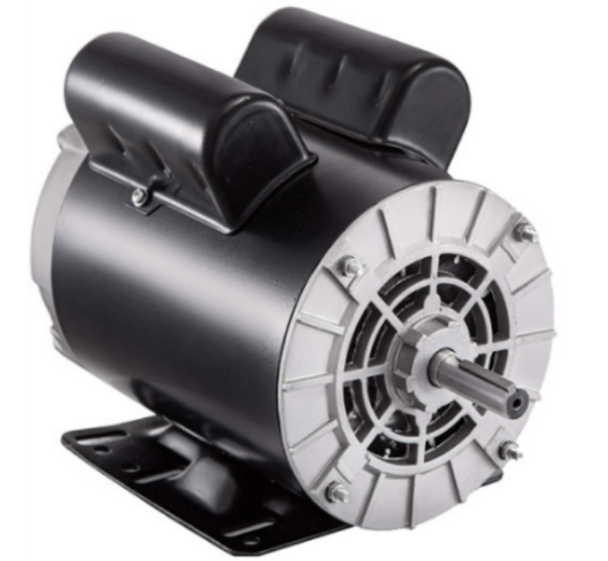

2 HP SPL Electric Motor, 115/230 Volts, Single-Phase, 3,600 RPM #1166C0

Air compressor duty CM02256 electric motor. 2 HP SPL, 115/230V, 3,600 RPM, 5/8" Shaft, 56 Frame.

The CM02256 is a popular 2 HP (SPL) motor for home and shop air compressors.

Specifications

• Model: CM02256
• Power: 2 HP (SPL)
• Voltage: 115/230 VAC
• Phase: 1
• Frequency: 60 Hz
• Amperage: 15.0/7.5
• Speed: 3,600 RPM
• Capacitor Start: Yes (start and run capacitor)
• Rotation: CCW (facing the shaft)
• Service Factor: 1.0
• Bearings: Ball
• Frame Material: Roll Steel
• Thermal Overload Protection: Yes
• Enclosure: ODP
• Insulation Class: F
• Frame: 56
• Base: Rigid
• Shaft: 5/8" diameter x 1.88" length
• Shipping Weight: 30 lbs
