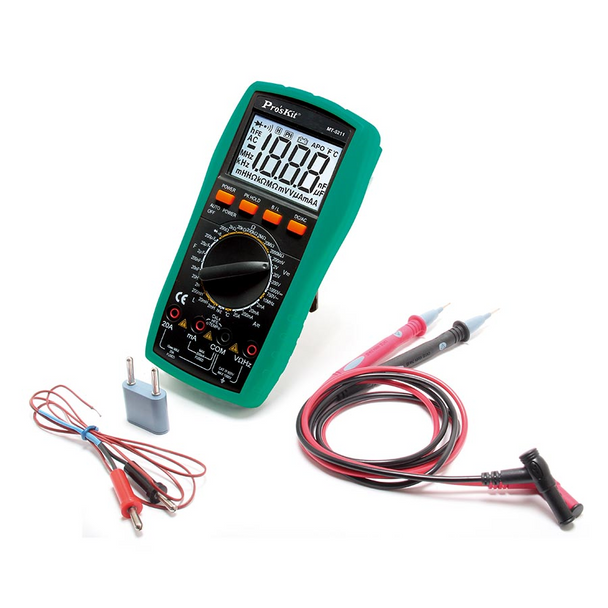

3-1/2 digits 1999 Counts Digital LCR Multimeter with Resistance, Capacitance, Inductance, Temperature, Frequency Tests #116685
(No reviews yet)
Write a Review
Description
● 3 1/2 digits 1999 counts
● Dual slope A/D conversion
● Large backlit LCD display
Fully Featured Multimeters Design for measuring AC/DC Volts, Current, Resistance, Frequency, Temperature, Continuity, Diode and Transistor.
Versatile, safe and Accurate All of its inputs are protected to CE, IEN61010-1 CAT IV 600V safety rated and overload protection ensures uninterrupted operation and long life.Dual slope A/D conversion.
Large LCD with back-light LCD display with back-light allows for easy reading even in dark area.
Extra functions Continuity with beeper, Diode test, Data hold, Auto power off, Low battery indication, Overload indication, Back-light, Transistor Tester.
LCR Meter
- Inductance to 20H
- Capacitance to 200µF
- Resistance to 2000MΩ
| DC Voltage (V) | 200mV/2V/20V/200V±(0.5%+3d) 1000V±(1.0%+5d) |
| AC Voltage (V) | 200mV±(1.2%+3d) 2V/20V/200V±(0.8%+5d) 750V±(1.2%+5d) |
| DC Current (A) | 2mA/20mA±(0.8%+3d) 200mA±(1.2%+4d) 20A±(2.0%+5d) |
| AC Current (A) | 2mA/20mA±(1.0%+5d) 200mA±(2.0%+5d) 20A±(3.0%+10d) |
| Resistance (Ω) | 200±(0.8%+5d) 2K/20K/200K/2MΩ±(0.8%+3d) 20MΩ±(1.0%+15d) 2000MΩ±(5.0%(reading-10)+20d) |
| Capacitance (uF) | 20nF/200nF/2uF±(2.5%+20d) 20uF/200uF±(5.0%+5d) |
| Inductance (L) | 2mH/20mH/200mH/2H/20H±(2.5%+20d) |
| Temperature (T) | <400°±(1.0%+4d) ≥400°±(1.5%+15d) |
| Frequency (Hz) | 2k/20k/200k/2000K/10M Hz±(1.0%+10d) |
| Power source | 9V 6F22 battery |
| Dimensions | 7.4x3.8x1.4" |
