K30, K30HU #01A18E
Loading Schematic
Model Numbers: K30, K30HU
Repair Parts for the Rol-Air K30, K30HU Two-Stage Twin-Cylinder Oil-Bath Air Compressor Pump
See Extra Details for parts breakdown on older pump models.
Specifications
Torque specs:
Connecting Rods:173.6 in lbs. (oil holes facing in)
Roller Bearing carriers:130 in lbs.
Cylinder Bolts:330 in lbs.
Head bolts:347 in lbs. (in X pattern)
Oil Capacity = 48 oz
Extra Details
Pump Identification
The K30 crankcase does says K30 on some of them. The K35 pump also used the same casting as the K30, but the cylinder bolt holes are in different locations. The K35 is a single stage pump. So, if it says K30 on the crankcase and has 2 different size pistons, it is definitely a K30.
Technical Documents
-
Price: $15.54
-
Rolair 431 Air Filter Element #081096
Price: $12.00Old Part Numbers: 019-0246, 019-0023Replacement air filter element, Rolair 431. Fits the K12 through K30 air compressor pumps. Replacing the pump's air filter regularly is important to maintain the performance and longevity of your air compressor. A...Price: $12.00 -
Connecting Rod w/ Upper Bushing & Bearing Inserts #080106
Price: $131.88Old Part Numbers: 31101990CH1, 31102130CHConrod Assy INCLUDES Insert Bearings and Upper Bushing. Order this for the complete assembly!Price: $131.88 -
Air Filter Assembly, Canister, 3/4" MPT #0EBF65
Price: $41.50Old Part Numbers: FS-14-075Complete hollow-style filter assembly for air compressors, including filter element. Takes the 14-SOL filter element. Replacing the pump's air filter regularly is important to maintain the performance and longevity of your air...Price: $41.50 -
Price: $2.40
-
On Sale

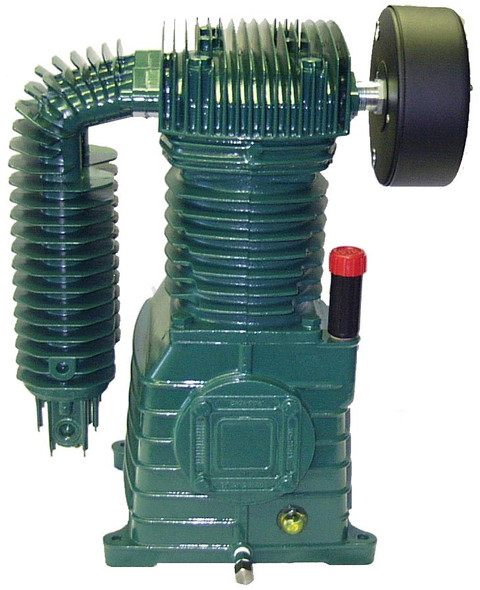

Rolair K30 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 5 - 7.5 HP #07F913
Now: $809.00Was: $831.75Complete K30 air compressor replacement pump includes the flywheel, intercooler, air filter assembly, and aftercooler. For gas or electric-powered units. Add oil, bolt on, and go! Oil not included, order separately. Note: Please specify your model number...Now: $809.00Was: $831.75 -
Price: $102.45
-
Price: $51.00
