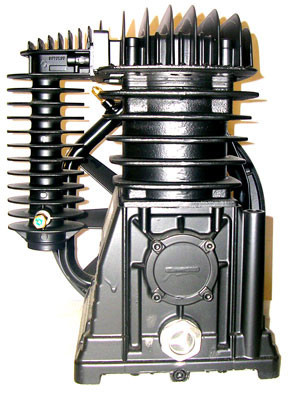

B5900 Air Compressor Pump Replacement, Complete Assembly, 5 HP, Two-Stage #1166CD
- Shipping:
- Calculated at Checkout
Description

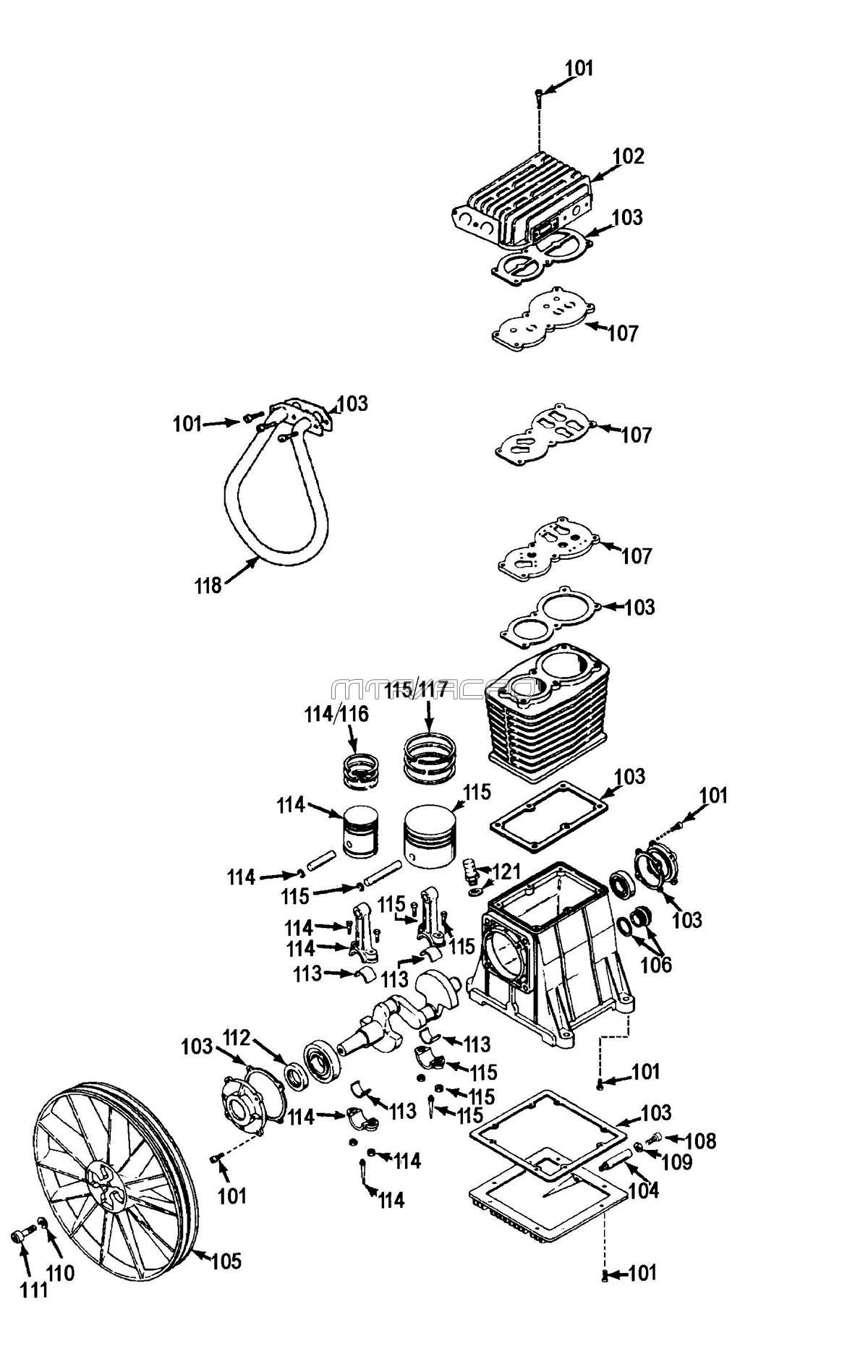

B5900 Two-Stage Air Compressor Pump Replacement. Includes flywheel, aftercooler, and air filter assembly.
Note: If your old B5900 does not have an aftercooler, please purchase the B5900AAK Aftercooler Adapter Kit. The aftercooler outlet measures 1-1/4" FPT,
Also order a bushing (part number BLBS1250X0750) to reduce the 1-1/4" female NPT fitting in the bottom of the aftercooler to 3/4" female NPT.
If you need to further reduce the 3/4" female NPT thread to a 1/2" female NPT thread, then order part number BLBS0750X0500.
Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.
Specifications
- HP: 5 HP
- CFM Delivery: 18 CFM @ 100 PSI, 16 CFM @ 175 PSI
- Max PSI: 175 PSI
- Material of Construction: aluminum with steel cylinder sleeves
- Flywheel: 13.75" OD Single "A" groove
- RPM: Min RPM = 700, Max RPM = 1,400
- Oil Capacity: 55 oz (1.72 qts.)
- Duty Cycle: designed for 80/20 duty cycle
- Weight: 63 lbs.
- Dimensions (LWH): 13.78" x 13.54" x 15.94"
- Bolt Pattern: 6.75" front-to-back, 7.5" side-to-side
Product Fitment
-
Coleman Powermate Sanborn B5900, Z-D27044, 040-0210, Z-ABP-459 Two-Stage Oil-Bath Air Compressor Pump Parts -
Coleman Powermate Sanborn B5000, 51-AT22, B51-A22 Two-Stage Oil-Bath Air Compressor Pump Parts -
Coleman Powermate Sanborn B51-AT24-80V, B51-A24-80V1, H580, C05Z080H2A154 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -

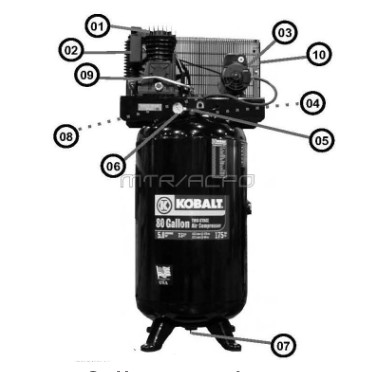

Kobalt K7580V2, 134749 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
IMC-ATLAS COPCO 59G3HB Two Stage Air Compressor Repair Parts -
Rolair PRLKC6580V2 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -

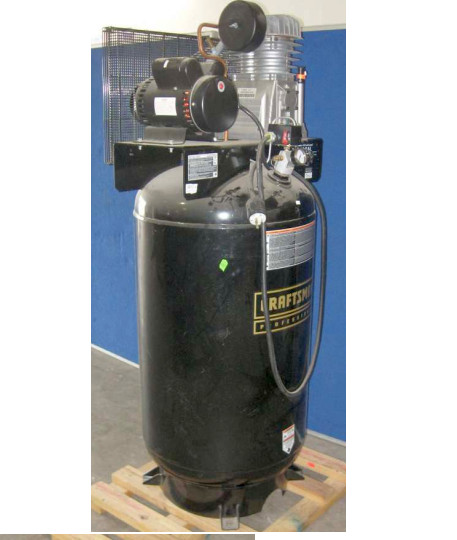

Craftsman 919.167802 Stationary Two-Stage Electric Air Compressor Parts -
Rolair Z-ABP-459 Pump -
Rolair IR65K80V1D Stationary Oil-Bath Air Compressor Parts -

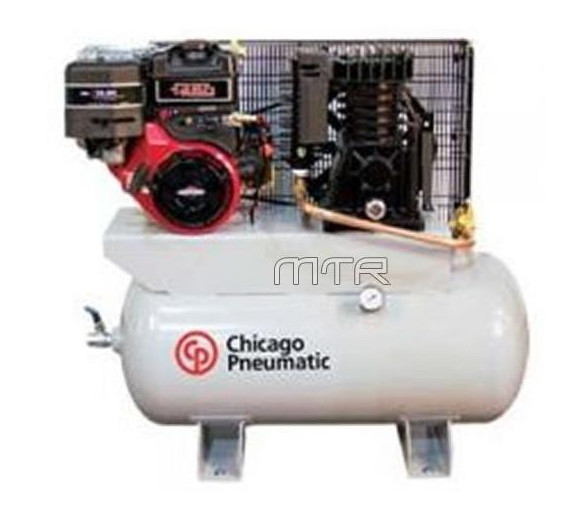

Chicago Pneumatic RCP-1030G Portable Two-Stage Gas Air Compressor Parts -
Chicago Pneumatic RCP-930G Stationary Two-Stage Gas Air Compressor Parts -
IMC-ATLAS COPCO 59G3HR Stationary Two-Stage Gas Air Compressor Parts -
Craftsman 919.167800 Stationary Two-Stage Electric Air Compressor Parts -
Rolair IRLK6580V2 Stationary Oil-Bath Air Compressor Parts -
Porter Cable CPLKC7080V2 Stationary Oil-Bath Air Compressor Parts -
Rolair RA65K80V1D Stationary Oil-Bath Air Compressor Parts -
Rolair IRLK6580V2 Two Stage Stationary Oil-Bath Air Compressor -
Rolair PRLK6580V2 Stationary Two Stage Oil-Lubricated Air Compressor Parts -
Rolair PRLK6580V2 Stationary Two Stage Oil-Lubricated Air Compressor Parts -
Rolair PRLKC6580V2 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
Rolair RA5K80V1D Stationary Oil-Lubricated Two-Stage Air Compressor Parts -
Rolair RA5K80V1D pump Stationary Oil-Lubricated Two Stage Air Compressor Parts -
Rolair RALK6580V2 Stationary Oil-Lubricated Two Stage Air Compressor Parts -
Rolair RALK6580V2_1 Stationary Oil-Lubricated Two Stage Air Compressor Parts -
Craftsman 919.167801 Stationary Oil-Lubricated Two Stage Electric Air Compressor -
Coleman Powermate Sanborn C05Z080V2A154 Stationary Two-Stage Electric Air Compressor Parts -
Coleman Powermate Sanborn M06Z080V2A154, M06Z080V2E154, B06Z080V2E154 Stationary Two-Stage Electric Air Compressor Parts
Old Part Numbers: ABP-459, Z-ABP-459, 040-0210, 4116090137
Extra Details
The B5900 pump is used on various branded units, including: ABAC/American IMC, Chicago Pneumatic, Coleman Powermate, DeVilbiss, DeWalt, Ingersoll Rand, Porter Cable, and Sears Craftsman.
