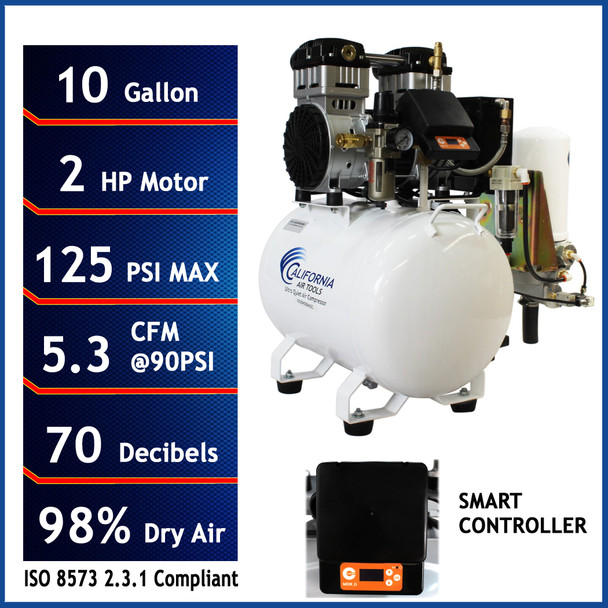

California Air Tools Powerful Powerful 2.0 HP SMART Ultra Quiet & Oil-Free 10-Gallon Air Compressor with 98% Air Dryer and Automatic Drain Valve #11673F

The California Air Tools 10020HDSMADC Powerful Powerful 2.0 HP SMART Ultra Quiet & Oil-Free 10-Gallon Air Compressor with 98% Air Dryer and Automatic Drain Valve is designed to be one of the quietest 2.0 HP air compressors in the industry having only 70 decibels of sound.

What makes this "SMART" unit unique is the MDR2i OLED Smart Controller, which may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably, along with remote monitoring.

The powerful 2.0 HP motor operates at only 1,680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is  engineered for longevity, high performance and durability.

The SP-9421 Motor/Pump is tested for a minimum pump life of 3,000 hours before service, that's 30% more life before repair. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*

The 98% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.

• PDP performance range (-20′ F. to -51′ F.)
• Air Quality: ISO 8573 – Class 2.3.1

To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.

The easy to replace “Spin-On” Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air.

This cartridge dryer has a life of 2-years before replacement.

The large 10 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet.

The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.

The manually set timer allows you to set the time for both the frequency and duration of the draining process.

The large 10 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet.

Designed for the person looking for Power, 98% Dry Air and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Bio-Tech, Manufacturing, Packaging, Restaurant and General Engineering Applications.

*70/30 Duty Cycle – Click Here For More Information

• HP: 2 HP
• Decibel Rating: ultra-quiet, only 70 dB
• Pump Type: Twin-cylinder oil-free, direct-drive (Class 1) – Cleaner air for better tool operation.
• Max PSI: 125 PSI
• CFM Delivery: 6.40 CFM @ 40 PSI / 5.30 CFM @ 90 PSI
• Voltage: 110V/60 Hz/Single-Phase
• Amperage: Low amp draw - 14 amps
• Time to fill tank from empty to full: 120 seconds
• Recovery time from 95 PSI to 125 PSI: 25 seconds
• Duty Cycle: 70/30
• Tank Capacity: 10-gallon steel air tank
• Weight: 100 pounds
• Dimensions (LxWxH): 20" x 28" x 26"
• Warranty: 1-year limited

EZ-1-2321 Automatic Drain Valve

• Timer Manual TEST switch
• Valve Body- Forged brass
• Bright lights for a clearer indication of operating status.
• In/Out Ports - 1/4" NPT Female
• For use with 110 volts outlets
• Product: 3.5" (D) x 4.5" (H) x 1.5" (W) - 1.5 lbs
• Max. Working Pressure - 230 PSI
• 1 Year Limited Warranty

DRY AIR SYSTEM MAINTENANCE:

• Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
• Easy to remove (spin off), replace the 98% Air Dryer Cannister/Cartridge every 4,000 operating hours (~2 years on average).

Replace 2 HP Air Filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part number 90260.

• Regulated output pressure gauge
• Pressure Regulator (0-120 PSI)
• Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum
• One (1) Female Industrial “Push to Connect” quick connector (1/4″ NPT)
• MDR2i OLED Smart Controller for remote monitoring and control
• EZ-1-2321 Auto Drain Valve factoy installed
• Thermal Overload Protector
• Easy Start Valve  – For Less Starting Amperage
• Less heat which dissipates more efficiently
• Comes complete with two (2) air filters
• 0.01 Micron Prefilter
• 5.0 Micron (Class 2) Air Filter & Regulator
• 10 Gallon Steel ASME Certified Air Tank (non-ASME)
• Aftercooler (condenser)
• PDP performance range (-20′ F. to -51′ F.)
• Air Quality: ISO 8573 – Class 2.3.1
• EZ-1-2321 Auto Drain Valve Factory Installed
• Manufactured in Mexico-USA. Assembled in USA using global components.
• Commercial Use: Refer to State & City Codes
