Digital Board Replacement

TANK PRESSURE INDICATOR KIT
165-0267 - Manual regulator control

CAUTION: To prevent damage to the programmed control board, static grounding must be worn during handling and assembly.

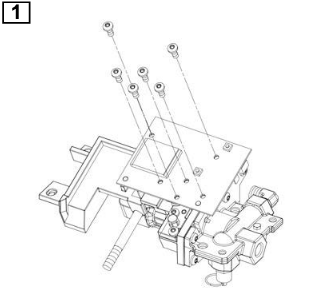

  1. manual-regulator-control-figure-1.png
    Remove 6 control board screws.

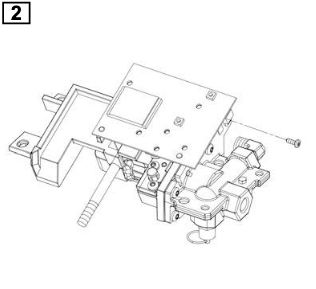

  2. manual-regulator-control-figure-2.png
    Remove triac screw.
  3. manual-regulator-control-figure-3.png
    Lift the control board from the manifold.

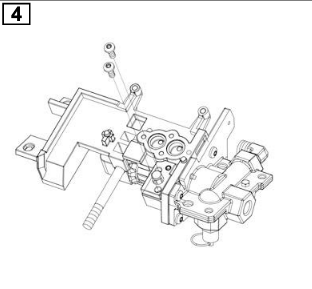

  4. manual-regulator-control-figure-4.png
    Remove the 2 screws from the tank indicator cap.

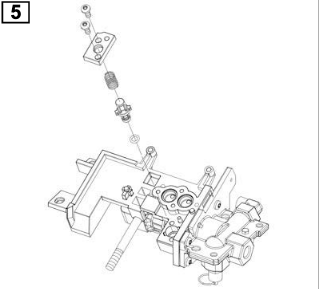

  5. manual-regulator-control-figure-5.png
    Replace the tank indicator parts with the new parts and re-install the screws. Torque to 8-10 LB-IN.

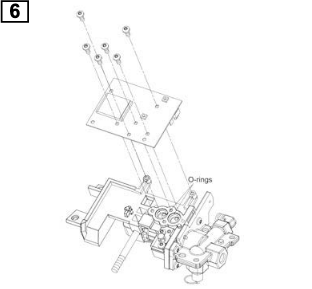

  6. manual-regulator-control-figure-6.png
    Install the control board and torque the 6 screws to 8-10 LB-IN. NOTE: Make sure the (2) o-rings are in position.

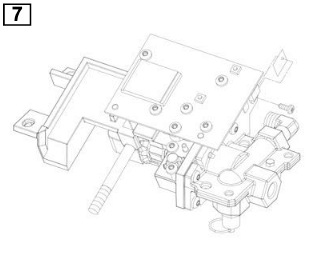

  7. manual-regulator-control-figure-7.png
    Position the sill pad between the triac on the control board and the manifold. Torque the traic screw to 8-10 LB-IN.

TANK PRESSURE INDICATOR KIT
165-0267 - Electronic regulator control

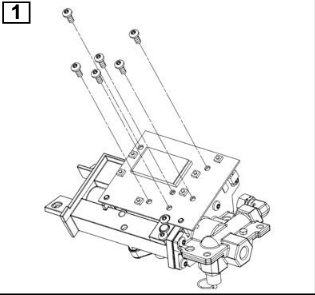

  1. electronic-regulator-control-figure-1.png
    Remove 6 control board screws.

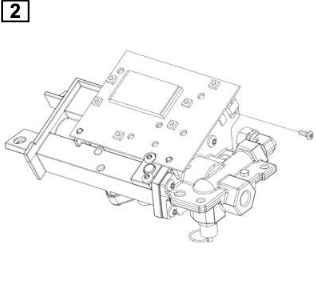

  2. electronic-regulator-control-figure-2.png
    Remove triac screw.

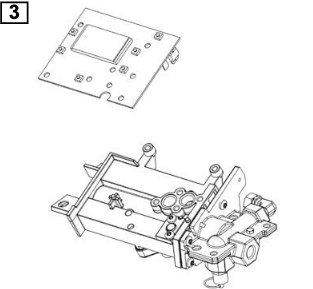

  3. electronic-regulator-control-figure-3.png
    Lift the control board from the manifold.

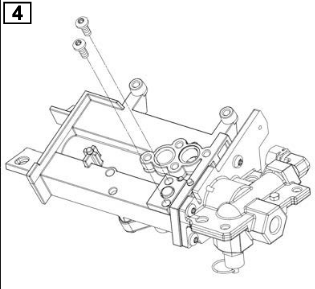

  4. electronic-regulator-control-figure-4.png
    Remove the 2 screws from the tank indicator cap.

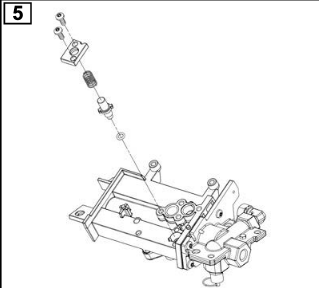

  5. electronic-regulator-control-figure-5.png
    Replace the tank indicator parts with the new parts and re-install the screws. Torque to 8-10 LB-IN.

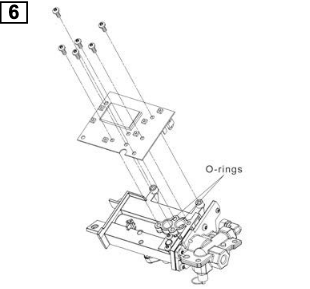

  6. electronic-regulator-control-figure-6.png
    Install the control board and torque the 6 screws to 8-10 LB-IN. NOTE: Make sure the (2) o-rings are in position.

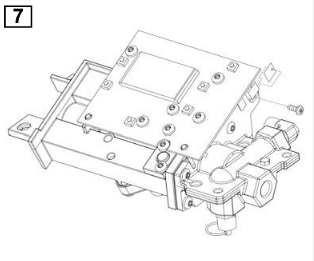

  7. electronic-regulator-control-figure-7.png
    Position the sill pad between the triac on     the control board and the manifold. Torque the traic screw to 8-10 LB-IN
