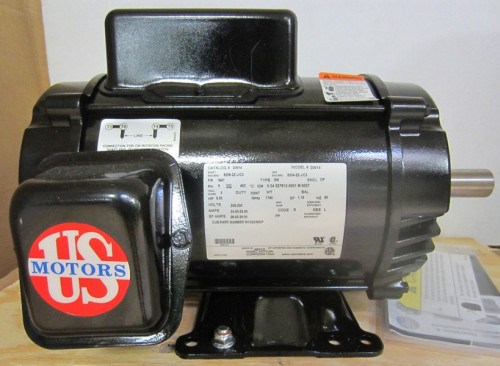

Electric Motor IND Packed, 5HP, Single-Phase #01B373
- Shipping:
- Calculated at Checkout
Description

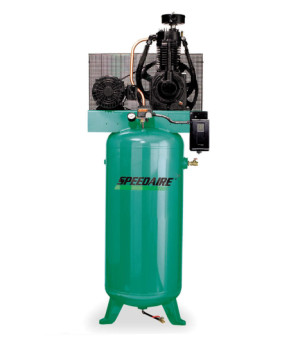

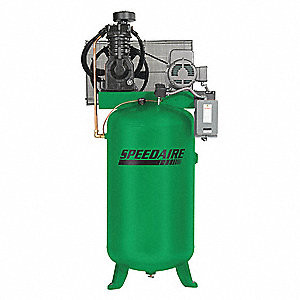

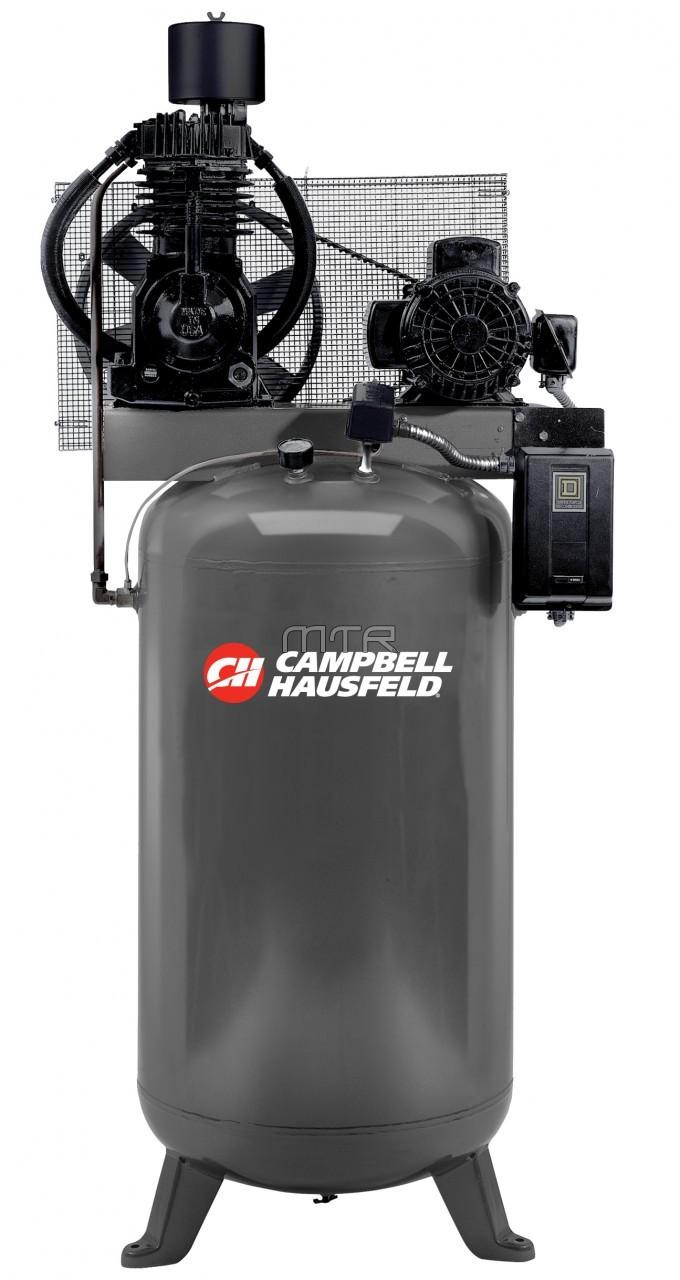

5 HP Electric Motor for air compressors. Used on many Campbell Hausfeld, Husky, and Speedaire models.
Specifications
- Model: MC022393IP
- Power: 5 HP
- Voltage: 208-230 VAC
- Phase: 1
- Frequency: 60 Hz
- Amperage: 24-23
- Speed: 1,750 RPM
- Rotation: CCW (facing the shaft)
- Thermal Overload Protection: N/A
- Enclosure: ODP
- Insulation Class: F
- Frame: 184T
- Base: Rigid
- Service Factor: 1.15
- Shaft: 1-1/8" diameter
