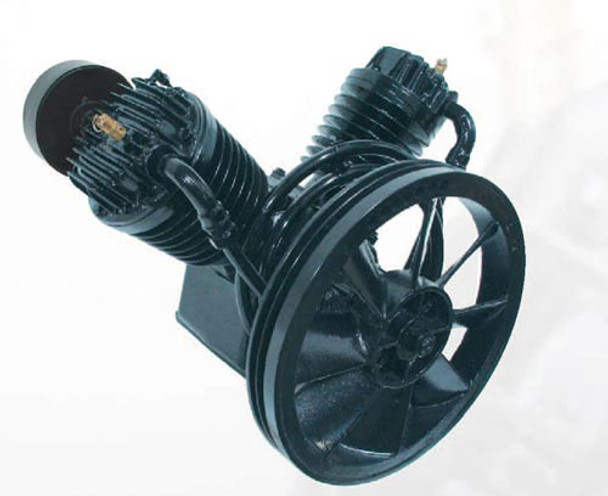

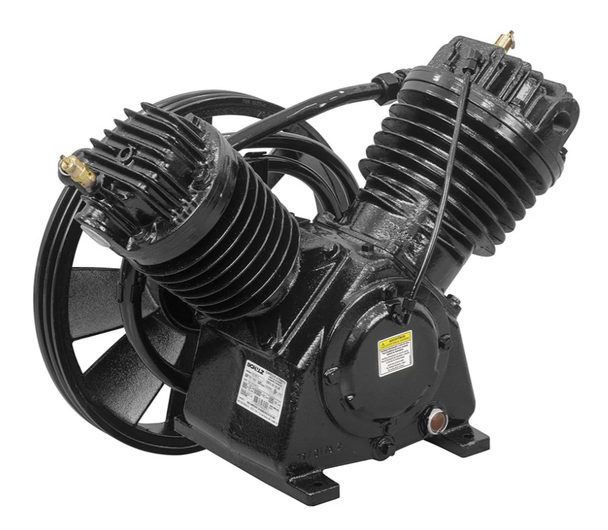

MSV30 Max Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 7.5 HP (Electric) #0A12F1

Complete MSV30 Max two-stage, v-twin, oil-bath, reciprocating air compressor pump assembly. Includes flywheel and metal intake filters.

The MSV30 Max is heavy-duty, v-twin, splash-lube, cast iron pump, and is a real workhorse that will stand up to the most demanding environments and applications. If you need reliable compressed air at your jobsite or garage, you can't go wrong with the Schulz MSV series of air compressor pumps.

NOTE: Does not include air filter assembly, order separately.

• Splash oil-lubricated pump
• Solid cast iron construction (CNC machined - ISO 9002)
• Traditional "V" cylinder design
• Slotted feet for easy mounting
• Large Swedish stainless-steel reed valves
• Two-stage - better efficiency
• Maximum pressure 175 PSI
• 30 CFM displacement capacity for dependable air supply
• Operates at 820 RPM for quieter performance

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

Specifications

• HP: 7.5 HP (electric)
• Stages: Two-Stage, V-twin
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 20.1 cfm @ 175 psi (820 RPM)
• Max PSI: 175 psi
• Material of Construction: Cast-iron with steel sleeves
• Flywheel: 16.54" OD double "A" groove (4L-style)
• RPM: 820
• Weight: 150 lbs.
• Dimensions (LWH): 18.534" x 17.126" x 16.142"
• Bore & Stroke: 2.5" / 4.724" x 2.972"
• Bolt Pattern: 8.661" front-to-back, 17.126" side-to-side
• Outlet: 3/4" female NPT
• Warranty: 1 year
