Pressure Switch, 95/125 PSI, 1 Port, Unloader Valve, Auto/Off #01A1CE
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Description
Air compressor switch for original equipment switches Furnas 69MB7LY, Huanli QSK-2, LeFoo LF10-1H2, SW-35-66. Furnas-type air compressor switch.
Specifications
- Number of ports: 1
- Pipe fittings: 1/4" NPT
- Pressure setting: 95/125 PSI
- Unloader valve
- Maximum motor switching capacity: 1.5HP (20 full load amps) @ 120V / 2HP (12 full load amps) @ 230V
- UL Approved
Product Fitment
-

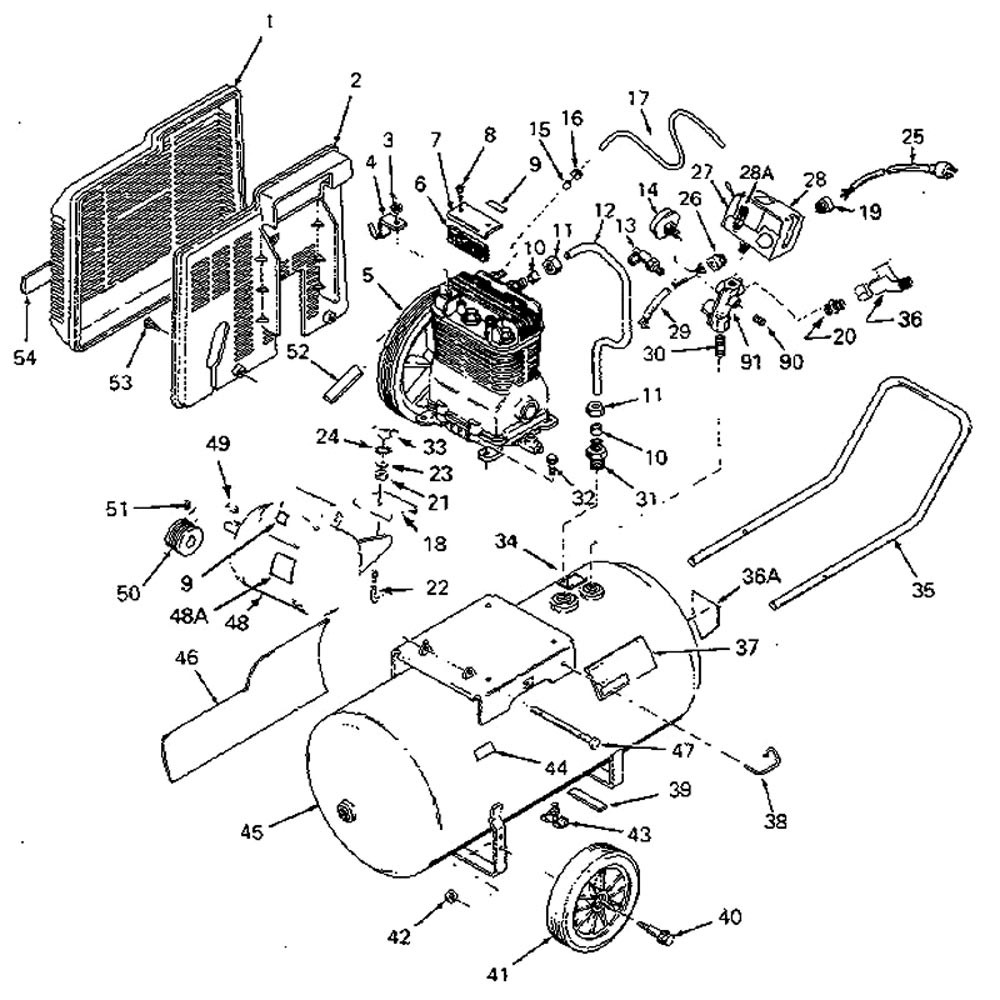

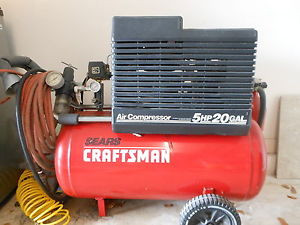

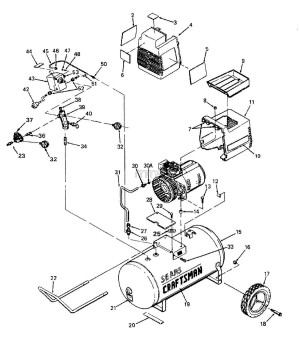

Craftsman 919.156520 Portable Single-Stage Electric Air Compressor Parts -
Craftsman 919.155730, 919.155732 Portable Oil-Free Direct-Drive Electric Air Compressor Parts -
Craftsman 919.176951 Portable Single-Stage Oil-Bath Electric Air Compressor Parts -
Craftsman 919.176450 Portable Oil-Bath Electric Air Compressor Parts -
Craftsman 919.155731 Portable Oil-Free Direct-Drive Electric Air Compressor Parts -
Craftsman 919.176850 Portable Single-Stage Oil-Bath Electric Air Compressor Parts -

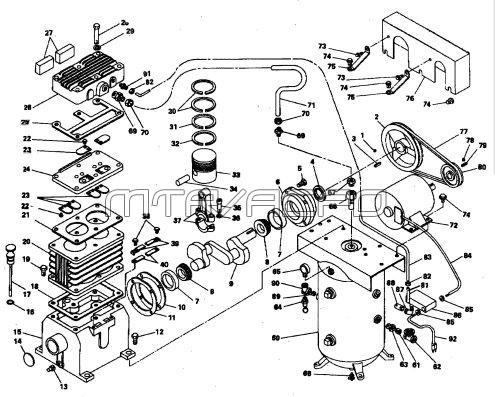

Craftsman 919.152810 Craftsman Two Stage Stationary Air Compressor Pump Parts -
Craftsman 919.152810 Stationary Single-Stage Oil-Free Direct-Drive Electric Air Compressor Parts -
Coleman Powermate Sanborn G650B60V, G650BP60V, H320, X500BPM60V, B535B, D5060 Stationary Single-Stage Oil-Bath Electric Air Compressor Parts -
Senco PC0968 Air Compressor Parts -
Coleman Powermate Sanborn 500A30V, 500A30H, 500A60V, 500A60, 500A60H Stationary Single-Stage Oil-Bath Electric Air Compressor Parts -
Kobalt VLT0881503, 110369 Air Compressor Parts -
Craftsman 919.177541 Portable Single-Stage Oil-Bath Electric Air Compressor Parts
Old Part Numbers: CAC-4221-1, FSPS90125
