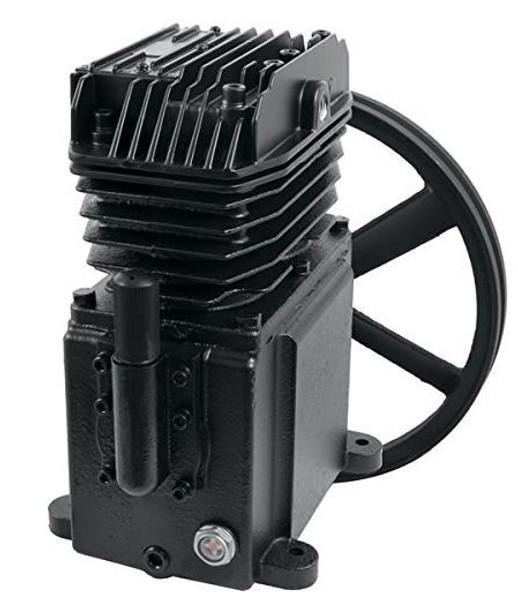

753H Air Compressor Pump Replacement, Complete Assembly With Flywheel, Single-Stage #05AA5D

Complete 753H Pump Replacement with flywheel. Includes air filter. In-line, twin-cylinder, single-stage pump. Cast-iron construction.

NOTE: There is a 5 to 7 day lead time for this pump once ordered, as it is built to order.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

Specifications

• HP Rating: 1.9 HP
• Stages: Single-Stage, In-Line Twin-Cylinder
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 7.0 CFM @ 40 PSI / 5.7 @ 90 PSI
• Max PSI: 155 PSI
• Material of Construction: Cast-iron with steel sleeves
• Flywheel: 12" OD / single "A" groove
• RPM Range: 1,100 / 1,200
• Oil Capacity: 16 oz.
• Weight: 49 lbs.
• Bore & Stroke: 2.95" x 1.50"
• Dimensions (LxWxH): 12.35" x 7.0" x 12.22"
• Bolt Pattern: 5.74" (front-to-back) / 5.88" (side-to-side)
• Outlet: 3/8" FPT
• Warranty: 1 year limited from the date of purchase
