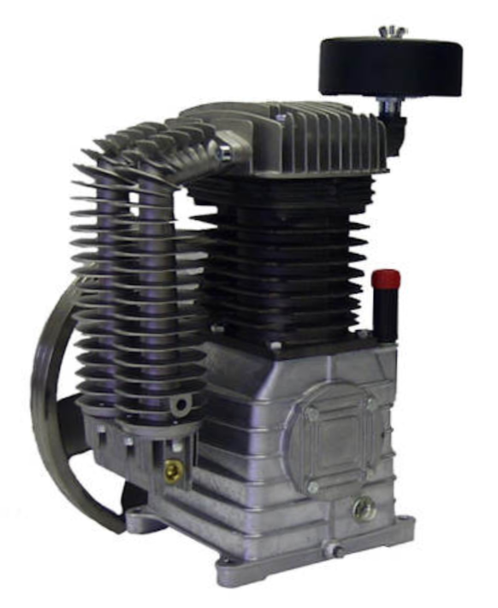

Rolair K30 Air Compressor Pump Replacement, Complete Assembly with Head Unloaders, Two-Stage, 5 - 7.5 HP #081787
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Description
Complete K30 air compressor pump replacement with head unloaders, flywheel, and air filter. Just bolt it on, install your belts and discharge tube, add oil, and you're ready to go.
Note: Please specify your model number in the comments section of your order when ordering to receive correct setup.
Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.
Specifications
- HP Rating: 5 - 7.5 HP
- Stages: Two-Stage, In-Line Twin-Cylinder
- Drive: Reciprocating / Oil-Bath
- CFM Delivery: 16.01 - 23.63 CFM @ 175 PSI (5 HP)
- Max PSI: 175 PSI
- Material of Construction: aluminum with steel sleeves
- Flywheel: 15.16" OD / twin "A" groove
- RPM Range: 800 / 1,200
- Oil Capacity: 47 oz.
- Weight: 45 lbs.
- Bore & Stroke: 4.13" x 3.31" (LP) / 2.05" x 3.31" (HP)
- Dimensions (LxWxH): 14.17" x 16.33" x 18.70"
- Bolt Pattern: 7.48" (front-to-back) / 8.97" (side-to-side)
- Outlet: 1/2" FPT
- Warranty: 1 year limited
Extra Details
Pump Identification
The K30 crankcase does say K30 on some of them. The K35 pump also used the same casting as the K30, but the cylinder bolt holes are in different locations. The K35 is a single-stage pump. So, if it says K30 on the crankcase and has 2 different size pistons, it is definitely a K30.
Torque Specs:
Connecting Rods: 173.6 in lbs. (oil holes facing in)
Roller Bearing carriers: 130 in lbs.
Cylinder Bolts: 330 in lbs.
Head bolts: 347 in lbs. (in X pattern)
Connecting Rods: 173.6 in lbs. (oil holes facing in)
Roller Bearing carriers: 130 in lbs.
Cylinder Bolts: 330 in lbs.
Head bolts: 347 in lbs. (in X pattern)
