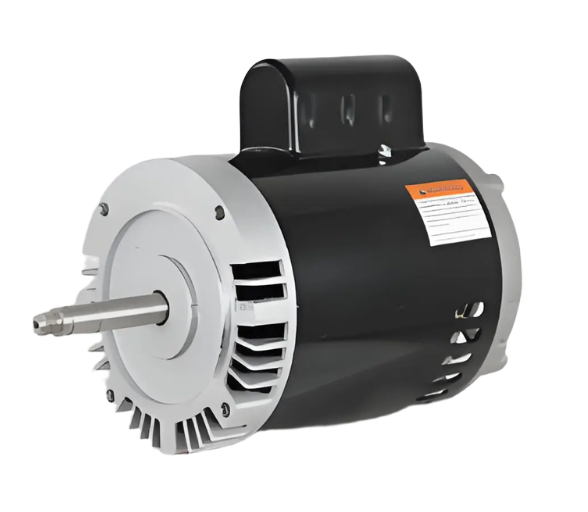

3/4 HP Pool Pump Electric Motor, 115/230 Volts, Single-Phase, 3,450 RPM #116710

The DP123456CZ Pool Pump Motor delivers strong, reliable performance as a direct substitute for the Century B625  pool pump motor.

This high‑performance motor features rugged ball bearings and a corrosion‑resistant stainless steel shaft, providing long‑lasting reliability and smooth, efficient operation season after season.

• Model: DP123456CZ
• Equivalent To: Century B625
• Power: 3/4 HP
• Voltage: 115/230 VAC
• Phase: 1
• Frequency: 60 Hz
• Amperage: 8.0/4.0
• Speed: 3,450 RPM
• Capacitor Run: Yes
• Rotation: CCW (facing the shaft)
• Service Factor: 1.5
• Thermal Overload Protection: Yes
• Enclosure: ODP
• Insulation Class: F
• Frame: 56CZ
• Shaft: 5/8" diameter x 3-7/8" length (threaded)
• Bolt Circle Diameter: 5-13/16"
• Weight: 25.2 lbs
• Warranty: 1-Year Limited
