B3000 #01A1E4
Loading Schematic
Model Numbers: B3000
Click Here for a parts breakdown
Specifications
- 7.41 cfm @ 100 psi w/ 5 HP motor
- 2 - 5 HP
- Min RPM 700 Max RPM 1400
- Max Pressure 130 psi
- 13.78" for B3800
- Bore 2.36
- Stroke 1.58
- Belt A-1
- Weight 24 lbs.
- 11.02 L x 10.94 W x 12.75 H for B3000 13.00 L x 11.38 W x 13.56 H for B3800
- Bolt Footprint 7.44" Side to Side 5.62" Front to Back
- Oil Capacity .82 ozs.
Extra Details
You can still get parts, but the pump is obsolete. If you want a whole new pump, order the B3800 as it is the closest match regarding cfm output. (Bolt pattern is different on base and flywheel is slightly smaller)
Technical Documents
-
Oil Seal, B3000 / B3800 / B3801 / T29S Air Compressor Pumps #05C1B9
Price: $2.64Old Part Numbers: AB-9163010, 046-0217, 9163010, ABP-9163010Crankcase oil seal for B3000, B3800, B3801, T16, and T29S model air compressor pumps. Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor...Price: $2.64 -
Price: $5.25 -
Filter Assembly without Screws (CPI) #05C7F9
Price: $6.24Air filter assembly without screws. Includes element with housing. Protect your air compressor pump from damage.Price: $6.24 -

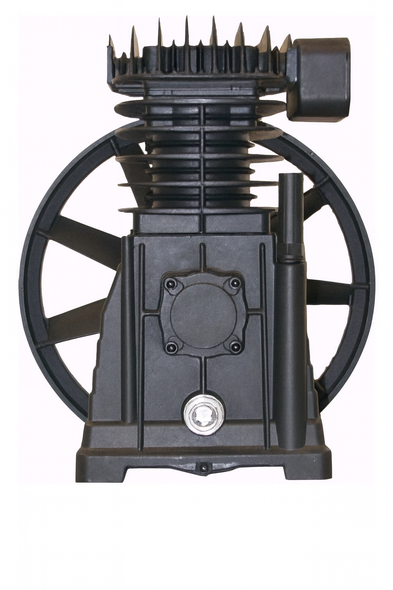

B3800 Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 3 - 5 HP #05C179
Price: $186.72Old Part Numbers: 4116091337Complete B3800 replacement air compressor pump assembly includes flywheel, sight glass, oil breather, and air filter (no aftercooler). 3 - 5 HP. Note: This pump has a LEFT-side discharge. If your discharge tube connects to...Price: $186.72 -
