G, GU, GC, GCU, MG, MGU #01A18A
Loading Schematic
Model Numbers: G, GU, GC, GCU, MG, MGU
Repair Parts for Emglo G, GU, GC, GCU, MG, MGU Air Compressor Pumps
Specifications
Torque Specs:
- Head Bolts = 22 ft/lbs
- Cylinder Bolts = 15 ft/lbs
- Connecting Rod Bolts = 10 ft/lbs
- End Cap Bolts - 10 ft/lbs
Extra Details
- This pump has many different configurations, but the basic pump is the same with each model.
- 2" bore and 2.675" stroke
- 18.3 cfm @ 100psi w/ 5 HP motor
- Min RPM 435 Max RPM 1030 @ 125psi.
- G & GU Pump had 10.375" flywheel.
- GC & GCU Pump had 13.25" flywheel.
- Oil capacity 32 oz.
- Pump weight 85#
- New Pumps w/ 1 year warranty.
-
On Sale
Now: $20.95Was: $28.07 -
On Sale
Valve Plate Gasket #080687
Now: $7.95Was: $8.25Old Part Numbers: 104-1007Valve plate gasket for air compressors. Also available in the KUVALVEKIT, Gasket Kit, or Rebuild Kit. If the compressor pump doesn't seem to pressurize as quickly as it should or is leaking in between the head, valve plate,...Now: $7.95Was: $8.25 -
Replacement Paper Filter Element for Twist-Lock Air Filter Assembly #08029F
Price: $10.95Replacement paper filter element for twist-lock air filter assembly for air compressors. Element only. Replacing the pump's air filter regularly is important to maintain the performance and longevity of your air compressor. A clean filter element...Price: $10.95 -
On Sale

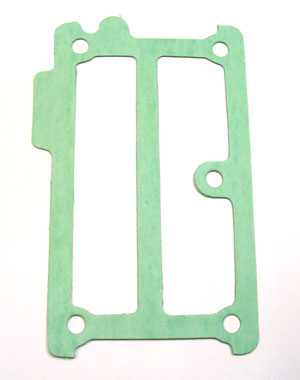

Head Gasket #08066F
Now: $7.95Was: $9.00Old Part Numbers: 104-1008Head Gasket for air compressors. Also available in the KUVALVEKIT, Gasket Kit, or Rebuild Kit. If the compressor pump doesn't seem to pressurize as quickly as it should or is leaking in between the head, valve plate, cylinder or...Now: $7.95Was: $9.00 -
Cylinder to Crankcase Gasket, KGW Pump, 1/32" #0804D8
Price: $3.75Cylinder to crankcase gasket, KGW air compressor pump, 1/32". In between the crankcase and the cylinder. If the compressor pump doesn't seem to pressurize as quickly as it should or is leaking in between the head, valve plate, cylinder, or crankcase...Price: $3.75 -
On Sale
Twist-Lock Air Filter Assembly, 1/2" MPT #080E50
Now: $25.95Was: $26.13Old Part Numbers: FS-10-052Twist-lock air filter assembly for air compressors. 1/2" MPT. Includes 10-SOL filter element. Replacing the pump's air filter regularly is important to maintain the performance and longetivity of your air compressor. A clean...Now: $25.95Was: $26.13 -
Price: $0.93 -
Emglo / Jenny G, GC, MG, L, LC, D Air Compressor Pump Repair Kit #057718
Price: $212.69Old Part Numbers: G101, 610-1124Rebuild Kit for the Emglo/Jenny G, GC, MG, L, LC, D air compressor pumps. Includes piston rings, gaskets, intake and exhaust valves, and G54E hockey puck-style air filter elements. NOTES: Order the L54E if you have hollow,...Price: $212.69
