335TV / M Pump #01B071
Loading Schematic
Model Numbers: 335TV / M Pump
Repair Parts for the Kellogg model 335, 335TV and Emglo "M" Two-Stage Oil-Bath Reciprocating Air Compressor Pump
Specifications
- 17.2 cfm @ 175 psi
- Slow speed (700) RPM
- Steel rods w/ automotive type inserts and needle bearings
- Positive ring fed lubrication
- Centrifugal unloading & Head Unloading.
- Bore: 4 3/4 LP & 2 1/2 HP. Stroke: 3"
- Oil capacity 2 qts.
Torque Specs:
Head to Cylinder = 10 ft/lbs
LP & HP Valve Hold Down Covers = 10 ft/lbs
Cylinder to Base Bolts = 28 ft/lbs
End Cover Bolts = 10 ft/lbs
Flywheel Bolts = 43 ft/lbs
Connecting Rod Bolts = 25 ft/lbs
Click here for Pump dimensions and specs
Manuals
Click here to order and download the Owner's Manual
Technical Documents
Click here for instructions on repairing a Crankcase leak
-
Rolair 431 Air Filter Element #081096
Price: $16.88Old Part Numbers: 019-0246, 019-0023Replacement air filter element, Rolair 431. Fits the K12 through K30 air compressor pumps.Price: $16.88 -
Centrifugal Unloader Valve #0195A9
Price: $34.66Centrifugal unloader valve for Kellogg/Campbell Hausfeld/Saylor Beall air compressor pumps. Simply remove old valve, install new valve, and adjust. Specifications 1/8" NPT X 5/16" CompPrice: $34.66 -
Air Filter Assembly, 1" MPT #022D11
Price: $48.62Air compressor air filter assembly includes filter housing and element. Replace your old square style with this new round style. Uses the size "14" Filter Element. Note: The male NPT thread measures...Price: $48.62 -

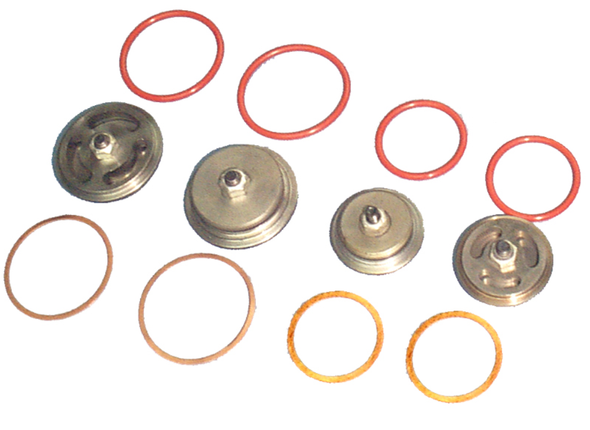

Kellogg 332/335 Air Compressor Pump Valve Kit #0197BC
Price: $105.55Old Part Numbers: K332VK, K335VKValve Kit includes valve assemblies for air compressor pump. Includes the valve spring and disc kit. Includes the LP and HP o-ring seals. If air leaks out of the...Price: $105.55 -
Kellogg 335 Air Compressor Pump Gasket Set w/ Oil Seal, 83206 #0195C3
Price: $49.03Old Part Numbers: K335GKIncludes all Gaskets for your Kellogg 335 pump. If air leaks out of the intake filter or if the compressor just isn't performing like it should, order this kit. A loss of...Price: $49.03 -
Kellogg 321/332/335/452 Centrifugal Unloader Assy, 48870 #019784
Price: $73.02Old Part Numbers: CK48870, 48870Centrifugal Unloader Valve Assembly with weights. The Centrifugal Unloader Valve Assembly keeps the pump unloaded during startup so the motor can come up to speed...Price: $73.02 -
Kellogg 335TVX Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 3 - 5 HP #01999A
Price: $1,207.64Old Part Numbers: R335HUComplete Kellogg 335 replacement air compressor pump assembly with flywheel and air filter. 3 - 5 HP. For start/stop electric units or for constant-run as used in gas units...Price: $1,207.64 -
Oil Site Glass 1", 300 PSI, High-Pressure (HP) P-1030-5 #019587
Price: $21.09Old Part Numbers: CK48047, 032-0127Oil sight glass (metal and glass). Measures 1" inch MPT (actual Outside Diameter (OD) measurement is 1-1/4"). Max 300 PSI. Used on larger commercial-grade air...Price: $21.09 -
Kellogg Valve Hold Down Cover, High-Pressure (HP) #0193CC
Price: $49.74Old Part Numbers: 47929Air compressor valve hold down cover for the high-pressure (HP) valves. Note: This hold down cover comes with a hole drilled for the unloader line (from the crankcase).Price: $49.74 -
Kellogg 321 Rod Insert Bearings, 1 Pair #0195CE
Price: $23.20Old Part Numbers: K4015, 38274Connecting rod insert bearings for the Kellogg 321 air compressor pump. Includes one (1) pair of inserts.Price: $23.20 -
Kellogg 332 / 335 / 452 Intake Valve Cage, HP #019526
Price: $16.15Old Part Numbers: CK47930, 47930Cage for the high-pressure (HP) intake valve on an air compressor.Price: $16.15 -
Kellogg 332 / 335 / 452 Exhaust Cage, HP #019522
Price: $16.15Old Part Numbers: CK47971, 47971Exhaust (discharge) valve cage for the HP valve on the Kellogg 332/335/452 air compressor pump exhaust cage.Price: $16.15 -
Kellogg 335 Air Compressor Pump Ring Set #0195B9
Price: $65.09Old Part Numbers: K335RK, 48177Complete ring set for your Kellogg 335TV air compressor pump. Includes all rings for both HP & LP pistons. Hone the cylinders and stagger gaps in the rings when...Price: $65.09 -
Price: $48.80 -
Air Filter Assembly Kit, 1" MPT #05C118
Price: $135.00Old Part Numbers: CK30310Complete metal air filter assembly for air compressors with filter element plus 3 extra filter elements. 1" MPT threaded inlet. Takes the #14-SOL Filter Element. Fits the...Price: $135.00 -
Kellogg TVX Complete Head Unloading Assembly, 332/335/452 Pumps #0194FC
Price: $118.54Complete Head Unloading Assembly, for Dual Control and Gas Engine-powered applications. Kellogg TVX Complete Unloading Assembly for the model 332/335/452 pumps.Price: $118.54 -
Price: $36.04 -
Kellogg Valve Tool Kit (Set of 4) #018742
Price: $206.75Old Part Numbers: 16868, 16869, 16870, 17867Set of 4. Fits models 141, 211, 321, 331, 351 and 461. You will need these to replace your valves. Damage will occur using home made tools to do this job.Price: $206.75 -
Kellogg Wrist Pin HP, 335 / 452 Pump #019550
Price: $24.75Old Part Numbers: 631-47949, CK47949, 47949Wrist pin for the smaller high-pressure (HP) piston on the Kellogg 335/452 air compressor pumps.Price: $24.75 -
Price: $328.55 -
Price: $18.14 -
Price: $18.14 -
Kellogg Hold Down Cover, L.P. #0193CA
Price: $49.74Old Part Numbers: 47927Hold Down Cover - Low Pressure (LP). NOTE! All hold-down covers are now drilled and tapped with a 1/4" thread. If your original hold-down cover is not threaded, just use a 1/4"...Price: $49.74 -
Price: $291.32
-
Kellogg 335 Air Compressor Pump Rebuild Kit #116260
Price: $451.29Kellogg 335 air compressor pump rebuild kit includes a complete ring set, gasket set, conrod inserts, valve assemblies, and an air filter element. If you have a sudden loss of performance, if air...Price: $451.29 -
Kellogg Piston, 335 / 452 Pump, Low-Pressure (LP) #01A100
Price: $129.73Old Part Numbers: 47944Low Pressure (larger) Piston only, no Rings included. When installing the Piston and Rings, be sure to hone the Cylinder first and stagger the Ring gaps.Price: $129.73 -
Kellogg 325 / 335 Pump Connecting Rod Assembly with Bearing Inserts, Low-Pressure (LP) #019792
Price: $107.37Old Part Numbers: CK38270Kellogg 325/335 air compressor pump connecting rod (conrod) assembly with needle bearing and inserts. Low-pressure (LP), large cylinder.Price: $107.37 -
Intercooler Assembly, Kellogg 335 Pump #01935A
Price: $274.54Old Part Numbers: 47940Intercooler assembly for the Kellogg 335/335TV air compressor pump.Price: $274.54 -
Kellogg Cone Bearing, TMK 14117A, 321 / 325 / 335 Pumps #0193D6
Price: $90.62Old Part Numbers: 13321Cone bearing for the crankshaft. Fits the Kellogg 321, 325, and 335 air compressor pumps.Price: $90.62 -
Kellogg Piston HP, 335 / 452 Pump, 47948 #01955E
Price: $64.05Old Part Numbers: CK47948, 631-47948, 47948Smaller, high-pressure (HP) piston only. For Kellogg 335/452 air compressor pumps.Price: $64.05 -
Price: $26.90 -
Kellogg 321 / 335 Oil Feeder Ring #01A16A
Price: $20.98Old Part Numbers: 17274, CK17274Kellogg 321/335 air compressor pump oil feeder ring. This important component feeds oil to the shaft bearings. Replace if the pump is bogging down or squealing to...Price: $20.98 -
Price: $341.68 -
Kellogg Oil Seal, 335 Pump #1163B4
Price: $30.00Old Part Numbers: CK77519Oil seal for 335 air compressor pump crankshaft.Specifications30mm x 50.8mm x 6.5mmPrice: $30.00 -
On Sale

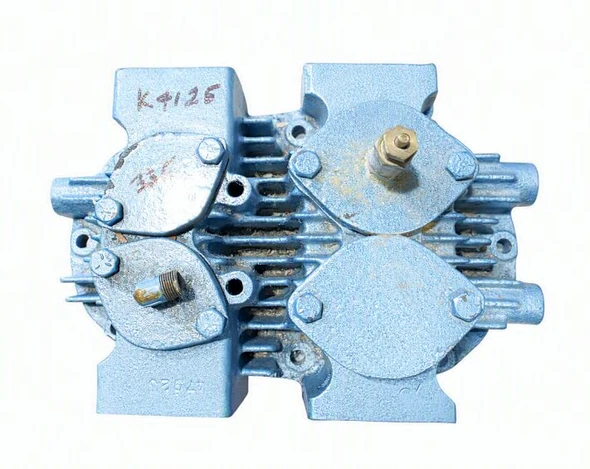

Cylinder Head & Valve Assembly, 335 Pump #019358
Now: $195.69Was: $217.43Old Part Numbers: 47926This is a gently-used Cylinder Head & Valve Assembly for the 335TV air compressor pump. Only minor markings on the paint and light rust on the bottom of the head, which is...Now: $195.69Was: $217.43 -
On Sale
Kellogg Bearing Cup, TMK 14274, 321 / 325 / 335 Pumps #0197EF
Now: $39.33Was: $49.16Old Part Numbers: 98846Cup for the crankshaft cone bearing. Fits the Kellogg 321, 325, and 335 air compressor pumps.Now: $39.33Was: $49.16
