KLA4508065, 137603, 137-603 #01AEEF
Loading Schematic
Model Numbers: KLA4508065, 137603, 137-603
Repair Parts for the Kobalt model KLA4508065, 137603, 137-603 Stationary Single-Stage Oil-Bath Electric Air Compressor
IMPORTANT!
Identify which type of pump by these descriptions below. If not you could receive the wrong parts!
NOTE!
Please identify the pump as an UNOAIR or DAYLEAP type pump when ordering! See 'Extra Details' for photos.
UNOAIR model - PLASTIC Air Filter Canister, bright PLASTIC Oil Fill Cap and the solid clear PLASTIC Oil Sight Glass.
DAYLEAP model - METAL Air Filter Canister, METAL Oil Fill Plug and a BRASS Oil Sight Glass.
Specifications
Pump specs:
- Pump produces 14 cfm @ 90 psi
- Max pressure 155 psi
- Single stage, cast iron 3 cylinder.
Extra Details
UNOAIR:
DAYLEAP:
Manuals
Click here to order and download the Owner's Manual
-
Air Filter / Full Synthetic Air Compressor Oil Maintenance Kit #11663D
Price: $32.47This handy maintenance kit includes a VH series air filter element and one (1) quart of high-quality full synthetic lubricant to keep your air compressor running like a champ! For VT, TQ, and VH air compressor pumps. A dirty filter can cause damage to...Price: $32.47 -
Air Filter / Full Synthetic Air Compressor Oil Maintenance Kit #11663B
Price: $35.65This handy maintenance kit includes a VH series air filter assembly and one (1) quart of high-quality full synthetic lubricant to keep your air compressor running like a champ! Metal air filter with element, 1/2" MPT. For VT, TQ, and VH air compressor...Price: $35.65 -
Dayleap Air Compressor Pump Replacement without Flywheel, with Air Filters, Single-Stage, 4.5 - 5.2 HP #0E4192
Price: $521.48Dayleap replacement air compressor pump assembly without flywheel. Air filters included. Just bolt on, install your belt, flywheel, and discharge tube, and add oil (not shipped with oil). Important: This Dayleap model has a metal air filter canister, a...Price: $521.48 -
1/2" Compression Nut & Sleeve #116353
Price: $2.76Old Part Numbers: 60-8-61-81/4" compression nut and sleeve. Order two, one for each end of the tube.Price: $2.76 -
Air Compressor Regulator Repair Kit #09B7EA
Price: $43.83Air compressor regulator repair kit includes the diaphragm with o-ring, small spring, and valve with o-ring. The regulator controls the amount of air to your hose. Replace this if you're not able to adjust the PSI to your hose or if it leaks.Price: $43.83 -
Air Compressor Pump Gasket Set, Dayleap #09B725
Price: $49.81Air compressor pump gasket kit (dayleap). Includes head-valve plate, cylinder, crankcase, bearing case gaskets, and oil seal. Note: Gasket kit is for the DAYLEAP (metal) style.Price: $49.81 -
V-Belt, 4L540, 54" - VBG23377-VB #0E54C7
Price: $10.60Old Part Numbers: 4L540Air compressor v-belt, 54". Replace if frayed or slipping.Specifications A-type belt, 1/2" wide Outside Dimension: 54" "A" Belt Conversion: A52Price: $10.60 -

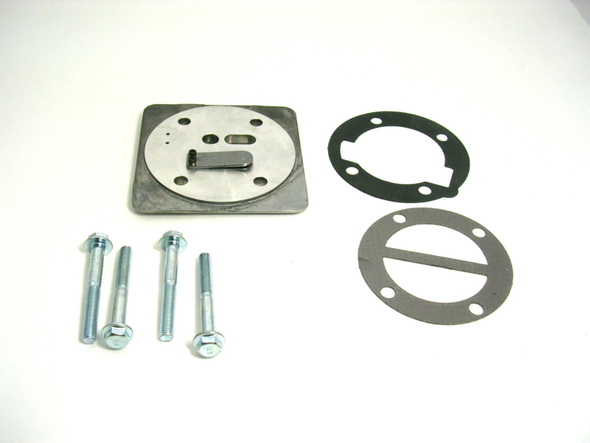

Valve Plate Assembly #09B80A
Price: $61.87Air compressor valve plate assembly. Poor performance or air leaks out of the intake filter while the unit is running? The valve plate assembly is probably the problem.Price: $61.87
