919.176502 #01B0A1
Loading Schematic
Model Numbers: 919.176502
Repair Parts for the Craftsman 919.176502 Stationary Two-Stage Oil-Bath Electric Air Compressor
Specifications
B4900 Pump specs:
- 15cfm @100psi or 13cfm @175psi.
- Footprint is 5.75" frt. to back and 6.75" side to side.
- 13.75" flywheel.
- Comes w/ flywheel & air filter.
- Min RPM 700 Max RPM 1400
- Weight - 29lbs.
- Oil Grade - SAE 40
- Oil Capacity - 44oz.
Extra Details
- Two stage, steel sleeved, aluminum pump used on many units such as Sanborn, Devilbiss, Porter Cable, Coleman Powermate, Craftsman and others.
- Used on B51AT18 & 24 units. Also used on some other manufacturers units.
Manuals
Click here to order and download the Owner's Manual
Technical Documents
Pump Torque specs:
- Head Bolts: 165-230 IN/LBS
- Intercooler Bolts: 165-230 IN/LBS
- Cylinder Bolt: 165-217 IN/LBS
- Bearing Cover Bolt: 50-115 IN/LBS
- Oilpan Bolt: 50-60 IN/LBS
- Conrod Bolt: 185-235 IN/LBS
- Flywheel Bolt: 185-235 IN/LBS
-
Pressure Switch, 145/175 PSI #09AD84
Price: $86.89Old Part Numbers: Z-D20596, D20596OEM replacement pressure switch, 145/175 PSI. This switch replaces the Z-D20596. Replace the Pressure Switch if the unit doesn't cut on or off at the designated...Price: $86.89 -
B4900 Head Gasket Kit #05BF3E
Price: $191.41B4900 Head Gasket Kit. Kit includes the head gasket, inner valve plate gasket, cylinder gasket, two intercooler gaskets, and discharge tube adapter gasket (total of 6). A little silicone gasket...Price: $191.41 -
Air Filter Element, B3800 / B3801 / B4900 Pumps #04A5E7
Price: $15.91Filter Element only for air compressor air filter assembly for the B3800, B3801, and B4900 Pumps. Replacing the air compressor pump's air filter regularly is important to maintain the performance and...Price: $15.91 -
Valve Plate Assembly, B4900 Pump #048AA8
Price: $91.59Old Part Numbers: 6210717280Valve plate assembly (includes inner gasket and valves). If air leaks out of the intake filter or if the compressor just isn't performing like it should, order this kit...Price: $91.59 -
Price: $4.85 -
T29S / B4900 Air Compressor Gasket Kit #048AE0
Price: $157.89Old Part Numbers: 4950055Complete air compressor gasket kit includes valve plate gaskets, intercooler gaskets, cylinder gasket, base gasket, bearing housing gaskets, and aftercooler gasket. If the...Price: $157.89 -

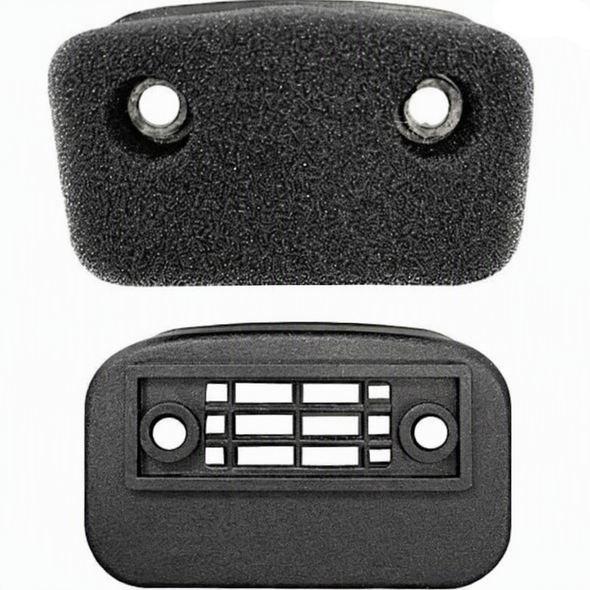

Filter Assembly without Screws (CPI) #05C7F9
Price: $8.32Air filter assembly without screws. Includes element with housing. Protect your air compressor pump from damage.Price: $8.32 -
Cylinder Gasket, B4900 / T29S Pump #048AD8
Price: $45.22We recommend ordering the gasket kit, as it will save you money and will ensure that you have all of the head gaskets. We always recommend replacing all head gaskets at the same time, as the other...Price: $45.22
