Model Numbers: 921.16476, WLB3106016

Repair Parts for the Craftsman 921.16476, WLB3106016 Stationary Single-Stage Oil-Bath Electric Air Compressor

Specifications

• Min RPM 700
• Max RPM 1200
• Max pressure 125 psi
• Max duty cycle 50%
• Oil capacity 18 oz.
• 130 Pump 6.0 cfm @ 90psi (2 HP motor)
• 165 Pump 10.1 cfm @ 90spi (5 HP motor)
• 39 lbs.
• Torque specs (see Schematic on "Description" tab)
• For 2-4.5HP units, you have a 130 pump

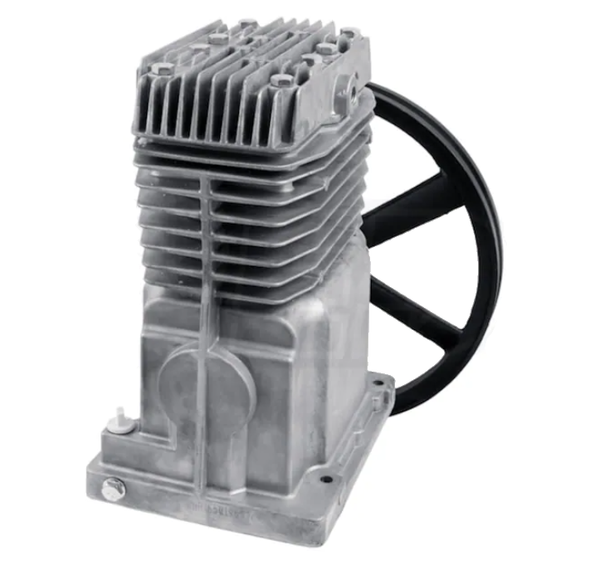

• For 5HP and greater they call it a 165 pump. The only difference is the crankshaft and connecting rods.
• Make sure of your pump model before ordering these parts or a new pump.
• New pump comes with felt style air filter. Old canister style not available with new pumps.
• New style pump has 1/4" FPT & 1/8" FPT outlet ports in head. (Your old head may be 1/2" and will need an adapter.)
• If replacing valve plate or purchasing short block, please order the felt style filter and screen as the new style valve plate will not hold any other filter setups.

Extra Details

Pump Torque specs:

• Head bolt torque 220-200 in lbs.
• Carrier bolt torque 170-230 in lbs.
• Flywheel bolt torque 150-250 in lbs.
• Bottom oil pan torque 30-50 in lbs.
• Connecting rod torque 160-200 in lbs.

Manuals

Click here to order and download the Owner's Manual

Video

This short video shows the different air filter assemblies used on the Sanborn 130 pump and the Sanborn 165 pump.
