XC802000 #01B554
Loading Schematic
Model Numbers: XC802000
Repair Parts for Kobalt XC802000 Stationary Two-Stage Oil-Bath Electric Air Compressor
Specifications
Torque Specs:
- Head Bolts = 265 in-lbs.
- Oil Drain Plug = 177 in-lbs.
- Flywheel = 354 in-lbs.
- Bearing Cap = 265 in-lbs.
- Cylinder Bolts = 221 in-lbs.
- Oil Sight Glass = 88.5 in-lbs.
Oil Capacity = 48 oz
Extra Details
- Air Delivery @ 90 PSI = 11.9 SCFM
- HP = 5
- Number of Cylinders = 2
- Number of Stages = 2
- Voltage = 230 Volts/22 Amps
- Max Pressure = 175 PSI
-
V-Belt, 4L500, 50" #0E54DB
Price: $10.87Old Part Numbers: 154-4L500Air compressor v-belt, 4L500. Replace if frayed or slipping.Specifications A-type belt, 1/2" wide Outside Dimension: 50" "A" Belt Conversion: A48Price: $10.87 -
Campbell Hausfeld / Kobalt Air Compressor Pump Gasket Kit #0221C1
Price: $40.08Complete gasket kit for many Campbell Hausfeld / Kobalt air compressors. Includes: head gaskets, cylinder gaskets, crankcase gaskets, bearing cover gaskets, oil sight gauge gasket, and oil seal for...Price: $40.08 -
Pump Accessories Kit, 5HP/2-Stage #0221C5
Price: $49.99Includes: Air Filter Assembly Crankcase Breather Oil Plug Oil Level Sight GlassPrice: $49.99 -

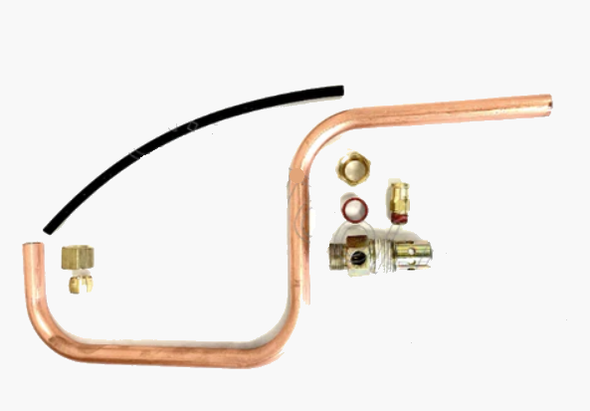

Kobalt Air Compressor Check Valve / Exhaust Tube Kit, 2-Stage Vertical #0221CB
Price: $117.48Kobalt Air Compressor Check Valve / Exhaust Tube Kit includes 1/2" copper exhaust (discharge) tube, 1/2" comp x 1/2" MPT check valve, nylon unloader (bleeder) tube, quick-connect fitting, and...Price: $117.48 -
Air Compressor Pressure Switch, 145/175 PSI #0221B7
Price: $87.74Replacement OEM Pressure Switch, 145 cut-in PSI, 175 cut-out PSI. Replace the pressure switch if the compressor no longer cuts in or cuts out at the designated pressure (PSI), if the unit doesn't...Price: $87.74 -
Kobalt Air Compressor Pump Flywheel Kit, 5 HP, 2-Stage #0221C3
Price: $130.80Flywheel Kit for the Kobalt 2-Stage XC002500AV air compressor pump. Includes: flywheel, flywheel key, bolt, and washers.Specifications 14.3" O.D. (outside diameter) Double "A"-groovePrice: $130.80 -
Air Filter Element, 5 HP, 2-Stage #0221C7
Price: $24.94Replacing the pump's air filter regularly is important to maintain the performance and longetivity of your air compressor. A clean filter element prevents dust and debris from clogging the valve...Price: $24.94 -
Kobalt Air Compressor Valve Replacement Kit, Two-Stage, 5 HP #0221BD
Price: $74.56Valve plate kit for the Kobalt XC002500AV V-Twin, Two-Stage air compressor pump includes both valve plates with valves, retainers, and screws. Note: Does not include gaskets. Order the gasPrice: $74.56 -
New XC002500IP Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 5 HP #0221B5
Price: $487.94CompletePrice: $487.94 -
X0025 Intercooler Kit #022292
Price: $48.12Intercooler Kit for XC002500AV pump. Includes the Intercooler, both Elbows, and Safety Valve. Replace if kinked or if leaking air.Price: $48.12 -
Kobalt Air Compressor Pump Ring Set, 5 HP, Two-Stage #0221BF
Price: $89.54Ring Set for both pistons for the Kobalt v-twin, two-stage air compressor pump. Includes stagger rings and hone cylinders.Price: $89.54 -
Kobalt Air Compressor Pressure Switch Kit, 5HP, Two-Stage Vertical #0221CD
Price: $115.01Kobalt Air Compressor Pressure Switch Kit, 5HP, Two-Stage Vertical includes pressure switch, pressure gauge, safety valve, pipe nipple, and pipe plug. Our site is easy to shop with online schematics,...Price: $115.01 -
5 HP Electric Motor, 208/230 Volts, Single-Phase, 3,600 RPM #116763
Price: $291.40Air compressor duty 1205T-ODP electric motor. 5 HP, 208-230V, 3,600 RPM, 7/8" Shaft, 143/5T Frame. The 1205T-ODP is a popular 5 HP motor for home and shop air compressors.Specifications Model:...Price: $291.40 -
Price: $74.37
-
PISTON/CONROD ASSY 5HP 2ST #02228A
Price: $92.72Includes Both Pistons, Piston Pins and both Connecting Rods. Does not include the pin retainers.Price: $92.72
