8010, 8010A #01AC58
Loading Schematic
Model Numbers: 8010, 8010A
California Air Tools 8010/8010A Portable Ultra-Quiet Oil-Free Air Compressor Repair Parts
Extra Details
NOTE! Two different Pressure Switches were used on this unit in the past (#43 on the diagram). Be sure to choose the switch that matches your original! The difference is the Unloader Valve on the side of the switch; one has a straight compression fitting and the other has a 90° (side) compression fitting.
The 8010 and 8010A models are identical, except for the air tanks; the 8010 uses a steel tank and the 8010A uses an aluminum tank.
-
![PTFE Hose Black 8mm Uploading Tubing - 1 ft [180421] #01A525](https://cdn11.bigcommerce.com/s-mtbw6a63iq/images/stencil/590x590/products/41933/52129/350872135__22909.1784135165.png?c=1 "PTFE Hose Black 8mm Uploading Tubing - 1 ft [180421] #01A525")
PTFE Hose Black 8mm Uploading Tubing - 1 ft [180421] #01A525
Price: $6.17Old Part Numbers: 180421, 184218mm.Price: $6.17 -
On Sale

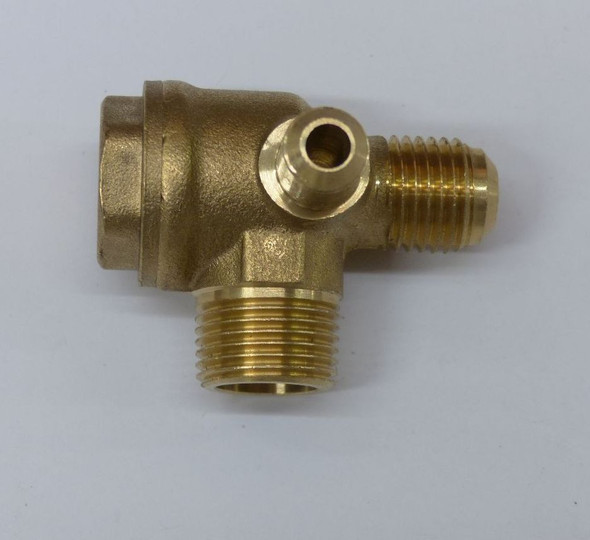

Check Valve, 1HP #01A470
Now: $22.34Was: $24.75If your unit has a hard time restarting when trying to cycle, order this. If your pressure switch is leaking out of the small bleeder valve on the side (or underneath), order this valve. NOTE: This...Now: $22.34Was: $24.75 -
On Sale
Ball Valve Drain Cock, 1/4" NPT #0E5381
Now: $7.92Was: $8.641/4" Ball Valve Drain Cock for air compressors. Keep your tank from rusting. Replace this if it is leaking or will not work.Now: $7.92Was: $8.64 -
On Sale
Air Filter Assembly, 1HP #01A472
Now: $14.58Was: $15.74NOTE! This Filter will only fit 1HP models. Order part number 90260 for 2HP models - Click here for SKU 90260 Replace periodically to ensure smooth operation of your air compressor.Now: $14.58Was: $15.74 -
Safety Relief Valve, 1/4" MPT, 140 PSI #116341
Price: $11.48Old Part Numbers: SRV250140Air compressor safety relief valve, 1/4" MPT, 140 PSI. If your valve leaks below the pressure listed on the side of the valve, replace this vital safety feature...Price: $11.48 -
Price: $39.20 -
Regulator #01A50B
Price: $21.84Old Part Numbers: 90506-RRegulator for California Air Tools air compressor. Regulator (Round)Price: $21.84 -
Air Compressor Pressure Switch, 90/120 PSI, 4-Port, 1/4" NPT #11639C
Price: $48.70Old Part Numbers: LF10-4H/90-120-SFurnas-Style Pressure Switch, 90/120 PSI, 4-Port Manifold, On/Off Lever Switch and Unloader Valve. Replace the pressure switch if the compressor no longer cuts in or...Price: $48.70 -
California Air Tools 1/4" Industrial Quick Connect #01A47E
Price: $30.341/4" Quick Connect for California Air Tools air compressors.Price: $30.34 -
Pressure Switch, 1/4" FPT, 4-Port, Bend/Lever Switch, 85/125 PSI #01A209
Price: $27.96Air compressor pressure switch for original equipment switches Furnas 69MB7LY, LeFoo LF10-1H2, Senco, and others. Furnas/Hubbell-type air compressor switch. This is a trusted aftermarket part that is...Price: $27.96 -
Big Pressure Gauge 2.0″ Face, 1/4" NPT Center Back-Mount, 180 PSI #01A48E
Price: $22.05OEM replacement Pressure Gauge 2.0″ Face, 1/4" NPT Center Back-Mount, 0-180 PSI.Price: $22.05 -
Cylinder Head O-Ring / Rubber Gasket #01A4AA
Price: $15.54O-ring Seal (Gasket) on top of the Valve Plate. Usually replaced when the Cylinder O-ring is replaced or if replacing the Valves.Price: $15.54 -
On Sale
Transfer Tube 14" Exhaust Pipe #01A4DC
Now: $20.45Was: $24.02Old Part Numbers: SYQ52-4610Transfer tube 14" Exhaust Pipe for California Air Tools air compressorNow: $20.45Was: $24.02 -
Cylinder O-Ring #01A4A8
Price: $15.54Old Part Numbers: DY10U1 HP Obturating Ring. This is the O-ring Seal that installs on top of the cylinder cup (bottom of the valve plate).Price: $15.54 -
Pressure Gauge, 1.5" #01A48C
Price: $19.85Pressure Gauge for California Air Tools compressors. Replace if the gauge needle doesn't move or if leaking. Specifications 1.5" face back-mount gauge 175 PSI-ratedPrice: $19.85 -
Piston Compression Ring #01A4A0
Price: $36.46Piston Ring [MP1005]. Replace this if your compressor is producing little pressure, or no pressure at all. For 1 HP units.Price: $36.46 -
Air Compressor Wheel Replacement #01A492
Price: $36.506" White Wheel. Air Compressor Wheel Replacement. NOTE! When ordering the wheel you will also need to order the associated hardware: 90235, Bolt (qty. 1) 91Price: $36.50 -
Cylinder Head #01A4AC
Price: $35.96Bare Head for the California Air Tool pump. Replace if damaged or leaking. Don't forget to order the Head O-ring Gasket.Price: $35.96 -
Air Inflow Valve #01A4BC
Price: $33.60Intake (Inflow) Valve for California Air Tools pumps. This is the valve on the bottom of the valve plate. If air leaks out of the intake filter or if the compressor just isn't performing like it...Price: $33.60 -
Price: $9.24 -
Price: $6.32 -
Gassing Exhaust Valve #01A4B8
Price: $44.10Gassing (exhaust) valve for California Air Tools pumps. This is the valve on top of the valve plate. If air leaks out of the intake filter or if the compressor just isn't performing like it should,...Price: $44.10 -
Price: $10.64 -
Connecting Bar Hex Nipple #01A498
Price: $17.50Old Part Numbers: Connecting Bar1/4" x 1/4" NPT hex pipe connector. One end installs into the manifold of the pressure switch and the other end connects the air regulator to it.Price: $17.50 -
Price: $17.95 -
Valve Plate, 1 HP #01A4BA
Price: $36.96Bare Valve Plate for California Air Tools 1 HP pumps. Replaced if damaged or warped.Price: $36.96 -
Price: $8.40 -
Cylinder, 1 HP #01A4A6
Price: $36.46Cylinder Cup for 1 HP pumps. Replace when replacing the Piston (Compression) Ring.Price: $36.46 -
Power Cord w/ Plug 110V #01A4F0
Price: $26.00Power Cord with Plug for California Air Tools air compressors, 110V.Price: $26.00 -
Pump / Motor Replacement, Ultra Quiet, Oil-Free, 1.0 HP, 110V/60Hz #01A5A8
Price: $248.00California Air Tools 1 HP air compressor motor/pump assembly. Comes complete with: capacitor, air filter, and (4) shock struts. Simply bolt on, wire it up, install your air filters and discharge...Price: $248.00 -
Price: $8.40 -
Capacitor SP-9413-O, 1HP Units #01A827
Price: $21.0050mf for all 1 HP motors. Please note: Capacitors can not be returned for a refund unless proven to be defective.Price: $21.00 -
![[MP-1012] CYLINDER HEAD SCREW #01A4AE](https://cdn11.bigcommerce.com/s-mtbw6a63iq/images/stencil/590x590/products/41825/23705/b109fbcb2fdbaa662d9eb23d2419ffcf__10114.1679513973.jpg?c=1 "[MP-1012] CYLINDER HEAD SCREW #01A4AE")
Price: $4.40 -
Capacitor, SP-9413, 1HP Units #01A7F8
Price: $72.4680mf for all 1 HP motors. Please note: Capacitors can not be returned for a refund unless proven to be defective.Price: $72.46 -
California Air Tools Automatic Drain Valve Long Extension Kit #11643A
Price: $142.80The California Air Tools automatic drain valve long extension kit (110V / 60Hz) is designed to eliminate the need to manually drain water and condensate from the air compressor air tank. This kit...Price: $142.80 -
![[MP1016] Limited Block #01A4B6](https://cdn11.bigcommerce.com/s-mtbw6a63iq/images/stencil/590x590/products/41781/23707/88759d6eda20af37858875b9222bb81b__23166.1679513974.jpg?c=1 "[MP1016] Limited Block #01A4B6")
Price: $19.28 -
California Air Tools Automatic Drain Valve Short Extension Kit, 110V / 60 Hz #116443
Price: $134.40The California Air Tools Automatic Drain Valve Short Extension Kit (110V / 60 Hz) is designed to eliminate manually draining water and condensate from air compressor air tanks. This auto drain kit is...Price: $134.40 -
Price: $35.28 -
Price: $9.24 -
Price: $2.65
