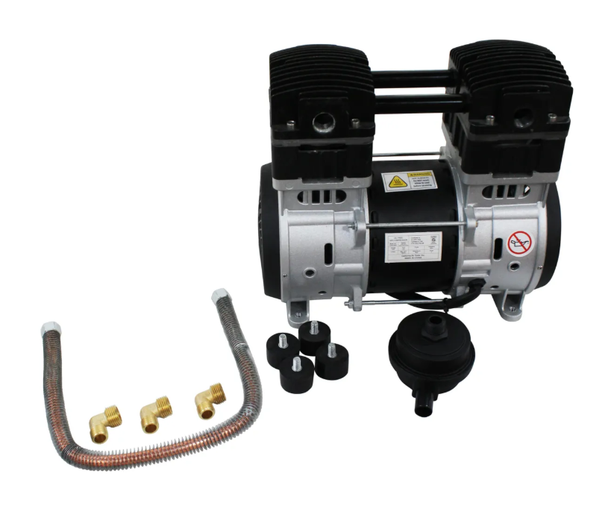

Complete Ultra-Quiet Dual-Piston Oil-Free Motor Pump Assembly, 1.5 HP #116758

This is the replacement 1.5 HP Dual-Piston Oil-Free Motor Pump Assembly for the 20015HP and 20015HPAD air compressor models.

The California Air Tools 1.5 HP Ultra-Quiet & Oil-Free Air Compressor Motor/Pump Assembly is designed to be one of the quietest in the industry, having only 70 decibels of sound.

The 91336 Motor is an Oil-Free, Dual-Piston pump designed to have a life cycle before wear of 3,000+ hours.

The 91336 motor has a valve plate design made with Swedish reed valves which improves air flow, reduces wear, and decrease the sound level. The powerful 1.5 HP motor operates at only 1,750 RPM creating less noise and less wear.

This motor has been designed to increase duty cycle and allow for longer continuous run times.

The Oil-Free Two-Stage Dual Piston Pump System is engineered for high performance and durability. The large piston generates the majority of PSI air volume up to ~145 PSI while the smaller piston generates the final 145-175 PSI pressure volume.

The Oil-Free pump allows for use in a variety of temperatures  (cold starts) and uneven terrains (no oil in the pump).

Designed for the person looking for High Pressure, High Air Flow, Less Service and Maintenance with at Least 30% Less Noise!

• Ultra-Quiet (only 70 Decibels)
• Two-Stage Oil-Free Pump (for Less Maintenance & Costs)
• 4.00 CFM @ 40 PSI
• 3.80 CFM @ 90 PSI
• Maximum Pressure - 175 PSI
• 110V/60Hz
• Low amp draw - 12.0 Amps
• Thermal Overload Protector
• Low Vibration - Motor Speed of 1,750 RPMS
• Less Heat - Dissipates heat more efficiently
• Two Stage Pump
• Extra Long Pump Life of over 3,000 Hours
• Oil-Free pump allows you to use in different temperatures & terrains
• Dimensions (LWH): 12.4" x 6.2" x 11.7"
• 1-Year Limited Warranty

Periodic Maintenance Requirements:

Replace 1.5 HP Air Filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
