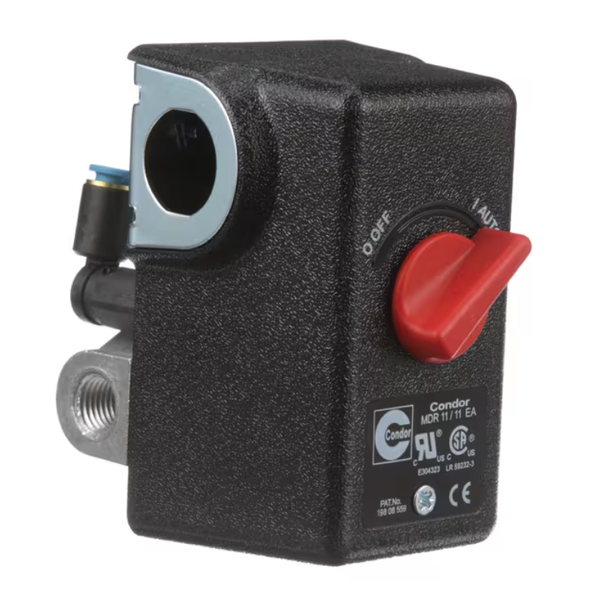

Condor MDR11 Pressure Switch, 100/125 PSI, 4-Port, 1/4" FPT, 90° Quick-Connect Unloader Valve #1166E4

The Condor 11GC2F OEM pressure switch replacement is an MDR11 style, 4-port (1/4" female NPT manifold port) with 90° quick-connect unloader valve. Includes manual on/off dial switch.

Replace the pressure switch if the compressor no longer cuts in or cuts out at the designated pressure (PSI), if the unit doesn't turn on or off, or if there is an obvious air leak from the contacts or manifold.

If the small unloader (bleeder) valve on or under your switch leaks constantly AFTER the unit shuts off, don't replace this part, replace the in-tank check valve. Most pressure switches have a bleeder valve which has a 1/4" plastic or copper line routing to it.

Specifications

OEM Part Number: 11GC2F
Pressure Settings: 100/125 PSI
Manifold Type: 1/4" NPT, 4-port
Auto/Off Dial: Yes
Unloader Type: 1/4" 90° quick-connect (EVWSI)
Weight: .70 lbs
