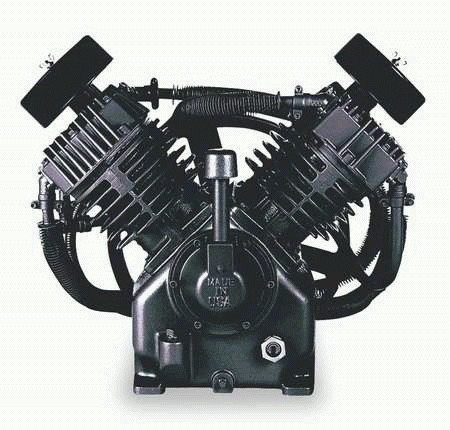

Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 10 HP #01B01A
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Description
Complete air compressor pump assembly including flywheel and air filter assemblies. 10 HP. Just add oil, install the belts and discharge tube, and you're ready to go.
NOTE: This pump is built-to-order and will be manufactured when your order is placed.
IMPORTANT: This pump comes with a 19.5" OD flywheel. If your old pump has the smaller 16.5" OD flywheel, you will need to change out the belts or you will need to order the 16.5" OD flywheel, which is part number PU016700AJ.
Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.
Specifications
- HP: 10 HP
- Stages: Two-Stage
- CFM Delivery: 29.0 CFM @ 100 PSI
- Max PSI: 175 PSI
- Material of Construction: cast iron with steel sleeves
- Flywheel: 19.5" OD double "B" groove
- RPM: 700
- Duty Cycle: 80/20
- Oil Capacity: 4 qts.
- Weight: 245 lbs.
- Dimensions (LxWxH): 26.50" x 22.00" x 27.00"
- Bolt Pattern: 8.06" front-to-back, 9.63" side-to-side
- Bore & Stroke: 4.75" x 3.00" (LP) / 2.50" x 3.00" (HP)
- Outlet: 3/4" FPT
- Warranty: 1 year limited from the date of purchase
Product Fitment
-

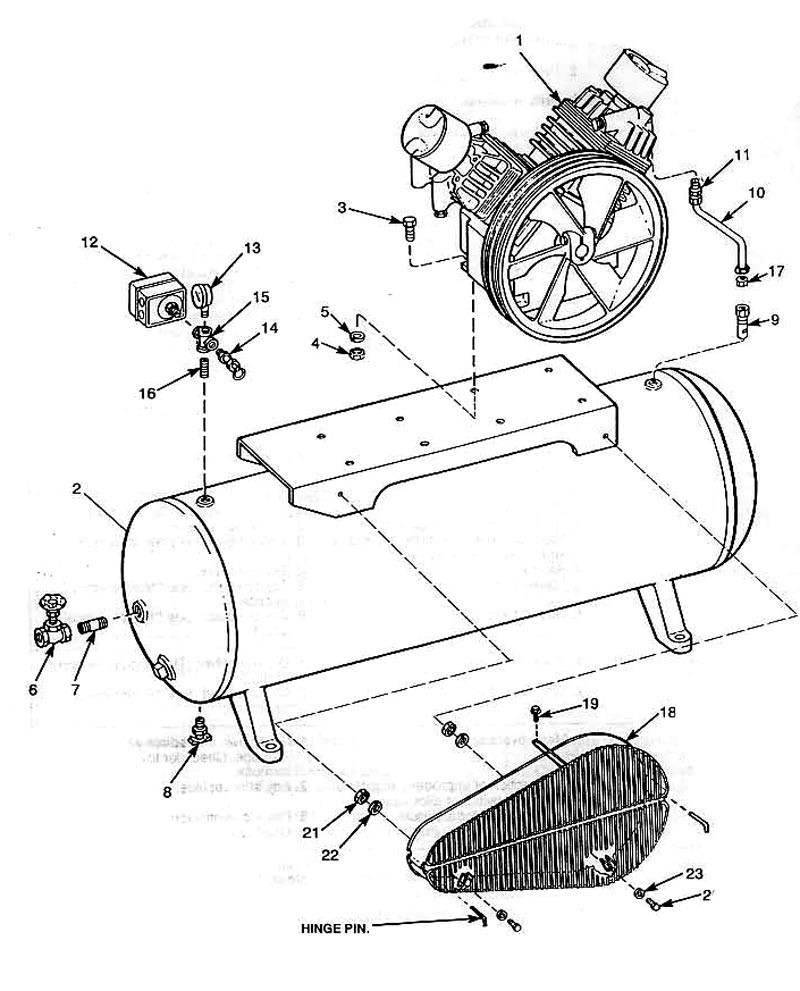

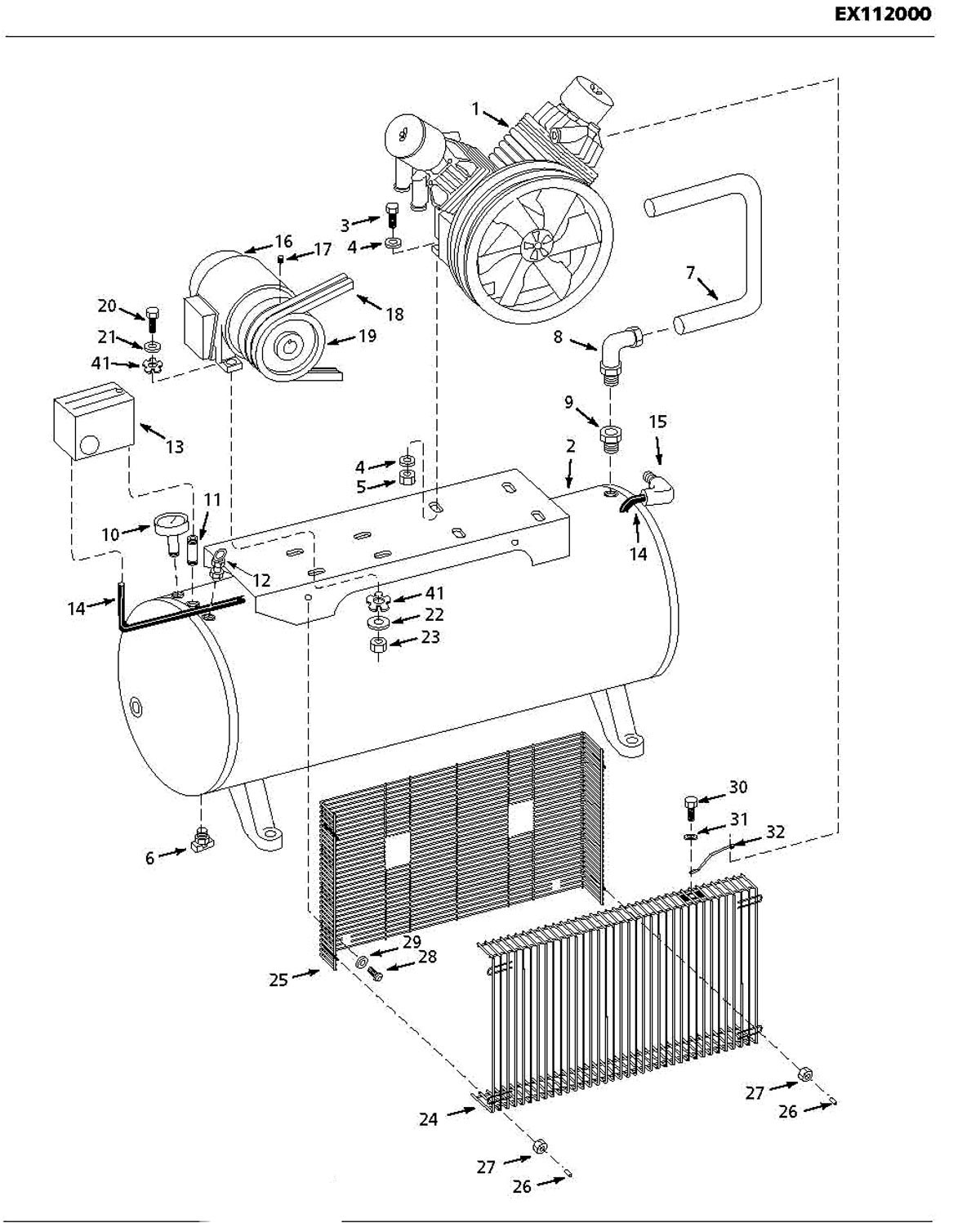

Maxus EX112000, EX1120 Stationary Two-Stage Oil-Lubricated Electric Air Compressor Parts -

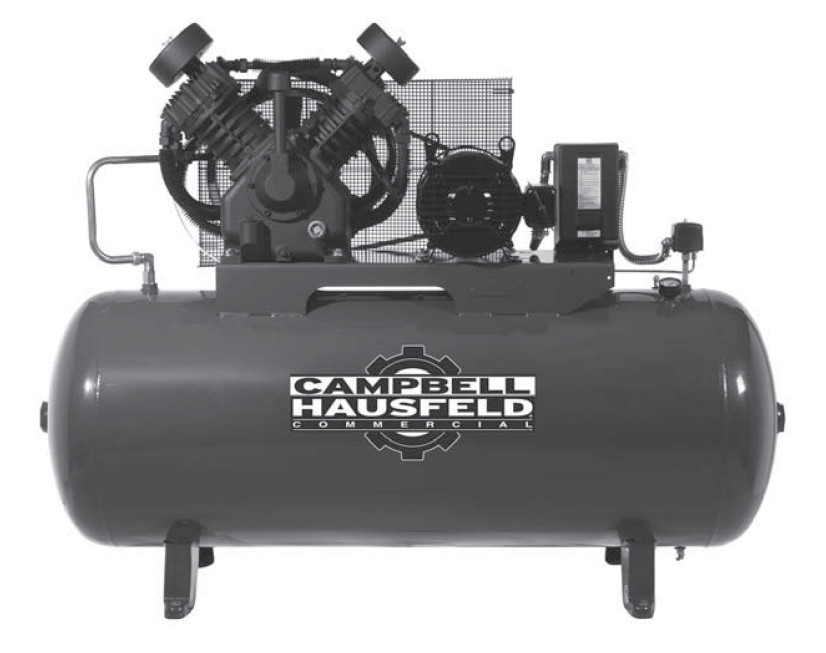

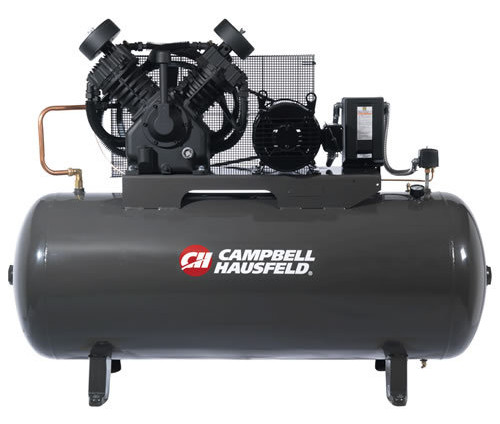

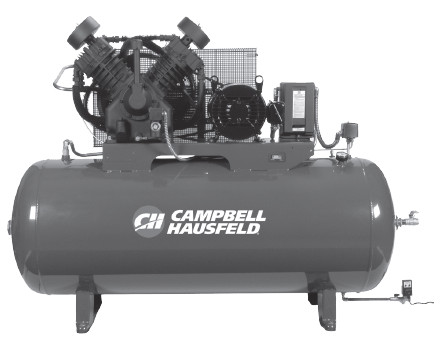

Campbell Hausfeld CI100000PD, CI15K000PC, TX2118 Air Compressor Pump Parts -
Campbell Hausfeld TK000021P Air Compressor Pump Parts -
Campbell Hausfeld CI100000PP, CI15K000PP, TX031403AV Air Compressor Pump Parts -
Speedaire 3Z496, 3Z497 Air Compressor Parts -

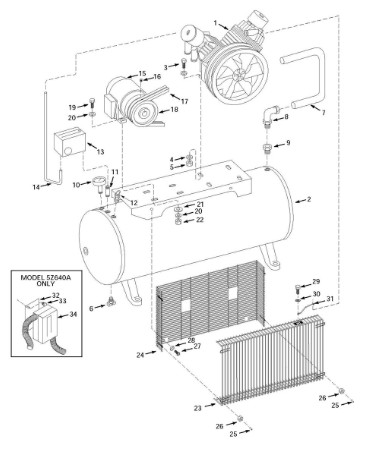

Speedaire 5Z640A Two-Stage Stationary Air Compressor Repair Parts -
Speedaire 5Z402B Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -

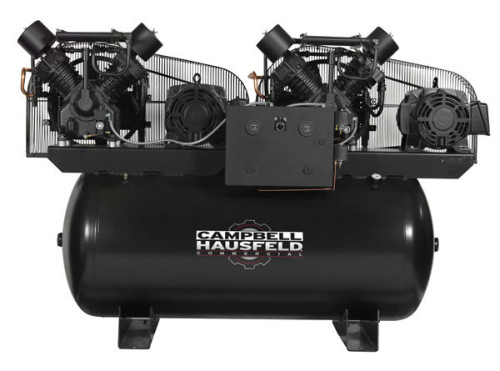

Campbell Hausfeld CE8201FP Stationary Duplex Two-Stage Air Compressor Parts -
Campbell Hausfeld CE8001 Stationary Two-Stage Air Compressor Parts -
Campbell Hausfeld CE800000, CE800100 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
Campbell Hausfeld CE800001 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
Campbell Hausfeld CE800100FP Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
Campbell Hausfeld CE800101 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
Campbell Hausfeld CE800401 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts -
Campbell Hausfeld CI103120HPMS Stationary Oil-Bath Two-Stage Electric Air Compressor Parts -
Speedaire 35WC53 Stationary Two-Stage Oil-Bath Electric Air Compressor Parts
Old Part Numbers: TX2101, 5Z405B, 5Z405, CI100000PD, CI100000, TX2001
