Description

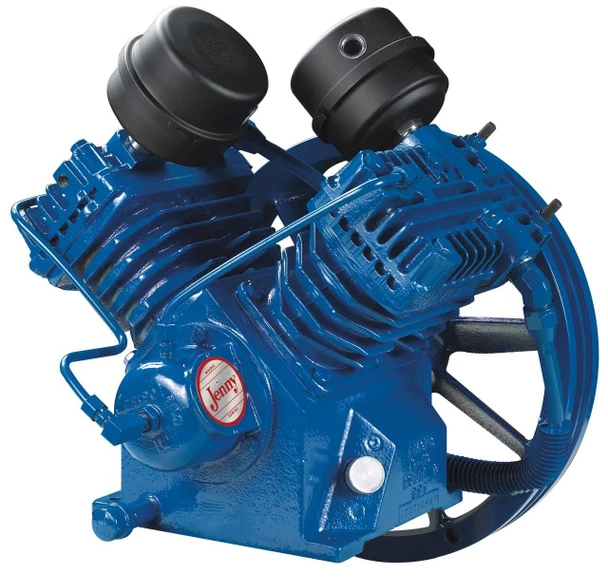

Complete, new GT pump with flywheel and air filters. Two-stage, v-twin pump with cast-iron construction.
See Specs for CFM output. This pump replaces the EQ pump. New pump w/ flywheel & air filter assemblies. Typically used on electric motor-driven units. Has two-groove Flywheel.
Need oil? Click here for Jenny Synthetic Blue air compressor oil to keep your compressor running like new for years to come.
Specifications
- Used on fleet repair trucks and other applications requiring high cfm delivery
- Four-cylinder, two-stage, v-twin, cast iron pump
- 175 psi max
- 2.5" bore x 2.375" stroke
- Flywheel diameter: 13.5" (OD)
- 2 HP = 7.1 CFM @ 175 PSI (Delivered CFM)
- 3 HP = 10.7 CFM @ 175 PSI (Delivered)
- 5 HP = 15.2 CFM @ 175 PSI (Delivered)
- 8 HP (Gas) = 15.4 CFM @ 175 PSI (Delivered)
- 11 HP (Gas) = 16.3 CFM @ 175 PSI (Delivered)
- Min. RPM: 480 / Max RPM: 1,000
- GTW pump has stainless steel valves and galvanized valve plates for corrosive environments
- GTW used on Westinghouse units
- GT300T same as GTW300T
- If you're replacing an EQ, EQW or EQU pump, mounting bolts are the same. Flywheel is 1" larger and takes 4L (1/2") belts.
- Oil capacity: 32 oz.
- Pump weight: 110 lbs.
