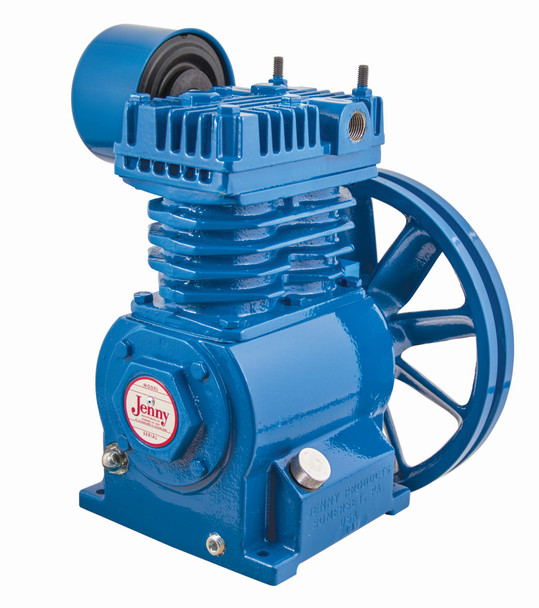

Jenny "K" Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 3/4 - 2 HP #0576B0

Complete K model replacement pump assembly with single-groove flywheel and air filter assembly.

Usually for stop/start applications. Same as the KU pump except the Jenny K pump does not have head unloaders. Made in the USA.

IMPORTANT: This is an old style pump for serial numbers beginning with A, B, C, D, E or F. If your serial number starts with "G" then order new style K pump part# 421-1111.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

CFM output is dependent upon the horsepower of the motor/engine:

• 3/4 HP = 2.7 CFM @ 100 PSI (Delivered)
• 1 HP = 4 CFM @ 125 PSI (Delivered)
• 1 1/2 HP = 6.2 CFM @ 125 PSI (Delivered)
• 2 HP - 8 CFM @ 125 PSI (Delivered)
• 5.5 HP (Gas) = 8.6 CFM @ 125 PSI (Delivered)

Specifications

• HP Rating: 3/4 - 2 HP
• Stages: Single-Stage, In-Line Twin-Cylinder
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 3/4 HP = 2.7 CFM @ 100 PSI (Delivered) / 2 HP = 8 CFM @ 125 PSI (Delivered)
• Max PSI: 150 PSI
• Material of Construction: cast-iron with steel sleeves
• Flywheel: 10.375" OD single "A" groove
• RPM: 560 / 1,140
• Weight: 50 lbs.
• Bore & Stroke: 2.5" x 2"
• Bolt Pattern: 5.75" front-to-back, 5.875" side-to-side
• Dimensions (LWH): 10" x 11.125" x 14.25"
• Duty Cycle: 80/20
• Outlet: 3/8" FPT
• Warranty: 1 year limited

Extra Details

New flywheel size is 10.375" in diameter. If you have the larger 13.25" flywheel, determine the new pulley size for the motor by measuring the outside diameter (OD) of the existing pulley and multiply this number x .75 to come up with the correct new size.

Example:

4.25
x.75
3.1875" pulley (this can be rounded to the nearest pulley size, 3.25" or 3", for instance)

To find out which size belt you will need, simply go to this page and enter the appropriate dimensions: Belt Length Calculator
