Welcome to the latest installment of our "Part of the Week" blog series, where we highlight essential air compressor components that keep your machinery running smoothly. This week, we’re focusing on a crucial element in air compressor systems: the air compressor pulley.

What is an Air Compressor Pulley?

An air compressor pulley is a vital component in the functioning of an air compressor. It plays a significant role in transferring power from the motor to the compressor pump via a belt, ensuring that the pump operates efficiently to compress air. These pulleys come in various sizes and materials, each designed to suit different types of air compressors and their specific requirements.

Importance of Air Compressor Pulleys

  • Power Transmission: The primary function of an air compressor pulley is to transfer power from the motor to the compressor pump. This ensures that the pump can generate the required pressure to deliver compressed air for various applications.
  • Efficiency: A well-designed pulley system can improve the overall efficiency of the air compressor by reducing the load on the motor and ensuring smooth operation.
  • Durability: High-quality pulleys made from durable materials such as cast iron or steel can withstand the demanding conditions of continuous operation, contributing to the longevity of the air compressor.

Types of Air Compressor Pulleys

  1. Fixed Bore Pulleys: These pulleys have a fixed bore size and are typically secured to the shaft with a keyway and set screws. They are known for their simplicity and reliability.
  2. Adjustable Pulleys: Adjustable pulleys allow for minor adjustments in the belt tension, which can be crucial for maintaining optimal performance and prolonging belt life.

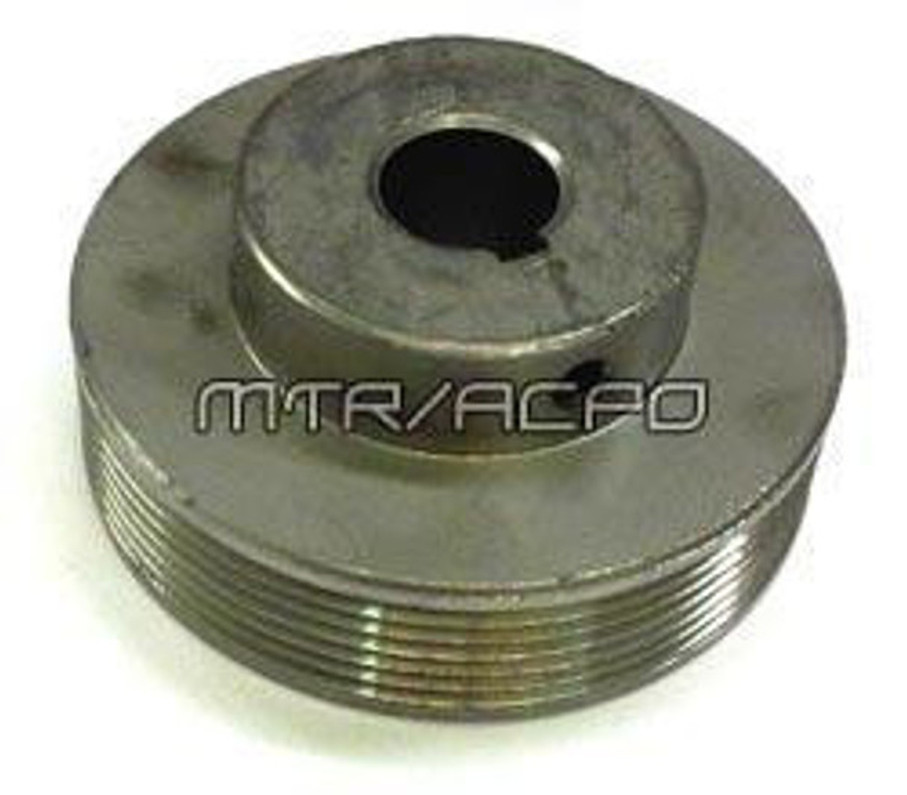

  3. Multi-Groove Pulleys: Designed for use with multi-groove belts, these pulleys provide greater grip and reduced slippage, making them ideal for high-torque applications.
  4. Stepped Pulleys: Stepped pulleys are specialized pulleys that have two or more grooves of different sizes in a stepped configuration. These unique pulleys are used on machines like drill presses and lathes, where the user needs to change the operating speed (RPMs) of the machine depending on the application. This eliminates the need for complex mechanisms to control the machine’s operating speed.

Maintenance Tips for Air Compressor Pulleys

To ensure your air compressor pulley remains in top condition, follow these maintenance tips:

  • Regular Inspection: Check for signs of wear, such as cracks, chips, or warping. Replace the pulley if any damage is found.
  • Proper Alignment: Ensure that the pulley is properly aligned with the motor shaft and the compressor pump. Misalignment can cause excessive wear on the belt and motor drive shaft and reduce efficiency.
  • Belt Tension: Maintain the correct belt tension to prevent slippage and reduce strain on the motor and pulley. Adjust the tension as needed to keep the system running smoothly. Belt tension is integral to proper operation because if a belt is too loose, it will slip and cause the unit to stall. If too tight, it can quickly wear out the pump and motor bearings.
  • Lubrication: Some pulleys may require periodic lubrication to reduce friction and wear. Refer to the manufacturer’s guidelines for specific lubrication instructions.

Why Choose the Right Pulley?

Choosing the right air compressor pulley for your system is crucial for maintaining optimal performance and efficiency. A well-matched pulley will ensure smooth power transmission, reduce wear on components, and extend the overall lifespan of your air compressor.

Whether you're upgrading your current system or replacing a worn-out part, selecting a high-quality air compressor pulley can make a significant difference in your compressor's performance. At Master Tool Repair, we offer a wide range of air compressor pulleys to meet your specific needs, including:

On our pulley page, you’ll also find information to help in choosing the correct pulley for your compressor.

Stay tuned for more "Part of the Week" highlights, where we continue to bring you insights into the essential components that keep your equipment running at its best!
