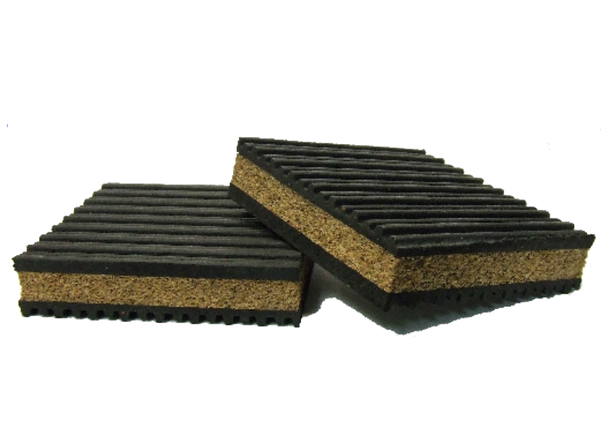

Vibration Pads (Set of 4) #080BCC

You rely on your compressor day in and day out, so protecting it from the damaging effects of vibration is crucial.
Install a set of anti-vibration pads between your compressor and the shop floor to keep things running smoothly.

Specifications

Constructed from High Quality Neoprene Elastomeric Materials

• Designed to Resist Aging, Compression Set, Water and Oil
• Features Alternate Rib Height for Additional Vibration Isolation Under Both High and Low Weight Loads
• 1/2" Cork for Additional Sound Isolation
• Overall thickness is 7/8"

Extra Details

Sizing Information

Pads should be sized so there is no more than 50 pounds per square inch (PSI) of machine weight on it when
installed. Installing a pad equal to the size of the foot with 1/2” overlap all around will generally ensure proper
loading. The pads included in this kit meet the sizing requirements for all ROLAIR compressor models.

Technical Documents

Anti-Vibration Pad Installation Information

Tools required: Corded drill, drill bit, ratchet and socket, mounting hardware

• Ensure mounting surface is level
• Insert one anti-vibration pad under each foot.
• Drill a hole through each pad into the mounting surface. Depth and diameter will depend on type of fastener being used.
• Install fasteners.
• Completely tighten
