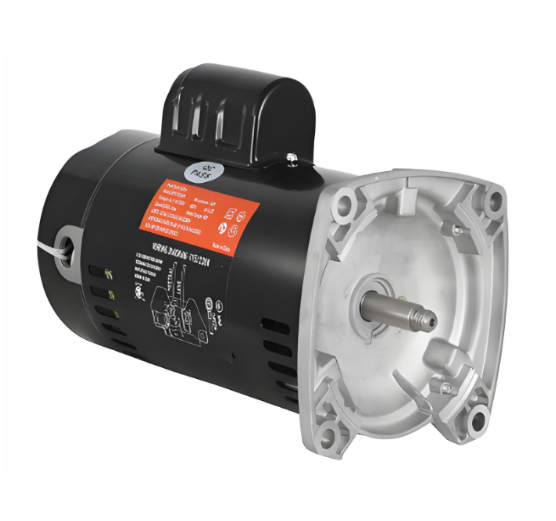

1 HP Square Flanged Pool Pump Electric Motor, 115/230 Volts, Single-Phase, 3,450 RPM, S.F. 1.65 #116717

The DP120156Y-1.65 is a 1 HP Square Flanged Pool Pump Motor with a Service Factor of 1.65 that delivers strong, reliable performance as a direct substitute for the Century B2848 pool pump motor.

This motor has a Service Factor of 1.65.

This high‑performance motor features rugged ball bearings and a corrosion‑resistant stainless steel shaft, providing long‑lasting reliability and smooth, efficient operation season after season.

• Model: DP120156Y-1.65
• Equivalent To: Century B2848
• Power: 1 HP
• Voltage: 115/230 VAC
• Phase: 1
• Frequency: 60 Hz
• Amperage: 14.8/7.4
• SFA: 16.0/8.0
• Speed: 3,450 RPM
• Capacitor Run: Yes
• Rotation: CCW (facing the shaft)
• Service Factor: 1.65
• Thermal Overload Protection: Yes
• Enclosure: ODP
• Insulation Class: F
• Frame: 56Y
• Shaft: Square Flange, 1/2"-20 UNF-2A, RH external threads
• Shaft Material: 303 Stainless Steel
• Weight: 32 lbs
• Warranty: 1-Year Limited
