BTFP02028 - Type 0 #01B2EA
Loading Schematic
Model Numbers: BTFP02028
Repair Parts for Devilbiss BTFP02028 Type 0 Portable Oil-Free Electric Air Compressor
-
On Sale
Ball Valve Drain Cock, 1/4" NPT #0E5381
Now: $7.92Was: $8.641/4" Ball Valve Drain Cock for air compressors. Keep your tank from rusting. Replace this if it is leaking or will not work.Now: $7.92Was: $8.64 -
On Sale
Head Gasket #099AB4
Now: $14.50Was: $16.58Old Part Numbers: 6750400Top Head Gasket for pump. Also recommended to replace the Cylinder Gasket when you replace the Head Gasket.Now: $14.50Was: $16.58 -
Valve Plate Assembly #116329
Price: $15.54Old Part Numbers: 540051, AB-0540051Air compressor valve plate assembly. Poor performance or air leaks out of the intake filter while the unit is running? This is probably the problem. Order if valve...Price: $15.54 -

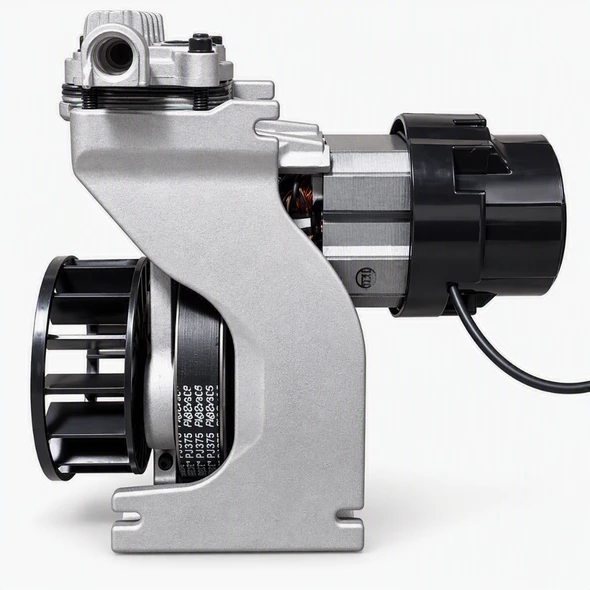

Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 1.8 HP #05C3AC
Price: $142.80Oil-free, direct-drive air compressor pump replacement. Single-Stage, 1.8 HP. Make your unit run like new again with a brand-new pump and motor.Specifications HP Rating: 1.8 HP Stages:...Price: $142.80 -
Piston / Cylinder Kit #05C0EE
Price: $48.96This Piston/Cylinder Kit for the OL295 Air Compressor Pump includes the piston/connecting rod, cylinder barrel, piston cap, cap screw, and piston seal (compression ring). Everything you need to...Price: $48.96 -
Cylinder/Piston Seal Kit #05C0F0
Price: $21.09Kit includes the cylinder and piston seal (compression ring) which will restore compression to your pump. Check valves first to confirm they are not broken or chipped.Price: $21.09 -
Cylinder Plate Gasket, ND4 / F1-300, OL295 / H1820F / BTFP02028 #05C7C8
Price: $7.00Air compressor gasket that goes in between the cylinder cup and the valve plate. Replace if torn.Price: $7.00 -
Piston Seal #05C209
Price: $11.48Air compressor piston seal (ring). Install with the concave side of the seal facing up. VideoClick here to view tech tip video.Price: $11.48 -
Elbow #05C243
Price: $6.48Elbow that connects the unloader line from the air compressor check valve to the pressure switch unloader valve.Price: $6.48 -
Husky Air Compressor Fan #05C207
Price: $6.53Air compressor fan. Keep your pump cool and replace the fan if it's missing any fins.Price: $6.53 -
Air Compressor Quick Coupling, 1/4" #05C2DC
Price: $13.301/4" body x 1/4" MPT air compressor quick coupler.Price: $13.30 -
Drive Belt, PJ 375mm 8-Rib #05C7E5
Price: $20.56Air compressor drive belt, PJ 375mm 8-Rib.Specifications PJ 375mm 8-rib belt BLTFL375-8 PJ375Price: $20.56 -
Screw, Piston Cap #05C20B
Price: $1.40Also available in the C710100ConrodKit or OL295PistonCylinderKit.Price: $1.40 -
Ball Bearing #05C1A5
Price: $11.21Old Part Numbers: AB-9170097If loose or dirty, replace ball bearings when rebuilding air compressor pump.Price: $11.21 -
Cylinder Sleeve #05C1FF
Price: $9.61Cylinder cup for air compressor piston/conrod. Replace if scarred or if you can see any light in between the cylinder wall and the compression ring.Price: $9.61 -
Head, Machined, H1820F / H1826F #05C52E
Price: $15.73Order if your air compressor fell over and cracked the head.Price: $15.73 -
Price: $1.00 -
105-135 PSI Generic WuxiHX-Style Pressure Switch #099A23
Price: $73.66Order if over-pressurizing. If leaking through bottom line, order (105). If your pressure switch is leaking out of the small bleeder valve (after the unit shuts off), then order a tank check valve...Price: $73.66 -
Connecting Rod Washer, H1506F / FWH Models #05C668
Price: $2.05Washer for the air compressor's connecting rod (conrod) bolt.Price: $2.05 -
Price: $0.80 -
Price: $4.60 -
Price: $12.31 -
Price: $1.95 -
Rilsan Tube #09AED9
Price: $15.84Old Part Numbers: AB-9270006, 5140206-65, AB-9270046Tube size: 4mm I.D., 6mm O.D.Price: $15.84 -
Price: $1.00
-
Price: $3.75
-
Price: $3.95 -
Price: $21.08
-
Price: $2.45 -
Price: $6.71
-
Connector, 1/4", CAP2000P-OF #05C5DE
Price: $4.301/4" connector. Connects the air compressor regulator to the tank.Price: $4.30 -
Double Screw, 3/8" MPT x 1/4" MPT #05C1E3
Price: $4.863/8" MPT x 1/4" MPT fitting from the air compressor regulator to the pressure switch.Price: $4.86 -
Price: $1.35 -
Label, Warning Pressure Switch Warn #099BB2
Price: $6.04Old Part Numbers: 5130055-00If your pressure switch is leaking out of the small bleeder valve on the side or if located underneath, order a tank check valve instead, your pressure switch is ok.Price: $6.04 -
Price: $11.48 -
Price: $3.95
-
Power Cable, 3-Pole #05C352
Price: $16.043-pole power cable from the air compressor motor to the pressure switch.Price: $16.04 -
Price: $47.21
-
Price: $10.30
-
Price: $3.75
-
Price: $3.75
