TF000021P, TF-000021P #01A3C5
Loading Schematic
Model Numbers: TF000021P, TF-000021P
Extra Details
Torque Info
Key No., Description & Torque (in/lb).
(5) 5/16-24 Cap Screw = 110-120
(11) 3/8-16 Machine Screw = 250-290
(30) 3/8-24 Machine Screw = 170-190
(33) 5/16-18 Machine Screw = 150-170
(51) 1/2-13 Machine Screw = 630-700
(50) 5/16-18 Machine Screw = 150-170
Key No., Description & Torque (in/lb).
(5) 5/16-24 Cap Screw = 110-120
(11) 3/8-16 Machine Screw = 250-290
(30) 3/8-24 Machine Screw = 170-190
(33) 5/16-18 Machine Screw = 150-170
(51) 1/2-13 Machine Screw = 630-700
(50) 5/16-18 Machine Screw = 150-170
Manuals
-
Intercooler Tube, TF #01AA1F
Price: $131.61Old Part Numbers: TF002000BHIntercooler Tube that connects from one cylinder to the other. Replace if kinked or punctured. Note: Does not include fittings.Price: $131.61 -
Air Filter Assembly, 1" MPT #022D11
Price: $48.62Air compressor air filter assembly includes filter housing and element. Replace your old square style with this new round style. Uses the size "14" Filter Element. Note: The male NPT thread measures...Price: $48.62 -
Air Compressor Pump Ring Kit #01AA67
Price: $112.43Stagger rings and hone cylinders when installing. Includes piston rings for two air compressor pistons. NOTE: For v-twin pumps, you need qty. 2 to rebuild complete pump.Technical DocumentsClick here...Price: $112.43 -
Gasket, Cylinder-to-Crankcase #01AA27
Price: $35.06This is the Gasket in between the pump's crankcase and the cylinder. Also included in a complete Gasket Kit.Price: $35.06 -
On Sale

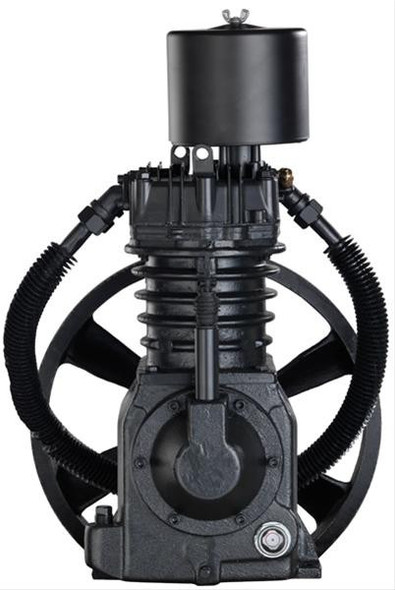

Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 5 - 7.5 HP #01A9BE
Now: $1,051.04Was: $1,142.43Old Part Numbers: CI050000PC, CI070000PD, TF2111, TF2511, CI050000PD, TF2101, TF2501OEM twin-cylinder, two-stage replacement air compressor pump with flywheel, intercoolers, and air filter assembly...Now: $1,051.04Was: $1,142.43 -
Air Compressor Pressure Switch / Manifold Hex Head Pipe Plug, 1/4"-18 NPT #0E52D4
Price: $1.50Old Part Numbers: 3168Air compressor pressure switch/manifold pipe plug, 1/4"-18 male NPT. A very common hex plug used on countless air compressors, this 1/4" NPT countersunk hex plug installs into...Price: $1.50 -
Safety Relief Valve 1/8" MPT, 75 PSI #1162C6
Price: $9.84Old Part Numbers: SRV187075, SRV187-1/8Air compressor safety valve, 75 PSI, 1/8" male NPT.Price: $9.84 -
Price: $13.60 -
Connecting Rod Assembly, TF Pump #01AA2B
Price: $126.97Connecting rod assembly. Includes the needle bearing, insert bearings, bolts, and dipper. Used on many CI0500, CI0700, TF2001, TF2101, TF2111, and TF2912 air compressor pumps.Price: $126.97 -
Needle Bearing For Conrod #01AA2D
Price: $30.76Needle bearing for connecting rod (one used per rod).Price: $30.76 -
Price: $43.58 -
Price: $24.08 -
Air Compressor Pump Gasket Kit #01B360
Price: $124.56Complete gasket kit for "TF" in-line, two-stage air compressor pump used on many Craftsman and Speedaire units. Includes head gasket, cylinder gasket, crankcase gasket, bearing cover gaskets, oil...Price: $124.56 -
High Pressure (HP) Piston Assembly #01AA69
Price: $280.04Smaller, high-pressure (HP) piston with rings. Stagger rings and hone cylinder prior to installing.Price: $280.04 -
Piston with Rings, Low Pressure (LP) #01AA6B
Price: $173.79Larger, Low-Pressure (LP) Piston with rings. Stagger the rings and hone cylinder prior to installing.Price: $173.79 -
Price: $45.28 -
Price: $42.44 -
On Sale
Cone Bearing For Crankshaft #01B2B3
Now: $93.29Was: $116.61Cone Bearing for crankshaft. Includes one bearing. Order two if both are needed.Now: $93.29Was: $116.61 -
Price: $4.30 -
Price: $18.79 -
Price: $14.36 -
Price: $6.16 -
Price: $24.98 -
Price: $24.54
-
Price: $18.09
-
Price: $14.55
-
Price: $25.61
-
Price: $24.67
