Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 5 - 7.5 HP #01A9BE

(No reviews yet) Write a Review
Calculated at Checkout
On Sale
Now: $1,139.95
Was: $1,175.90


Old Part Numbers: CI050000PC, CI070000PD, TF2111, TF2511, CI050000PD, TF2101, TF2501

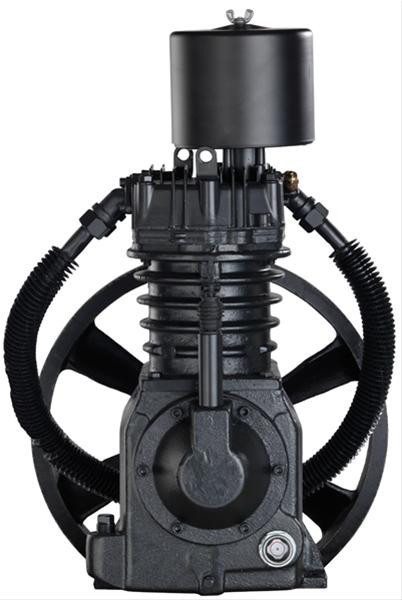

OEM twin-cylinder, two-stage replacement air compressor pump with flywheel, intercoolers, and air filter assembly. 5 - 7.5 HP.

Note: This replacement pump is a splash-lubricated pump (original pump was a pressure-lubricated pump). This part number replaces both the TF2101, TF2111, TF2501 and TF2511 pumps.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.


  • HP: 5 HP to 7.5 HP
  • CFM Delivery: 25.1 @ 175 PSI (w/ a 7.5 HP motor), 17.1 CFM @ 175 PSI (with a 5 HP motor)
  • Max PSI: 175 PSI
  • Material of Construction: cast iron with steel sleeves; stainless steel valves for long life
  • Flywheel: 16.5" OD Double "B" groove (4L-style), 1-3/8" ID
  • RPM: 800 / 1,020 (depending on motor HP and pulley diameter)
  • Duty Cycle: 80/20
  • Oil Capacity: 2 quarts
  • Weight: 130 lbs.
  • Dimensions (LWH): 21" x 20" x 26.5"
  • Bolt Pattern: 5-3/4" front-to-back, 8-3/4" side-to-side
  • Bore & Stroke: 4-34" x 3" (LP) / 2-1/2" x 3" (HP)
  • Outlet: 3/4" FPT (exhaust on the left side of the pump head, when looking opposite the flywheel)
  • Warranty: 1 year limited from the date of purchase

Extra Details

Use as a replacement pump with the following Campbell Hausfeld compressor models:

CI071080VMS, CI12G030H, CE7000, CE7001, CE7002, CE7003, CE7004, CE7005

CE7006, CE7000FP, CE7001FP, CE7005FP, CE7006FP, EX8006, EX1230, TF211201AJ

Use as a replacement pump with the following Speedaire compressor models:

5F563, 5F565, 5F566, 5Z639, 5Z639, 3JR80, 9H805, 5F565, 4LW38
