TF000021P, TF-000021P #01A3C5
Loading Schematic
Model Numbers: TF000021P, TF-000021P
Extra Details
Torque Info
Key No., Description & Torque (in/lb).
(5) 5/16-24 Cap Screw = 110-120
(11) 3/8-16 Machine Screw = 250-290
(30) 3/8-24 Machine Screw = 170-190
(33) 5/16-18 Machine Screw = 150-170
(51) 1/2-13 Machine Screw = 630-700
(50) 5/16-18 Machine Screw = 150-170
Key No., Description & Torque (in/lb).
(5) 5/16-24 Cap Screw = 110-120
(11) 3/8-16 Machine Screw = 250-290
(30) 3/8-24 Machine Screw = 170-190
(33) 5/16-18 Machine Screw = 150-170
(51) 1/2-13 Machine Screw = 630-700
(50) 5/16-18 Machine Screw = 150-170
Manuals
-
Price: $10.20 -
Price: $38.20 -
Safety Relief Valve 1/8" MPT, 75 PSI #1162C6
Price: $8.29Old Part Numbers: SRV187075, SRV187-1/8Air compressor safety valve, 75 PSI, 1/8" male NPT.Price: $8.29 -

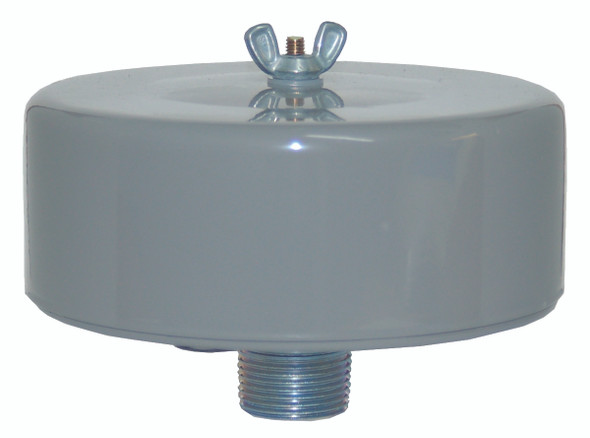

Air Filter Assembly, 1" MPT #022D11
Price: $44.77Air compressor air filter assembly includes filter housing and element. Replace your old square style with this new round style. Note: The male NPT thread measures 1.25" outside diameter, which equates to 1" MPT. Replacing the pump's air...Price: $44.77
