10HPOP, V9918046 #01AFD9
Loading Schematic
Model Numbers: 10HPOP, V9918046
Repair Parts for the Coleman Sanborn models 10HPOP, V9918046 Stationary Two-Stage Electric Air Compressors
Specifications
SC46 Pump specs:
- Import version of Saylor Bealle 707. This pump is a real workhorse!
- 10 HP (suitable for 215T frame motor)
- 36cfm @ 100psi
- 34cfm @ 175psi
- 175psi max pressure
- Cast iron pump
- SC46 2 Stage Industrial Pump Used on C1023E, 103-C45 series.
- Max Rpm 800
- Cast iron construction
- Centrifugal unloading
- 312 lbs.
- Oil capacity 65 oz.
Extra Details
SC46 Pump Torque specs:

Manuals
Click here to order and download the SC46 Pump Owner's Manual
Extras
We have your Coleman Sanborn 10HPOP, V9918046 parts here. Whether you need a pressure switch or a new pump, we have your parts. Coleman Sanborn Sanborn 10HPOP, V9918046 parts are easy to come by at Master Tool Repair. We have helpful sales team members that can assist you with your repair. We have accessories as well as compressor oil to keep your pump running like a top. We keep the most popular Coleman Sanborn 10HPOP, V9918046 parts in stock and we can order most other parts in a matter of a few days. To make ordering easier, we have created the ability for you to order parts by simply enlarging the schematic and then using your mouse to hover over the actual part. You will see the part pop up and are able to order by simply choosing the quantity of parts that you need and adding them to your cart. Make sure to keep spare parts on hand so that your down time will be minimal. Replace your Air Filter and Oil every 3 to 4 months if used frequently. Use straight 30W compressor oil (20W below 34 deg). Drain your tank regularly to prevent rust, especially in humid climates.
Technical Documents
Click here for a Valve Installation diagram
-
SC23 Air Compressor Pump Overhaul Kit #116268
Price: $251.66Old Part Numbers: 165-0064Overhaul Kit for the SC23 in-line, two-stage air compressor pump. Includes: two LP Intake Valves, one HP Intake Valve, two Exhaust Valve Assemblies (HP/LP), one Oil Seal,...Price: $251.66 -
Saylor-Beall Valve Tool #018758
Price: $100.06Valve Tool For Saylor-Bealle pumps (SBT200). Fits pump models 703-707, EC5-10, and UT50-100.Price: $100.06 -
Price: $23.38 -
Price: $29.28 -
Air Filter Assembly Kit, 1" MPT #05C118
Price: $135.00Old Part Numbers: CK30310Complete metal air filter assembly for air compressors with filter element plus 3 extra filter elements. 1" MPT threaded inlet. Takes the #14-SOL Filter Element. Fits the...Price: $135.00 -
SC46 Air Compressor Pump, Complete Assembly, 2-Stage with Unloaders #0186A7
Price: $1,455.59Complete pump w/ flywheel! Usually for constant run units but can be used for start stop units as well.. Import version of Saylor Beall 707. The warranty period on pumps from this manufacturer is (1)...Price: $1,455.59 -

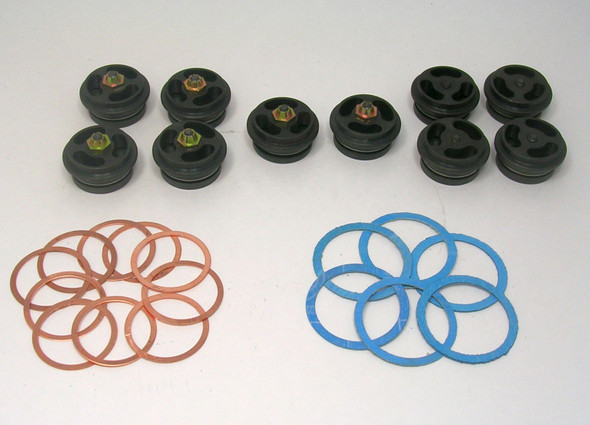

Valve Kit, SC46 / EC10 Pump #0197C2
Price: $196.54Complete valve set with gaskets for the SC46/EC10 two-stage, v-twin air compressor pump. If air leaks out of the intake filter or if the compressor just isn't performing like it should, order this...Price: $196.54 -
Washer, Copper #059206
Price: $29.38Only available in the SC23VK & SC46VK or Overhaul Kit. Note: These washers can be aluminum OR copper.Price: $29.38
