10HPOP, V9918046 #01AFD9
Loading Schematic
Model Numbers: 10HPOP, V9918046
Repair Parts for the Coleman Sanborn models 10HPOP, V9918046 Stationary Two-Stage Electric Air Compressors
Specifications

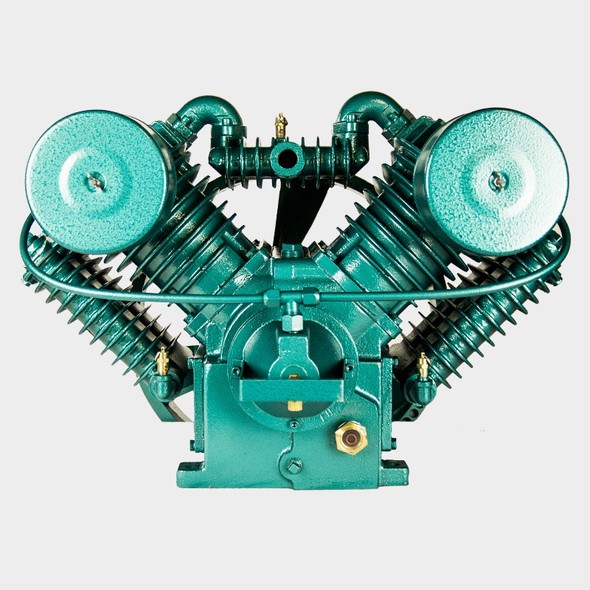

SC46 Pump specs:
- Import version of Saylor Bealle 707. This pump is a real workhorse!
- 10 HP (suitable for 215T frame motor)
- 36cfm @ 100psi
- 34cfm @ 175psi
- 175psi max pressure
- Cast iron pump
- SC46 2 Stage Industrial Pump Used on C1023E, 103-C45 series.
- Max Rpm 800
- Cast iron construction
- Centrifugal unloading
- 312 lbs.
- Oil capacity 65 oz.
Extra Details
SC46 Pump Torque specs:

Manuals
Click here to order and download the SC46 Pump Owner's Manual
Extras
We have your Coleman Sanborn 10HPOP, V9918046 parts here. Whether you need a pressure switch or a new pump, we have your parts. Coleman Sanborn Sanborn 10HPOP, V9918046 parts are easy to come by at Master Tool Repair. We have helpful sales team members that can assist you with your repair. We have accessories as well as compressor oil to keep your pump running like a top. We keep the most popular Coleman Sanborn 10HPOP, V9918046 parts in stock and we can order most other parts in a matter of a few days. To make ordering easier, we have created the ability for you to order parts by simply enlarging the schematic and then using your mouse to hover over the actual part. You will see the part pop up and are able to order by simply choosing the quantity of parts that you need and adding them to your cart. Make sure to keep spare parts on hand so that your down time will be minimal. Replace your Air Filter and Oil every 3 to 4 months if used frequently. Use straight 30W compressor oil (20W below 34 deg). Drain your tank regularly to prevent rust, especially in humid climates.
Technical Documents
Click here for a Valve Installation diagram
-
Saylor-beall/industrial Air Valve Tool #01875A
Price: $112.96(SBT100) Fits models 703, 705-707 (old)Price: $112.96 -
Price: $22.33 -
Flywheel, 19" OD, 2B-Groove For SC46/U1259/EC10/C2 Pumps #11676A
Price: $450.59Old Part Numbers: 044-005119" OD, 1.57" bore ID, "2B"-groove flywheel for v-twin SC46/U1259/EC10/C2 pumps.Extra DetailsThis flywheel takes two "B"-groove belts, which are 5/8" wide.Price: $450.59 -
Price: $10.30 -
H.P. Wrist Pin, For SC23 / SC46 / EC-5 / EC-10 / 705 / 705 Pumps #116738
Price: $25.18Wrist Pin for the HP (High Pressure) piston. Note: Reuse your original retaining clips as they're not included.SpecificationsDimensions: 45mm long x 19mm O.D.Price: $25.18 -
On Sale
Intercooler, SC23/SC46/EC-5/EC-10 Pumps #1163E2
Now: $143.22Was: $179.03Old Part Numbers: UT10055Did your unit fall and break this part? Repair it with a new one. Order gaskets for it as well though.Now: $143.22Was: $179.03 -
Price: $10.75 -
Price: $50.50
