DXCMLA3706056 #01AE07
Loading Schematic
Model Numbers: DXCMLA3706056
Repair Parts for the DeWalt DXCMLA3706056 Stationary Single-Stage Oil-Bath Electric Air Compressor
Specifications
Pump Torque specs:
Extra Details
- This unit uses the 755H pump.
- The 753H and the 755H are the same except for the head and connecting rod.
- Usually, the 755H was found on stationary units and the 753H was found on portable models.
Manuals
Click here to order and download the Owner's Manual
-
Intake Filter, Wool Felt #0E5292
Price: $5.36Old Part Numbers: 019-0052Felt air intake filter for Sanborn 130/165 style air compressor pumps. Order 2 or 3 for spares. Replace this every 3-4 months if the compressor is used frequently. A clean...Price: $5.36 -
Crankcase Breather, VH & VT Pumps #01AA8D
Price: $17.50Crankcase breather assembly for air compressor models with threaded type crankcase for the breather. This assembly tightens into the crankcase; typically has an oil-level sight gauge.Price: $17.50 -
Compression Adapter, 1/4" NPT x 3/8" Male Compression #0E52EE
Price: $7.00Old Part Numbers: 68-6-41/4" NPT x 3/8" OD compression adapter for air compressors. If your pump has an 'X' in front of the serial number and your supply tube measures 3/8" OD, order this part.Price: $7.00 -
Condor MDR12 Pressure Switch, 125/155 PSI, 4-Port, 90 Unloader, On/Off Lever #1163E1
Price: $46.02Old Part Numbers: 034-0184The Condor 12AC2FAKH OEM pressure switch replacement is an MDR12 style, 4-port, 1/4" female NPT pressure switch with manual on/off switch and 90-degree push-connect style...Price: $46.02 -
V-Belt, 4L530, 53" #0E54FB
Price: $11.51Air compressor v-belt, 4L530. Replace if frayed or slipping.Specifications A-type belt, 1/2" wide Outside Dimension: 53" "A" Belt Conversion: A51Price: $11.51 -
Air Compressor Pump Flywheel, 130/165 Pump, 12" OD #058E21
Price: $95.59Old Part Numbers: E10818512" OD Flywheel for the 130/165, 753H/755H, 040-0352, 040-0354, 040-0429, and 040-0430 model air compressor pumps. NOTE: The old pump used a 10" OD flywheel, which is now...Price: $95.59 -
Head Gasket for 753/755H Air Compressor Pumps, L70283 #059455
Price: $34.90Head Gasket only. We always recommend replacing all head gaskets at the same time, as the other gaskets can be compromised once the head is removed. Note: We recommend you replace the Cylinder Gasket...Price: $34.90 -
Safety Relief Valve 1/4" MPT, 175 PSI, ASME #11632C
Price: $11.48Old Part Numbers: SRV250175, 1229O-175Air compressor safety relief valve, 1/4" MPT, 175 PSI, ASME. If your valve leaks below the pressure listed on the side of the valve, replace this vital safety...Price: $11.48 -
Right Angle Unloader Valve, Condor EV1WSi #0596B3
Price: $26.58Old Part Numbers: 5140119-60, EV1WSIPressure switch unloader valve for Craftsman/Powermate air compressors. When the air compressor reaches the maximum air pressure, this valve bleeder releases the...Price: $26.58 -
Pressure Gauge, 300 PSI, 1/4" MPT, Bottom-Mount #080624
Price: $15.53Old Part Numbers: PG0250300BTBottom-mount, 1/4" MPT, 300 PSI air compressor pressure gauge.Specifications NPT: 1/4" Dial / Face: 2" PSI: 300 PSI Bottom-MountPrice: $15.53 -
Gasket, Cylinder #05958C
Price: $32.44Head Gasket only. Replace if you remove the head, if leaking, or you have a loss of compression. Recommended to replace the cylinder gasket as well.Price: $32.44 -
Transfer Tube #058DFB
Price: $34.74Old Part Numbers: 145-0313Transfer tube for units that used a 3/8" OD tube only. Replace if bent or leaking (order compression and sleeves also).Price: $34.74 -
Valve Plate Assembly #058E0B
Price: $78.19Valve plate assembly (includes gaskets). Two valves are located in the head and two valves located in the valve plate (head not included). If air leaks out of the intake filter or if the compressor...Price: $78.19 -
753H / 755H Air Compressor Pump Gasket Kit #058E05
Price: $90.59Complete gasket kit for 753H / 755H air compressor pumps, including crankshaft seal. Includes: head gasket, valve plate / cylinder gasket, crankcase gasket, bearing cover gaskets, and oil seal. If...Price: $90.59 -
Oil Sight Glass #058E1D
Price: $17.47Old Part Numbers: 032-0091, 032-0072Oil Gight Glass with O-ring. Replace if cloudy, cracked, or leaking.Price: $17.47 -
755H Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 3.7 HP #0E4250
Price: $410.54OEM Powermate Inline-Twin Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 3.7 HP. 13.4 CFM @ 40 PSI. 755H cast-iron pump. Includes Flywheel and Felt Air Filter. Need oil?Price: $410.54 -
Price: $47.55 -
Compression Adapter, 1/4" Compression x 1/8" MPT #09B72D
Price: $16.06Air compressor brass compression adapter, 1/4" compression x 1/8" male NPT.Specifications 1/4" Compression x 1/8" MPTPrice: $16.06 -
Price: $8.92 -
Price: $48.20 -
753H Air Compressor Pump Replacement, Complete Assembly With Flywheel, Single-Stage #05AA5D
Price: $471.69Complete 753H Pump Replacement with flywheel. Includes air filter. In-line, twin-cylinder, single-stage pump. Cast-iron construction. NOTE: There is a 5 to 7 day lead time for this pump once ordered,...Price: $471.69 -
Price: $13.85 -
Price: $55.05 -
Head & Valveplate Assembly, 753H #058E4C
Price: $123.93Complete Head/Valve Plate Assembly. Has ONE outlet in the head. Includes: Head Filter elements (canister and felt style) Valve Plate Assy with valves Head Gasket Valve Plate Gasket Head BoltsPrice: $123.93 -
On Sale
Piston Assembly #058E17
Now: $78.75Was: $88.19Piston assy. (includes wrist pin and retaining rings). Two required.Now: $78.75Was: $88.19 -
753H Air Compressor Pump Overhaul Kit #058E4A
Price: $246.28Overhaul kit for the in-line, twin-cylinder 753H air compressor pump, includes complete gasket kit, conrod assembly (x2), conrod insert bearings, piston rings, head kit with air filter, valve plate...Price: $246.28 -
Price: $28.92 -
Price: $38.86 -
Price: $3.75 -

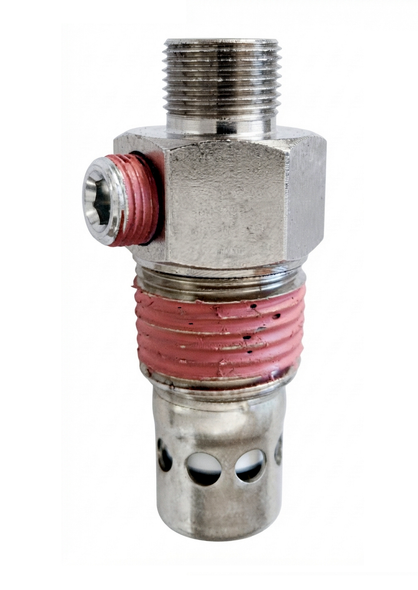

Check Valve, 3/8" Compression x 1/2" MPT with 1/8" Hole and Plug #09B72F
Price: $24.803/8" compression inlet x 1/2" male NPT outlet check valve with 1/8" hole and plug. If the small unloader (bleeder) valve on or under your pressure switch leaks constantly AFTER the unit shuts off,...Price: $24.80 -
End Cap #058E13
Price: $67.87Old Part Numbers: 077-0185 Rear Cap (end cap). Includes 056-0096 (0017) above.Price: $67.87 -
Head Assembly #058E48
Price: $155.52Order (0039) Head Assy below instead.. Has ONE outlet (for large supply line).Price: $155.52 -
Connecting Rod Assembly #058E4F
Price: $112.88For 753H pump (Two required). NOTE: New Conrods do not have Insert Bearings, change in manufacturer of the Conrod. Bearings are machined into the casting of the Rod.Price: $112.88 -
Price: $26.66
-
Price: $71.06
-
Price: $26.18 -
Price: $49.26
-
Price: $49.43
-
Price: $142.35
-
Price: $3.75
