Loading Schematic
Model Numbers: PCFP02003
Repair Parts for the Porter Cable PCFP02003 Portable Oil-Free Electric Air Compressor
-
Valve Plate Assembly #0999B5
Price: $23.06Old Part Numbers: Z-A08548, Z-D29777Valve Plate Assembly, includes Valves and Cylinder Gasket (Head Gasket sold separately). Genuine Porter Cable replacement part. Broken valve causing slow pump up...Price: $23.06 -
Tube Seal #0999B1
Price: $5.36Replace this Tube Seal when replacing the Piston/Cylinder Kit, and if air is leaking from the head at the outlet.Price: $5.36 -
On Sale
Pump and Motor Assembly #099ACA
Now: $98.48Was: $103.66Old Part Numbers: Z-A04615, A16342, Z-D23584, N036515SV, N039790Pump and motor assembly for air compressors (does not include plastic cover or pump head). This is a horizontally-mounted pump (it sits...Now: $98.48Was: $103.66 -
Nipple, 1/4" MPT x 1.5" Steel Pipe #05C5DC
Price: $1.40Old Part Numbers: AB-9053138, AB-9050373, ST070324AV, 90503731/4" MPT x 1.5" steel pipe nipple. Be sure to apply plumber's tape on the threads before installation.Price: $1.40 -
Air Compressor Piston / Connecting Rod Kit #0999AF
Price: $47.34Old Part Numbers: KK-4964Includes piston / rod assembly with piston ring, cylinder, and rod bearing. If you have a sudden loss of performance, replacing the cylinder sleeve and piston ring usually...Price: $47.34 -
Safety Relief Valve, 1/4", 165 PSI #0E537D
Price: $6.48Air compressor safety relief valve, 1/4", 165 PSI. If your valve leaks below the pressure listed on the side of the valve, replace this vital safety feature.Specifications MPT Inlet: 1/4 in. FPT...Price: $6.48 -
Price: $7.56 -
Check Valve, 1/2" NPT #09A488
Price: $16.72Old Part Numbers: A19714, D27022Check Valve, 1/2" male NPT x 1/4" hose barb. If your compressor constantly leaks after it shuts off, this is probabably the problem. If this one-way check valve is...Price: $16.72 -
Head Gasket #0999B3
Price: $23.10Old Part Numbers: CAC-1199Replace this when replacing the piston/cylinder. Since the gasket is graphite, it cannot be reused if the head is removed. NOTE: Used with NEW-style valve plate.Price: $23.10 -
Price: $27.80 -
Cooling Fan, UMC Motor 8mm PL #09A3BE
Price: $9.80Plastic Cooling Fan for the motor. Replace if damaged or missing any cooling fins so your pump doesn't overheat.Price: $9.80 -
Cylinder Gasket, UMC #099B2C
Price: $4.85Cylinder gasket. This is the gasket in between the valve plate and piston/cylinder.Price: $4.85 -

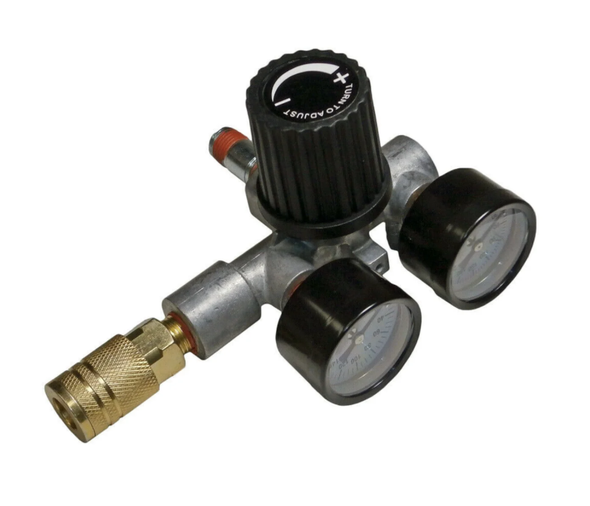

Air Compressor Manifold Assembly #09B530
Price: $45.98Old Part Numbers: N090149, N090149SV, N187003OEM Manifold Assembly. Includes the Air Regulator, Tank Pressure Gauge, Regulated Pressure Gauge, and Coupler. Replace if cracked or broken. The regulator...Price: $45.98 -
Pump Head, UMC #099D76
Price: $15.43Bare pump Head (no gaskets or seals included). Torque head bolts down to 52 in/lbs.Price: $15.43 -
Price: $15.58 -
Screw, #10-24 x .875 Hh #099B2E
Price: $3.95Screw for the pump head. NOTE: Torque head bolts down to 52 in/lbs.Price: $3.95 -
Price: $7.56 -
Shroud Screws #099B32
Price: $4.65Old Part Numbers: D29132 Also available in Fastener Kit # KK-4929.Price: $4.65 -
Price: $6.28 -
Price: $18.58 -
Screw .250-20 x .750 H #099BFE
Price: $5.76Screw that fastens the front and back of the belt guard to each other, and to the compressor base. THD FORMINGPrice: $5.76 -
Price: $3.75 -
Pump Isolator #099B3C
Price: $7.56Old Part Numbers: CAC-1213Isolator for the pump. Keeps the pump from vibrating against the plastic shroud.Price: $7.56 -
SCREW .375-16X.375 U #09A1A1
Price: $3.75Old Part Numbers: SSF-3147Part of piston/connecting rod kit.Price: $3.75 -
Price: $3.95 -
Pressure Gauge #09A486
Price: $18.58Old Part Numbers: A17717, z-A07456, Z-A07456Replace if misreading or broken.Price: $18.58 -
Air Compressor Isolator Kit with Screws #09A18B
Price: $22.49Old Part Numbers: SST-108, A14785Rubber air compressor isolators with screws, three (3) included.Price: $22.49 -
Price: $18.68 -
Price: $7.56
-
Price: $5.40 -
PLUG Replaced with SS-3222-CD #099B20
Price: $6.30Old Part Numbers: 5130032-00For model D55167 type 2 & 3 and others.Price: $6.30 -
Price: $14.82 -
Price: $24.16 -
Price: $21.01 -
Price: $3.95 -
Price: $3.75 -
Price: $3.75 -
Screw #8-32x.375/.34 #099B38
Price: $2.14Old Part Numbers: SSF-993 Also available in Fastener Kit # KK-4929.Price: $2.14
