CMXECXM601 #01B54D
Loading Schematic
Model Numbers: CMXECXM601
Repair Parts for the Craftsman CMXECXM601 Stationary Single-Stage Oil-Bath Electric Air Compressor
-
On Sale
Air Compressor Pump Replacement without Flywheel & Air Filter, Single-Stage, 2 - 5 HP #05B828
Now: $338.13Was: $355.93Replacement air compressor pump assembly i11 with threaded exhaust port service for Craftsman, DeWalt, and Husky compressors with 1/2" NPT threaded exhaust port, 2 - 5 HP. Does NOT include flywheel...Now: $338.13Was: $355.93 -
Air Filter Assembly Intake, 1/2" NPT #059443
Price: $22.42Old Part Numbers: E100048, E100104, E100794, E100434, E101178, E100204, E100846Protect your air compressor pump from damage with this air filter assembly intake, 1/2" NPT. Includes the filter base,...Price: $22.42 -
Drain Valve, 1/4" NPT #1163AE
Price: $3.30Old Part Numbers: 072-0006Replace this air compressor drain valve if leaking or will not work. Prevent rust from ruining your tank by draining your tank daily. Keep an extra around for a spare. This...Price: $3.30 -

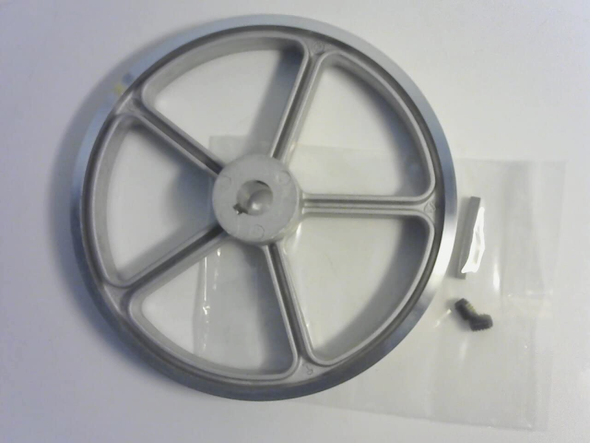

Air Compressor Pulley, Poly-V, 6.923" OD x 5/8" Bore #05AAC5
Price: $85.48Poly-V Pulley, 6.923" outside diameter (OD) with a 5/8" bore (ID). Includes the key and set screws.Price: $85.48 -
Belt, Poly Groove, 50" #0E550B
Price: $22.52Old Part Numbers: 500J6, BT004800AVAir compressor poly-grooved "J6" belt, 50" circumference. Replace if cracked, worn, or slipping.Price: $22.52 -
Flywheel, 12" with Bolt #05AA53
Price: $149.77Genuine OEM Flywheel, 12" OD. Includes Mounting Bolt and Washer.Specifications 12" OD Includes Mounting Bolt & Washer Requirements Fits Husky Models: C602H - Type 3 C304H - Type 1 C603H DeWalt:...Price: $149.77 -
1/2" Compression Nut and Sleeve #05A372
Price: $20.421/2" brass compression and nut and sleeve for rigid tubes. The ferrule/sleeve is built in to the nut.Price: $20.42 -
Compression Nut & Sleeve, 1/4" OD #11624C
Price: $1.03Old Part Numbers: 5130038-00, 5130024-001/4" OD brass compression nut and sleeve for bleeder (unloader) tube for air compressors.Price: $1.03 -
Check Valve #059754
Price: $54.801/2" NPT x 3/8" OD Tube. If your pressure switch is leaking at the unloader valve, replace this part.Price: $54.80 -
Air Compressor Outlet Tube Assembly 1/2", 60 Gallon #05B747
Price: $35.061/2" Discharge Tube with Compression Nuts & Sleeves. Since it will restrict airflow, replace if the tube is kinked, damaged, or leaking.Price: $35.06 -
Pressure Switch, 145/175 PSI, 4-Port w/out Tabs #05AF0B
Price: $95.27Replacement Pressure Switch, 145/175 psi, 4-Port (1/4" NPT) without Tabs. If your pressure switch is leaking out of the small bleeder valve underneath the switch after the unit shuts off, order a...Price: $95.27 -
Pressure Gauge, 2" OD, 1/4" NPT, 300 PSI #05934C
Price: $49.31Old Part Numbers: GA030000AV, A14993, E110954, GA016700AV, GA031000AV, GA015000AVAir Compressor Pressure Gauge. 2" OD Face, 1/4" NPT bottom-mounted thread, 300 PSI gauge. Buy a second one to ensure...Price: $49.31 -
Oil Seal #05AAD0
Price: $22.86Oil Seal for pump. Replace if oil is leaking from the crankcase around the shaft.Price: $22.86 -
Connecting Rod, i11 Service #05AAE7
Price: $31.22Connecting Rod i11 Service for air compressors. This is the bare connecting rod, no other parts included. Replace if damaged or seized onto the crankshaft.Price: $31.22 -
Head Valve Plate Assembly w/ Gaskets #05AACE
Price: $101.96Complete valve plate assembly with head and cylinder o-ring gaskets. If air leaks out of the intake filter or if the compressor just isn't performing like it should, order this kit. A loss of...Price: $101.96 -
O-Ring #0596FF
Price: $16.90Includes two O-Rings (2" OD). This is the large O-ring Seal for the inspection port/bushing on the side and bottom (where the drain cock is) of the air tank.Price: $16.90 -
Pressure Relief Tube #059778
Price: $37.90Pressure Relief Tube (no fittings included). This is the 1/4" OD tube that connects from the in-tank check valve to the pump head.Price: $37.90 -
Safety Valve, 200 PSI, 1/4" MPT #05A59A
Price: $33.981/4" NPT ASME Safety Relief Valve, preset to 200 PSI. If your valve leaks below the pressure listed on the side of the valve, replace this vital safety feature.Price: $33.98 -
Price: $25.80 -
Price: $24.44 -
Price: $71.99 -
Reducer Bushing #0596FD
Price: $44.26Reducer Bushing for the tank, 2" male NPT x 1/4" female NPT. Remember to apply Teflon tape to the threads.Price: $44.26 -
Reducer Bushing #05A4C5
Price: $44.98Reducer Bushing for the tank, 2" male NPSM x 3/4" female NPT. Remember to apply Teflon tape to the threads.Price: $44.98 -
Shroud Screw, #10-14 Plastite, T20 .75L #05A571
Price: $15.44#10-14 Plastite screw for the plastic shrouds. Includes 1 screw.Price: $15.44 -
Price: $128.37
-
i11 Air Compressor Pump Gasket & O-Ring Kit #05AAD8
Price: $90.07Gasket and o-ring seal kit for the in-line, twin-cylinder i11 air compressor pump includes head o-ring, cylinder o-rings, crankcase gasket, oil sight glass, bearing carrier baffle, and oil seal. If...Price: $90.07 -
Air Compressor Set Screw, 5/16" - 18 X 3/8" #05AAC3
Price: $22.00Set screws for air compressor motor pulley. Includes 2. Torque to 145 - 180 in/lbs.Price: $22.00 -
Bearing, 20mm (6204) #05AADA
Price: $20.58Old Part Numbers: ST084202AV-MATBall bearing, 20mm, 6204.Price: $20.58 -
Price: $20.70 -
Air Compressor Pump O-Rings, Qty. 2 #05AAD4
Price: $20.42These are the o-ring seals for the valve plate-to-cylinder.Price: $20.42 -
Piston Assembly, Qty. 2 #05AB05
Price: $113.62Includes 2 Piston Assemblies. Piston (2) Ring Set (2) Pins (2) Retainers (4)Price: $113.62 -
Price: $26.26
-
Price: $22.86
-
Price: $49.31 -
Pipe Nipple, 1/4" NPT-18 x 2.00" #05AAED
Price: $23.38Pipe Nipple, 1/4" NPT-18 x 2.0" length. Make sure to apply Teflon tape to the threads for the proper seal.Price: $23.38 -
Price: $48.72
-
Price: $125.23
-
Price: $19.55
-
Price: $73.41
-
Price: $15.77 -
Price: $17.09
-
Price: $36.28 -
Interconnect Cord #059740
Price: $39.50Old Part Numbers: E105537, E105991Interconnect cord from the air compressor motor to the pressure switch.Price: $39.50 -
Connector Fitting, 1/2” NPT x 1/2” Tube #1166A0
Price: $21.661/2" male NPT x 1/2" compression adapter fitting for the exhaust tube. Note: Torque to 15-25 ft/lbs.Price: $21.66 -
Price: $34.68
-
Price: $24.13
-
Price: $20.16
-
Price: $16.72
-
Price: $22.26
-
Price: $154.96
-
Price: $19.28
-
Price: $22.64
-
Price: $23.43
