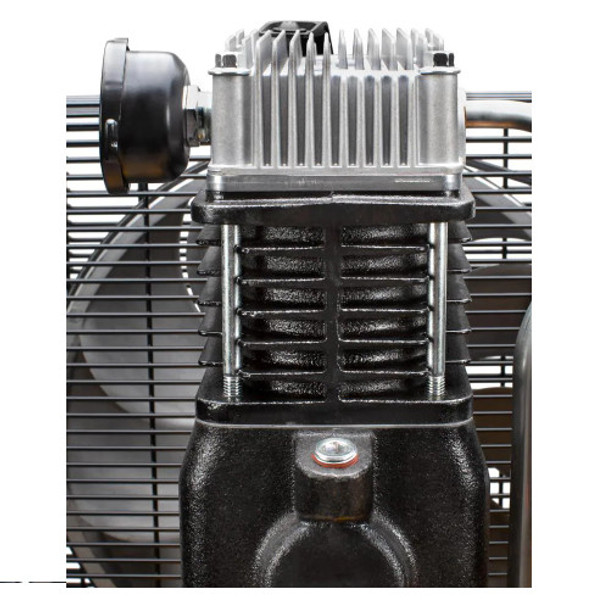

Air Compressor Pump Replacement without Flywheel & Air Filter, Single-Stage, 2 - 5 HP #05B828

DeWalt i11replacement air compressor pump assembly with threaded exhaust port, 2 - 5 HP.

Does NOT include flywheel or air filter assembly; reuse your original flywheel or order a new flywheel and order a new air filter, part number E105207.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

Specifications

• HP: 2 HP to 5 HP
• Stages: Single-Stage
• CFM Delivery: 11.5 SCFM @ 90 PSI / 13.4 SCFM @ 40 PSI (with a 3.7 HP motor)
• Max PSI: 175 PSI
• Material of Construction: cast iron with aluminum head
• Flywheel: N/A
• Duty Cycle: 50/50
• Oil Capacity: 16 oz.
• Weight: 40 lbs.
• Dimensions (LWH): 10.47" x 6.77" x 12.13"
• Bore & Stroke: 2.68" x 1.5"
• Bolt Pattern: 5.74" (front-to-back), 5.88" (side-to-side)
• Outlet: 1/2" FPT (exhaust on the left side of the pump head when looking opposite the flywheel)
• Warranty: 1 year limited from the date of purchase
