Model Numbers: 919.167801
Repair Parts for Craftsman 919.167801 Stationary Oil-Lubricated Two-Stage Air Compressor
-
Check Valve, 1/2" NPT X 1/2" Comp, 1/4" Comp Adapter #116393
Price: $12.69Old Part Numbers: A19715, CAC-4337-1, D288261/2" male NPT x 1/2" compression check valve, with 1/4" compression adapter. For model D55167 type 1 and others. If the small unloader (bleeder) valve on...Price: $12.69 -
Compression Nut & Sleeve, 1/4" OD #11624C
Price: $1.03Old Part Numbers: 5130038-00, 5130024-001/4" OD brass compression nut and sleeve for bleeder (unloader) tube for air compressors.Price: $1.03 -
Intercooler Safety Valve, 1/4", 65 PSI #048B1A
Price: $18.36Old Part Numbers: 2901324963, 136-0049Air compressor intercooler safety valve for the B4900/T29S/B5900 pumps. If your valve leaks below the pressure listed on the side of the valve, replace this...Price: $18.36 -
B5900 Air Compressor Pump Gasket Kit #0497E2
Price: $91.88Complete gasket kit for the B5900 Air Compressor Pump. Includes the head, inner valve plate, cylinder, crankcase, oil pan, bearing cover, aftercooler and intercooler gaskets. If the compressor pump...Price: $91.88 -
Pressure Switch, 145/175 PSI #09AD84
Price: $86.89Old Part Numbers: Z-D20596, D20596OEM replacement pressure switch, 145/175 PSI. This switch replaces the Z-D20596. Replace the Pressure Switch if the unit doesn't cut on or off at the designated...Price: $86.89 -
B5900 Valve Plate Assembly #05BF4E
Price: $214.58B5900/B5000 Valve Plate Assembly. Item comes in 2 separate packages. B5000 and B5900 pump now use the same valve plate. Poor performance or air leaks out of the intake filter while the unit is...Price: $214.58 -
Price: $4.85 -
Oil Site Gauge #048AAE
Price: $30.46Air compressor oil site gauge and gasket. Replace if cloudy or leaking.Specifications 1" diameterPrice: $30.46 -
B5900 Aftercooler kit #116285
Price: $62.41MADE TO ORDER. This kit allows you to remove the aftercooler that comes with the new B5900 pump and install this adapter kit. Simply remove the aftercooler, clean off the gasket material, install the...Price: $62.41 -
Air Filter Assembly with Element #048AB0
Price: $47.62Old Part Numbers: 5281000, 019-0104Air filter assembly with element. Protect your air compressor pump from damage by keeping clean or replacing the air filter. Maximum flow of 35 CFM. Replacing the...Price: $47.62 -
On Sale
B5900 Air Compressor Pump Replacement, Complete Assembly, 5 HP, Two-Stage #1166CD
Now: $699.99Was: $733.50Old Part Numbers: ABP-459, Z-ABP-459, 040-0210, 4116090137B5900 Two-Stage Air Compressor Pump Replacement. Includes flywheel, aftercooler, and air filter assembly. Note: If your old B5900 does not...Now: $699.99Was: $733.50 -
Aftercooler Gasket #048B0C
Price: $12.31Air compressor aftercooler gasket. Also available in the complete Gasket Kit. Note: This gasket fits multiple pumps. Confirm the gasket kit you need is for the HP51 or thePrice: $12.31 -
Air Filter Element #048ADC
Price: $23.04Protect your pump from damage by keeping clean or replacing it. Fits B5900/B6000 pumps. Filter element only.Price: $23.04 -
Head Gasket Kit B5900 #05BF5A
Price: $176.27Four gaskets needed for valve plate and head gaskets. Note: Two-piece valve plate style only. No returns or refunds. If the compressor pump doesn't seem to pressurize as quickly as it should or is...Price: $176.27 -
Connecting Rod Insert #048AC2
Price: $49.50Old Part Numbers: 1000298, 9013013Air compressor connecting rod insert. Note: For T39/B5000/B5900 model pumps, order 2 of these if replacing one rod and order 4 of these if replacing both rods.Price: $49.50 -
B5900/B6000 Air Filter / Synthetic Air Compressor Oil Maintenance Kit #116638
Price: $48.14This handy maintenance kit includes one air filter element for the B5000/B5900/B6000 air compressor and one (1) quart of high-quality fully synthetic lubricant to keep your air compressor running...Price: $48.14 -
Oil Seal, B5900 Pump #05C1AD
Price: $11.78Old Part Numbers: 046-0137Oil seal for the crankshaft (flywheel side) of the B5900 air compressor pump.Price: $11.78 -
Valve Plate Assembly, B5900 Pump #11645A
Price: $103.47Old Part Numbers: 5940051Valve plate assembly for B5900 air compressor pumps. Replace this valve plate assembly to restore compression (ABAC). NOTE: Does not include gaskets. To complete your repair...Price: $103.47 -
Compression Adapter, 1/4" Compression x 1/8" MPT #100B8A
Price: $3.66Old Part Numbers: 68-4-21/8" male NPT x 1/4" compression adapter for air compressor unloader/bleeder line. A very common adapter to attach the 1/4" OD unloader/bleeder line from the unloader valve on...Price: $3.66 -
Price: $15.09 -
B5900 Pump Flywheel, 13.78" OD, 30mm #05C47B
Price: $133.56Old Part Numbers: 2236102113B5900 air compressor pump flywheel, 13.78" OD (outside diameter), 30mm bore. Replace if warped or if missing any cooling fins. Fins should be angled correctly to properly...Price: $133.56 -
B5000 / B5900 Air Compressor Pump Ring Kit, High-Pressure (HP) #04A625
Price: $104.33Includes all four (4) rings for the smaller, high-pressure (HP) piston (hone the cylinders before installation). For the B5000 and B5900 model air compressor pumps. If you have a sudden loss of...Price: $104.33 -
B5900/B6000 Air Filter / Synthetic Blend Air Compressor Oil Maintenance Kit #116637
Price: $44.15This handy maintenance kit includes a B5000/B5900/B6000 air filter element and one (1) quart of high-quality synthetic blend lubricant to keep your air compressor running like a champ! Replace the...Price: $44.15 -
Screw .250-20 x .750 H #099BFE
Price: $5.76Screw that fastens the front and back of the belt guard to each other, and to the compressor base. THD FORMINGPrice: $5.76 -
Price: $1.25 -
Flange Nut #099BC6
Price: $2.25Old Part Numbers: 5130940-00, SSF-8080-ZNFlange nut to attach the wheel to the air tank.Price: $2.25 -
Ring Kit, Low Pressure, B5900 Pump #04A62D
Price: $88.89Includes all 3 rings for the larger, low-pressure (LP) piston for the B5900 air compressor pump. Hone the cylinders before installation.Price: $88.89 -
Head Gasket, B5900 Pump #04946A
Price: $50.95Old Part Numbers: 5050400Graphite head gasket (in between the head and the top of the valve plate) for the B5900 air compressor pump. We recommend ordering the gasket kit, as it will save you money...Price: $50.95 -
Intercooler Gasket, B5900 Pump #049456
Price: $14.66Old Part Numbers: 5950600Intercooler gasket for the B5900 air compressor pump. Also available in the B5900Head Gaskets or 53N0056 Gasket Kit. We recommend ordering the gasket kit, as itPrice: $14.66 -
Base Gasket, B5900 Pump #05C195
Price: $15.01Gasket for bottom oil pan of air compressor pump. If the compressor pump doesn't seem to pressurize as quickly as it should or is leaking in between the head, valve plate, cylinder, or crankcase...Price: $15.01 -
Bolt, M10 x 55mm #05C1B7
Price: $12.46Old Part Numbers: 059-0231Air compressor head bolt, M10 x 55mm.Price: $12.46 -
Price: $25.18 -
Aftercooler Bolt, 10mm, B5900 / HP51 Pumps #05C1B3
Price: $4.4010mm steel aftercooler bolt for B5900/HP51 air compressor pumps.Price: $4.40 -
Bare Head, B5900 Pump #04A65B
Price: $197.78Bare head for B5900 air compressor pump. Order head gasket separately.Price: $197.78 -
Connecting Rod #048AC0
Price: $84.30Connecting Rod Assy. Does NOT include 6222726100 Insert Bearings. Order 2 per rod if needed!Price: $84.30 -
Price: $31.10 -
Valve Plate Gasket #048CC8
Price: $65.16Old Part Numbers: 046-0256, 5940301Also available in the B5900Head Gaskets (4 head gaskets) or 53N0056 Gasket Kit (complete gasket kit). We recommend ordering the gasket kit, as it will save you...Price: $65.16 -
On Sale
B5900 Air Compressor Pump Intercooler Kit #04BD7B
Now: $131.18Was: $145.76Old Part Numbers: 5962020Intercooler tube between the high and low cylinders (order the intercooler gasket as well).Now: $131.18Was: $145.76 -
High-Pressure (HP) Piston, B5900 #048AF4
Price: $65.71Old Part Numbers: 8227103, 048-0043Does not include rings.Price: $65.71 -
Aftercooler, B5900 #1166E0
Price: $172.28Old Part Numbers: 5070101, 2236102167Aftercooler, HP51 pump,Price: $172.28 -
HP Running Gear Kit for B5900 Pump #04A601
Price: $290.76This air compressor running gear kit includes the piston, connecting rod, ring kit, and c-clips for High-Pressure (small cylinder) side only. Don't forget to install new gaskets as well.Price: $290.76 -
Pressure Gauge, 300 psi, 2" Face, Back-Mount #01B596
Price: $27.80Old Part Numbers: GA016703AVReplacement Pressure Gauge, 300 psi, 2" Face, Back-Mount (1/4" male NPT).Price: $27.80 -
Price: $0.90 -
Price: $3.95 -

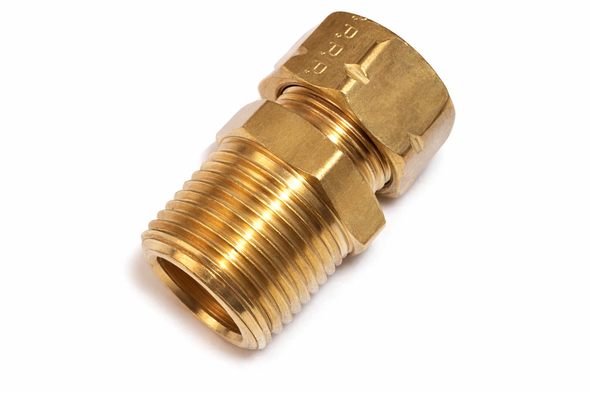

Compression Adapter, 1/2" Male NPT x 1/2" Compression #0ACCF2
Price: $33.34Adapter for your discharge tube, 1/2" male NPT x 1/2" compression with compression nut and sleeve.Price: $33.34 -
Flywheel Bolt #116779
Price: $41.52Old Part Numbers: 6211848500, 2236113361Flywheel Bolt, 10 x 35mm.Price: $41.52
