Valve Stud Torque Procedure for Model HP80
Your HP80 air compressor pump is a workhorse, designed for consistent performance. But like any high-performing machinery, it requires regular attention to ensure its longevity and efficiency. One of the most critical, yet often overlooked, maintenance tasks is the 90-day torquing of the valve studs.
Neglecting this simple procedure isn't just about maintaining your warranty; it's about protecting your investment from serious internal damage that can lead to costly repairs and unexpected downtime.
Why is Regular Torquing So Important for Your HP80?
Over time, the constant vibration and heat cycles within your air compressor pump can cause fasteners to loosen. Specifically, the valve studs on the HP80 pump can gradually lose their precise torque setting. When this happens, it can lead to:
- Reduced Performance: Inefficient compression and lower output.
- Increased Wear: Stress on other pump components.
- Catastrophic Damage: In severe cases, a loose valve stud can cause internal parts to collide, resulting in major pump failure.
- Warranty Voidance: Manufacturers explicitly require this maintenance to uphold your warranty, protecting both you and them.
By spending just a few minutes every 90 days, you can prevent these issues and ensure your HP80 pump continues to deliver reliable air power.
Safety First!
Before you begin any maintenance on your air compressor, always prioritize safety:
- Disconnect Power: Unplug the compressor from its power source or turn off the breaker.
- Bleed Air Pressure: Fully drain all air from the tank by opening the drain valve until the pressure gauge reads zero.
- Allow to Cool: Ensure the pump has completely cooled down if it's been recently operated.
Tools You'll Need:
- Torque Wrench: Essential for accurate measurements.
- 6mm Allen Wrench (Hex Key): For the valve stud.
- Socket Wrench (for acorn nut): Ensure it's the correct size for your acorn nuts.
Step-by-Step Guide: Torquing Your HP80 Valve Studs
Follow these precise steps to properly torque your HP80 pump's valve studs:

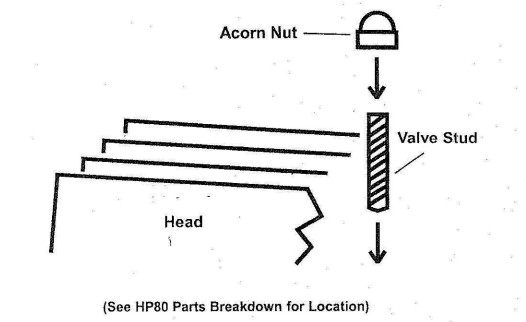

- Locate the Valve Studs: These are typically found on the top of the pump head, often beneath acorn nuts.
- Remove the Acorn Nut: Carefully unscrew and remove the acorn nut from the top of the valve stud.
- Torque the Valve Stud:
- Insert your 6mm Allen wrench into the valve stud.
- Using your torque wrench, tighten the valve stud to 15-17 ft/lbs. This step is crucial for the internal components.
- Reattach the Acorn Nut: Place the acorn nut back onto the valve stud.
- Torque the Acorn Nut:
- Using your socket wrench and torque wrench, tighten the acorn nut to 29-33 ft/lbs. This secures the valve cover.
Important Note: Throughout this entire procedure, ensure that the valve cover bolts remain tight. Do NOT loosen them.
Beyond Valve Studs: Comprehensive HP80 Care
While torquing valve studs is vital, remember it's just one piece of the puzzle for maintaining your HP80 pump. Don't forget other regular maintenance tasks like:
- Checking and changing the compressor oil.
- Inspecting and replacing air filters.
- Draining moisture from the air tank.
- Checking for air leaks.
Need Parts for Your HP80?
Regular maintenance, like the simple act of torquing your HP80 pump's valve studs every 90 days, is key to preventing major issues and ensuring the long life of your air compressor. By being proactive, you'll save time, money, and hassle in the long run.
If you have any questions about this procedure or need assistance finding the right parts for your HP80, our expert team at Master Tool Repair is here to help!
