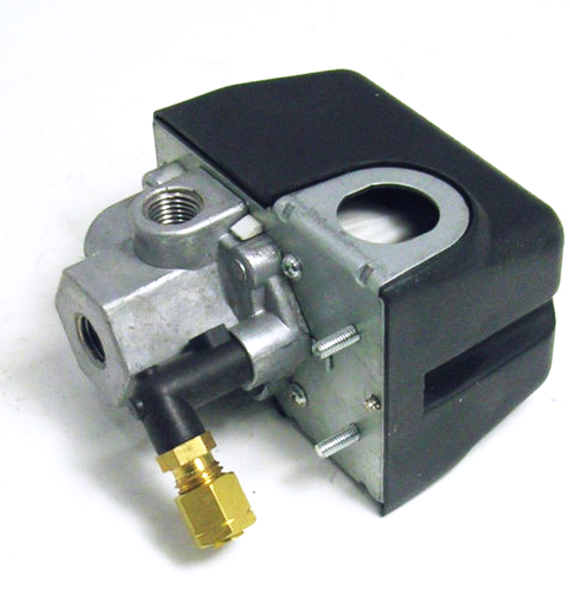

Condor MDR21 Pressure Switch, 95/125 PSI, 4-Port, 90 Unloader, On/Off Switch #1166B8

The Condor 21FC1E OEM pressure switch replacement is an MDR21 style, 4-port, 1/4" female NPT pressure switch with 90-degree compression style unloader valve, auto on/off switch, and is preset to 95/125 PSI.

Replace the pressure switch if the compressor no longer cuts in or out at the designated pressure (PSI), if the unit doesn't turn on or off, or if there is an obvious air leak from the contacts or manifold.

If the small unloader (bleeder) valve on or under your switch leaks constantly AFTER the unit shuts off, don't replace this part, replace the in-tank check valve. Most pressure switches have a bleeder valve which has a 1/4" plastic or copper line routing to it.

Specifications

• OEM Part Number: 21FC1E
• Pressure Settings: 95/125 PSI
• Manifold Type: 1/4" female NPT, 4-port
• Auto/Off Function: Yes
• Unloader Type: 1/4" 90-degree compression (EVWI)
• Weight: 0.88 lbs
