MSL40 Max Air Compressor Pump Replacement without Air Filter, Two-Stage, 10 HP (Electric) #0A12ED

(No reviews yet) Write a Review
Shipping:
Calculated at Checkout
Price: $1,723.50

Description

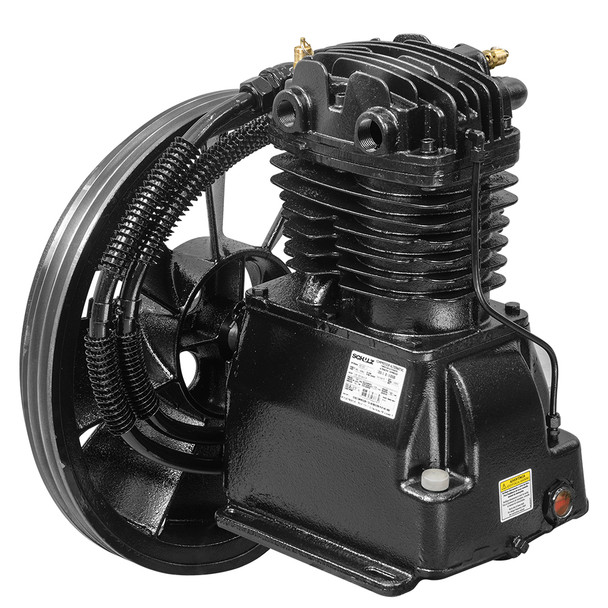

Complete MSL40 Max two-stage, in-line, oil-bath, reciprocating air compressor pump assembly. Includes flywheel and metal intake filters.

The MSL40 Max is heavy-duty, in-line, splash-lube, cast iron pump, and is a real workhorse that will stand up to the most demanding environments and applications. If you need reliable compressed air at your jobsite or garage, you can't go wrong with the Schulz MSL series of air compressor pumps.

NOTE: Does not include air filter assembly, order separately.

  • Splash oil-lubricated pump
  • Solid cast iron construction (CNC machined - ISO 9002)
  • Slotted feet for easy mounting
  • Large Swedish stainless-steel reed valves
  • Oversized crankcase for large oil capacity
  • Maximum pressure 175 PSI
  • Operates at 1,020 RPM for quieter performance
  • 40 CFM @ 175 PSI (displaced)

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

Specifications

  • HP: 10 HP (electric)
  • Stages: Two-Stage, in-line
  • Drive: Reciprocating / Oil-Bath
  • CFM Delivery: 28.4 cfm @ 175 psi (1,020 RPM)
  • Max PSI: 175 psi
  • Material of Construction: Cast-iron with steel sleeves
  • Flywheel: 19.69" OD double "A" groove (4L-style)
  • RPM: 1,020
  • Weight: 166 lbs.
  • Dimensions (LWH): 17.717" x 19.685" x 18.661"
  • Bore & Stroke: 2.5" / 4.724" x 3.622"
  • Bolt Pattern: 6.299" front-to-back, 8.583" side-to-side
  • Outlet: 3/4" female NPT
  • Warranty: 1 year
