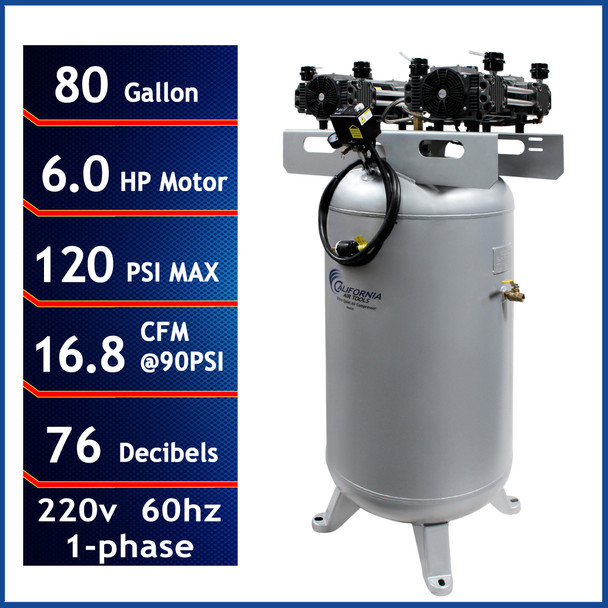

New California Air Tools Powerful 6.0 HP Ultra-Quiet & Oil-Free 80 Gallon Stationary Air Compressor #116657

The new California Air Tools 80060C powerful 6.0 HP Ultra-Quiet & Oil-Free 80 Gallon Stationary Air Compressor is designed to be one of the quietest 6.0 Hp air compressors in the industry, having only 76 decibels of sound.

The 80060C puts out 20 CFM @ 40 PSI and 16.8 CFM @ 90 PSI, giving you all the compressed air you should need, and operates on 220 Volts / 60 Hz / Single-Phase power.

The powerful, twin OLF2800 3.0 HP motors operate at only 1,680 RPMs, creating less noise and less wear. The oil-free OLF motor/pump system is engineered for high performance and durability, and the Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (havin no oil in the pump).

The large 80 gallon steel ASME-certified air tank is ideal for large shops and garages.

Designed for the person looking for power, high CFM delivery, and less maintenance with at least 30% less noise!

Specifications

• HP: 6.0 HP (twin 3 HP motors)
• Decibel Rating: ultra-quiet, only 76 dB
• Pump Type: twin oil-free, direct-drive, twin-cylinder (cleaner air for better tool operation)
• Max PSI: 120 PSI
• CFM Delivery: 20 CFM @ 40 PSI / 16.8 CFM @ 90 PSI
• Voltage: 220V/60 Hz/Single-Phase (200 to 240V range)
• Amperage: 24 Amps
• Time to fill tank from empty to full: 3:56 minutes
• Recovery time from 90 PSI to 120 PSI: 57 seconds
• Duty Cycle: 70/30
• Tank Capacity: 80-gallon steel air tank (ASME certified)
• Weight: 360 lbs
• Dimensions (LxWxH): 23.5" x 21.0 x 66"
• Warranty: 1-year limited
• ASME Certified for Commercial Use
• Commercial Use: Refer to State & City Codes

Extra Details

Includes:

• Main tank pressure gauge
• Female air output port with ball valve (1/2" NPT)
• Condor Pressure Switch
• Less heat which dissipates more efficiently
• Comes complete with (8) Air Filters and (8) Air In-Take Tubes
• Plug Type: Nema L6-30P (fits Nema L6-30P outlet / receptacle)
• Power Cord Length: 7-ft

NOTE:

• No output pressure regulator, quick connector or air hose included!

Extras

The optional EZ2321ADL Automatic Drain Valve Long Extension Kit is recommended, and is designed to eliminate manually draining water and condensate from air compressor air tanks. Easy to install, and all adapters and connectors are included in the kit.
