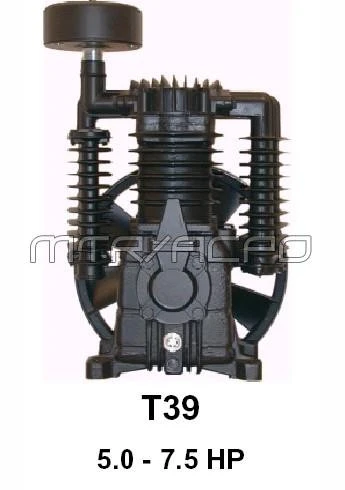

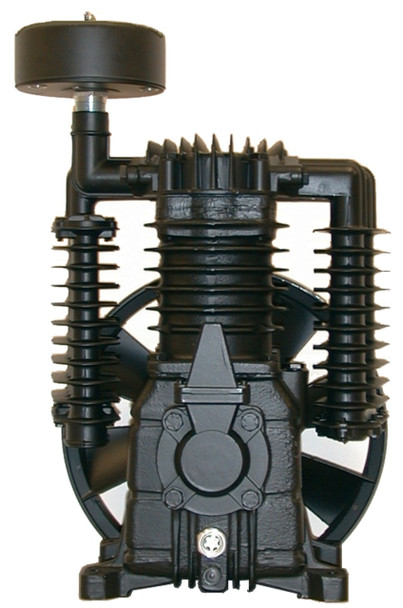

T39 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 5 - 7.5 HP #048AB8

T39 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 5 - 7.5 HP. Includes the intercooler, flywheel, air filter assembly, and intercooler safety valve.

Important: Must ship by truck.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP Rating: 5 to 7.5 HP
• Stages: Two-Stage
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 22.8 CFM @ 175 PSI (7.5 HP) / 16.60 CFM @ 175 PSI (5 HP)
• Max PSI: 175 PSI
• Material of Construction: cast iron with steel sleeves
• Flywheel: 15" OD / twin "A" groove
• RPM Range: 700 / 1,400
• Oil Capacity: 1.25 qt.
• Weight: 75 lbs.
• Bore & Stroke: 4.13" x 2.95" (LP) / 2.05" x 2.95" (HP)
• Dimensions (LxWxH): 15" x 13.46" x 23"
• Bolt Pattern: 6.57" (front-to-back) / 9.25" (side-to-side)
• Outlet: 3/4" FPT
• Warranty: 1 year limited
