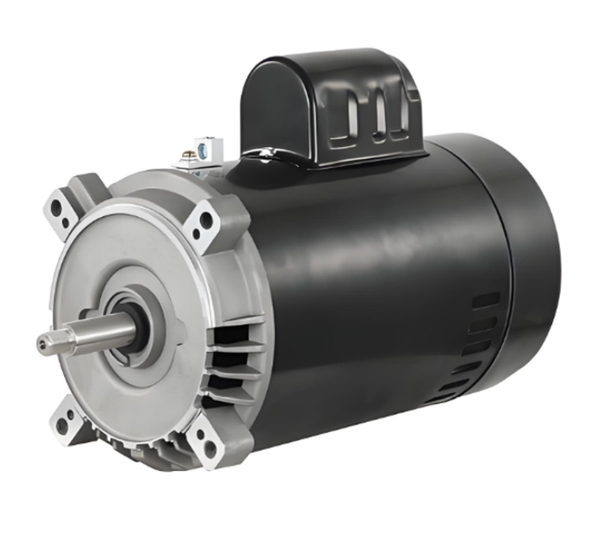

2 HP Round Flanged Pool Pump Electric Motor, 115/230 Volts, Single-Phase, 3,450 RPM #116722
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
The DP120256JA is a 2 HP Round Flanged Pool Pump Motor that delivers strong, reliable performance as a direct substitute for the Century UST1202 pool pump motors.
This high‑performance motor features rugged ball bearings and a corrosion‑resistant stainless steel shaft, providing long‑lasting reliability and smooth, efficient operation season after season.
Specifications
- Model: DP120256JA
- Equivalent To: Century UST1202
- Power: 2 HP
- Voltage: 115/230 VAC
- Phase: 1
- Frequency: 60 Hz
- Amperage: 18.6/9.3
- SFA: 20.0/10.0
- Speed: 3,450 RPM
- Capacitor Run: Yes
- Rotation: CCW (facing the shaft)
- Service Factor: 1.1
- Thermal Overload Protection: Yes
- Enclosure: ODP
- Insulation Class: F
- Frame: 56J
- Shaft: Round Flange, 7/16"-20 UNF-2A, RH threaded 11/16" from end
- Shaft Material: 303 Stainless Steel
- Capacitor-Start/Run
- Weight: 30.9 lbs
- Warranty: 1-Year Limited
