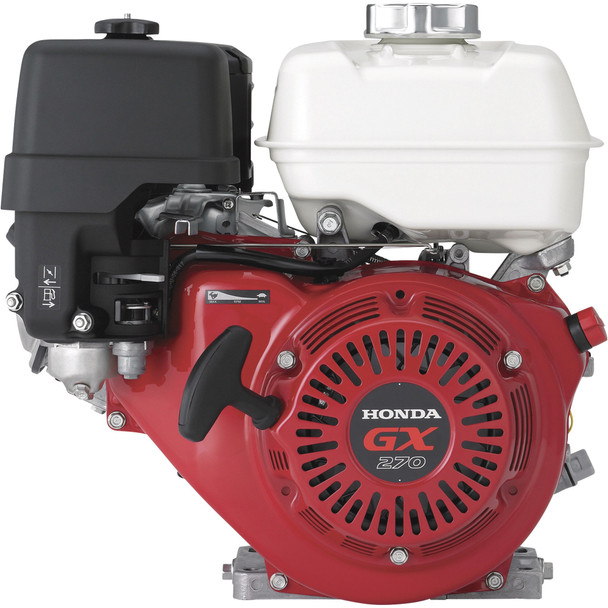

9 HP Honda GX270™ OHV Engine, GX270UT2QAG2 #08008E
- Shipping:
- Calculated at Checkout
Description
The Honda 270cc GX Series OHV commercial-grade engine is designed for the most demanding applications. It is famously reliable, with proven durability and longevity. With an overhead valve design for cooler, fuel-efficient operation and a cast iron cylinder sleeve for longer service life, the Honda GX270 will start easily every time, and give you the power you need to get the job done.
The Honda GX series engines are the choice for commercial-duty air compressors for the home builder, framer, roofer, and countless other outdoor power equipment machines. Other common applications include pressure washers, go-karts, log splitters and chipper/shredders.
Specifications
GX270 |
|
|---|---|
| Engine Type | Air-cooled 4-stroke OHV |
| Bore x Stroke | 77 X 58 mm |
| Displacement | 270 cm3 |
| Net Power Output* | 8.4 hp (6.3 kW) @ 3,600 rpm |
| Net Torque | 14.1 lb-ft (19.1 Nm) @ 2,500 rpm |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Output Shaft | 1.0" x 3-31/64" Horizontal Shaft |
| Compression Ratio | 8.5:1 |
| Lamp/Charge coil options | 25W, 50W / 1A, 3A, 10A, 18A |
| Carburetor | Butterfly Float Type |
| Ignition System | Digital CDI with variable ignition timing |
| Starting System | Recoil/electric |
| Lubrication System | Splash |
| Governor System | Centrifugal Mass Type |
| Air Cleaner | Dual element |
| Oil Capacity | 1.16 US qt (1.1 L) |
| Fuel Tank Capacity | 5.6 U.S. qts (5.3 liters) |
| Fuel | Unleaded 86 octane or higher |
| Dry Weight | 55 lb (25 kg) |
| Bolt Circle | 5.00" x 6-1/2" |
| Mounting Base | 7-11/16" x 3-3/16" – 3 11/16" |
Extra Details
Fuel Efficient, High Output Operation
- Digital CDI ignition system with variable timing Learn More
- Increased compression ratio
- Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
- OHV design for increased efficiency and optimal power transfer
Smooth Performance
- Precision engineered components result in lower vibration
- Ball bearing supported crankshaft for greater stability
- Heavy duty balancer shaft
- Improved piston design
Exceptionally Quiet
- Large capacity, multi-chamber exhaust system
- Improved camshaft and muffler reduce overall engine noise by up to 5 dB
- Reduced mechanical noise due to piston design
- Forged steel crankshaft and rigid crankcase
- Helical cut gears
- Sophisticated air intake system
Proven Reliability
- Oil Alert Learn More
- Cast iron cylinder sleeve
- High quality materials, fit, and finish
- Dual element air cleaner
- Fuel Valve
- 3-Year Limited Warranty
Easy To Use And Maintain
- Simple throttle control
- Large fuel tanks
- Large automotive type fuel cap
- Dual oil drains and fill
- Easy, convenient, heavy duty control box
- Easily accessible spark plug
Easy Starting
- Heavy duty recoil starter
- Automatic mechanical de-compression system Learn More
- Variable ignition timing
Emissions Compliant
- EPA certified
- No catalyst necessary
