462 pump, 462TV pump, 462TVX pump #01B076
Loading Schematic
Model Numbers: 462 pump, 462TV pump, 462TVX pump
Repair Parts for the Kellogg model 462, 462TV, 462TVX Two-Stage Oil-Bath Reciprocating Air Compressor Pump
Specifications
- 81.5 cfm @ 175 psi
- Slow speed (775) RPM
- Steel rods w/ automotive type inserts and needle bearings
- Positive ring fed lubrication
- Centrifugal unloading
- Head Unloading
- Oil capacity 6 qts.
Click here for pump dimensions and specs
Manuals
Click here to order and download the Kellogg Pump Owner's Manual
Technical Documents
Torque Specifications:
Head To Cylinder - 40 ft/lbs
L.P. Valve Hold Down Cover - 15 ft/lbs
H.P. Valve Hold Down Cover - 8 ft/lbs
Cylinder To Base Bolts - 43 ft/lbs
End Cover Bolts - 20 ft/lbs
Flywheel Bolts - 43 ft/lbs
Connecting Rod Bolts - 90 ft/lbs
Cylinder Head Plate Bolts - 40 ft/lbs
Side Plate Bolts - 5 ft/lbs
Intercooler & Aftercooler Bolts - 10 ft/lbs
-
Air Filter Element #0195E2
Price: $35.92Polyester air filter element for air compressors. Found on many larger units and older units. Fits the S1097 & 1312100375 filter assemblies. .5 micron up to 6,600 SCFMPrice: $35.92
Kellogg 462 Pump Gasket, Metal Type Exhaust Flange #01936A
Price: $17.61Old Part Numbers: 38602High-temperature exhaust flange gasket. Use only if standard exhaust flange gasket keeps blowing out. NOTE: coat each gasket with a thin layer of Loctite on each side of the...Price: $17.61
Kellogg Air Compressor Pump Centrifugal Release Valve Repair Kit #018762
Price: $48.02Repairs centrifugal release valve on Kellogg air compressor pump models: 321, 325, 331, 352, and 462 pumps. If you need more parts, then go to the individual pump pages to order the complete assembly.Price: $48.02
Oil Site Glass 1", 300 PSI, High-Pressure (HP) P-1030-5 #019587
Price: $21.09Old Part Numbers: CK48047, 032-0127Oil sight glass (metal and glass). Measures 1" inch MPT (actual Outside Diameter (OD) measurement is 1-1/4"). Max 300 PSI. Used on larger commercial-grade air...Price: $21.09
Kellogg 462 Air Compressor Pump Gasket Kit, 79451 #0E5895
Price: $142.13Old Part Numbers: K462GKComplete gasket kit for your Kellogg two-stage, v-twin 462 model air compressor pump. Includes all gaskets, including the oil seal. If the compressor pump doesn't seem to...Price: $142.13
Kellogg Generic Intercooler Assembly, 352/462 #01935C
Price: $793.92Old Part Numbers: 38598, 631-38598-JENOTE: Order quantity of 2 for a complete set.Price: $793.92
Kellogg Valve Tool Kit (Set of 4) #018742
Price: $206.75Old Part Numbers: 16868, 16869, 16870, 17867Set of 4. Fits models 141, 211, 321, 331, 351 and 461. You will need these to replace your valves. Damage will occur using home made tools to do this job.Price: $206.75
Kellogg 462 Air Compressor Pump Rebuild Kit #116263
Price: $1,535.66Old Part Numbers: K462RBKThis rebuild kit includes everything you need to rebuild your 462 Pump from top to bottom: all valves (LP & HP), rings (LP & HP), gaskets, bearing inserts, and two air filter...Price: $1,535.66
Kellogg Unloader Plunger #01876A
Price: $36.86Old Part Numbers: 45163Air compressor unloader plunger. OEM part 45163.Price: $36.86
Ring Set, Kellogg 462 Pump #116336
Price: $158.83Old Part Numbers: K462RK, R3525, 39338Complete ring set for Kellogg 462 air compressor pump. Includes rings for 2 LP pistons and 2 HP pistons.Price: $158.83
Price: $42.12
Kellogg 462 Air Compressor Pump Valve Kit #019798
Price: $1,092.25Complete Valve Kit for the Kellogg 462 v-twin pump. Includes complete valve set, copper gaskets, and o-rings. If air leaks out of the intake filter or if the compressor just isn't performing like it...Price: $1,092.25
Kellogg 462 Pump Aftercooler Assembly, 38920 #019520
Price: $649.44Old Part Numbers: CK38920Kellogg 462 air compressor pump aftercooler assembly, 38920. Replace the aftercooler if kinked or damaged, or if it's missing cooling fins. Order gaskets separately.Price: $649.44
Kellogg Wrist Pin Bushing #018768
Price: $21.92Old Part Numbers: 45211Air compressor wrist pin bushing (bearing) for the connecting rod. OEM part 45211.Price: $21.92On Sale

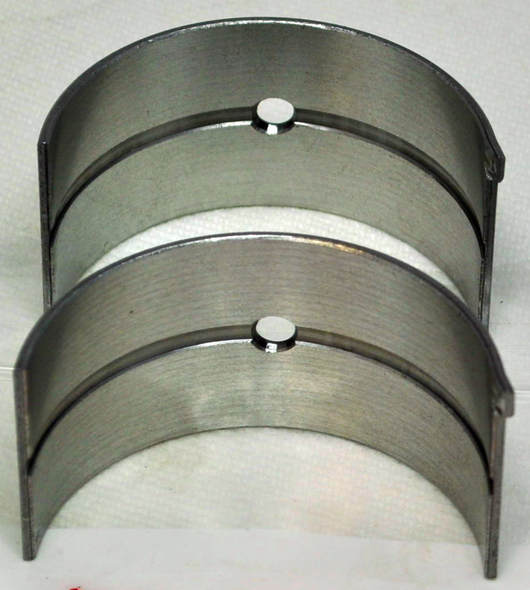

Insert Bearings, Kellogg 462TV Pump (1 Pair) #116335
Now: $49.99Was: $57.36Old Part Numbers: R3565, 37130Rod Inserts for Kellogg 462TV/462TVX air compressor pump. Note: Qty. 1 = bearings for one rod.Now: $49.99Was: $57.36
Kellogg 352 / 462 Cylinder Head #019540
Price: $683.10Old Part Numbers: 38595Bare cylinder head for air compressors. Does not include gaskets or valves.Price: $683.10
Kellogg 352 / 462 Piston, Low-Pressure (LP) #019568
Price: $256.18Old Part Numbers: 39111Low-pressure (larger of the two) piston for air compressors. Note: Does not include rings or piston pin.Price: $256.18
Kellogg 352 / 462 Pump Wrist Pin, High-Pressure (HP) #019552
Price: $48.22Old Part Numbers: 38895Wrist pin for the smaller, high-pressure (HP) air compressor pump piston.Price: $48.22
Price: $149.69
8 Screw Set Valve Hold Down, 352/462 Pumps #01957F
Price: $26.64Old Part Numbers: K4365Screw Set (2ea.), Valve Hold Down, 352/462. For 462 pump, order qty 2.Price: $26.64
Bearing Cup & Cone Set, 352/462 Pumps #116391
Price: $199.59Cone Bearing & Cup for crankshaft (includes one each of Bearing & Cone).Price: $199.59
Cone Bearing, 352 / 462/ T Pumps #0587DA
Price: $110.63Cone bearing for air compressor crankshaft. Also available in the CK37107-CK37108 kit.Price: $110.63
Cup-TMK 28622, Bearing, 37107 #0187E6
Price: $88.96Old Part Numbers: 37107, CK37107This is the bearing cup only, cone bearing not included. Also available in the CK37107-CK37108 kit, which includes the cone bearing and cup.Price: $88.96
Flywheel Assembly, Kellogg 352/462 Pump #01A0FE
Price: $1,634.79Old Part Numbers: 3859325.25" OD flywheel, 4-groove. Fits 352/462 air compressor pump. 25 HP. Includes flywheel, bolt, washer, and nut.Price: $1,634.79On Sale
Kellogg 352 / 462 Pump LP Wrist Pin, 38896 #019558
Now: $66.60Was: $83.25Old Part Numbers: CK38896Wrist pin for the larger (Low Pressure) piston in a Kellogg 352/462 air compressor pump.Now: $66.60Was: $83.25
Price: $278.35
Price: $820.51
Kellogg 462 Pump Connecting Rod Assembly #019572
Price: $216.01Old Part Numbers: 38909Kellogg 462 air compressor pump connecting rod assembly with bearing inserts for the LP & HP banks.Price: $216.01
Kellogg 462 Pump Crankshaft Assy w/ CC, 83622 #0E576D
Price: $1,082.53Crankshaft for 462 Pump (includes end bearings, cup bearings).Price: $1,082.53
Kellogg 462 Pump Oil Feeder Ring, 37104 #01A102
Price: $215.76Old Part Numbers: CK37104, 37104Kellogg 462 air compressor pump oil feeder ring, 37104. This important component feeds oil to the shaft bearings. Replace if the pump is bogging down or squealing to...Price: $215.76On Sale
New Kellogg 462TVX Replacement Pump, Complete Assembly, 15 - 25 HP #01871A
Now: $5,154.69Was: $5,815.97R462-HU Kellogg style pump (with head unloader option). Can be used for both gas/electric constant run or electric start/stop. Complete with flywheel and air filter assemblies. Delivers 81.5 CFM @...Now: $5,154.69Was: $5,815.97
Price: $21.92
Price: $101.04
