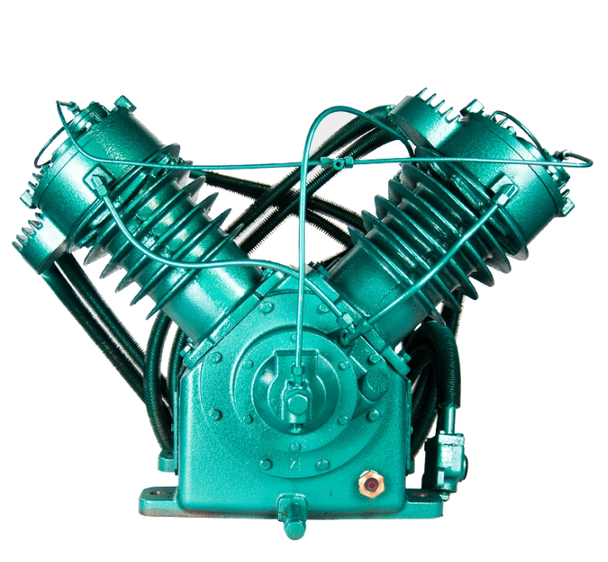

New Kellogg 462TVX Replacement Pump, Complete Assembly, 15 - 25 HP #01871A
(No reviews yet)
Write a Review
- Shipping:
- Calculated at Checkout
Description

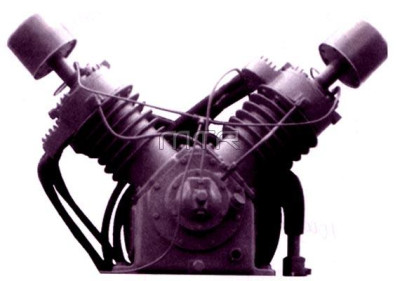

R462-HU Kellogg style pump (with head unloader option). Can be used for both gas/electric constant run or electric start/stop. Complete with flywheel and air filter assemblies.
- Delivers 81.5 CFM @ 175 PSI (25 HP)
- For 15-25 HP Motors Large Frame Motors
- Cast-iron Construction
- Slow speed (775 RPM)
- Steel Rods with Automotive Type Inserts and Needle Bearings at Wrist Pins
- Positive ring fed lubrication
- Centrifugal unloading
- Head unloading
Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.
Specifications
| 1 or 2 stage | 2 |
|---|---|
| Head unloaders | Yes |
| Motor HP Min | 15 |
| Max Pressure | 175 |
| CFM | 81.5 CFM @ 175 PSI (25 HP) |
| Oil Bath/Oil Free | OIl Bath |
| Bore | 5 1/2" x 3" |
| Stroke | 5" |
| Flywheel size | 25 1/4" |
| Pump material | Cast Iron |
| RPM Min/Max | 465/775 |
| Pump Weight | 827 |
| Dimensions L W H | 31" x 16" x 34" |
| Footprint | 10" F-B, 16" S-S |
| Warranty | 1 year |
| Truck Only? | Yes |
Extra Details
Warranty Terms:
- Ship the pump in to the manufacturer. It will be disassembled and repaired. Customer will be responsible for ALL shipping costs and labor involved with the repair.
- Customer can choose to break the pump down, diagnose the problem and repair it. Customer pays for shipping of the required repair parts.
- Customer can purchase another pump and send the damaged pump back for repair. Once it’s repaired, the manufacturer will ship it back to the customer. The customer is responsible for ALL shipping costs.
